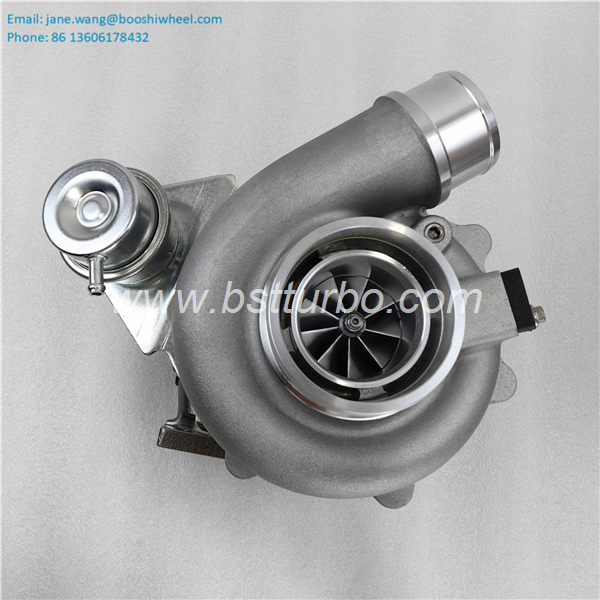

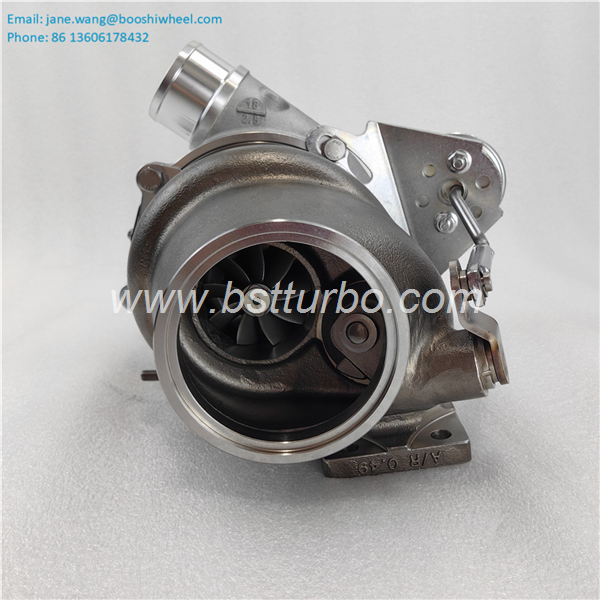

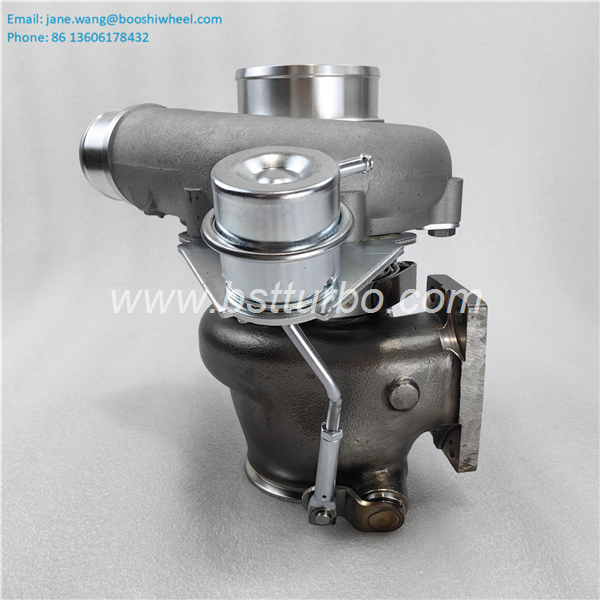

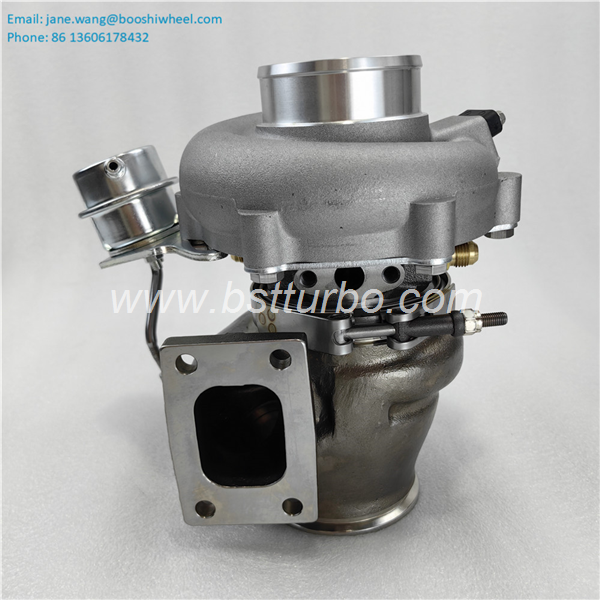

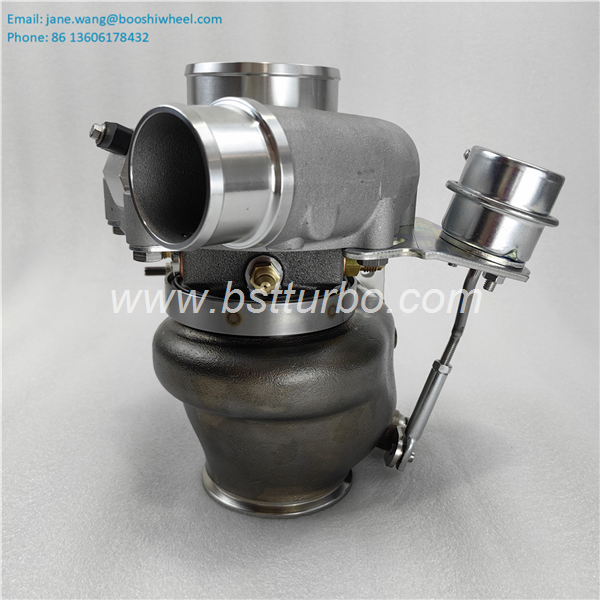

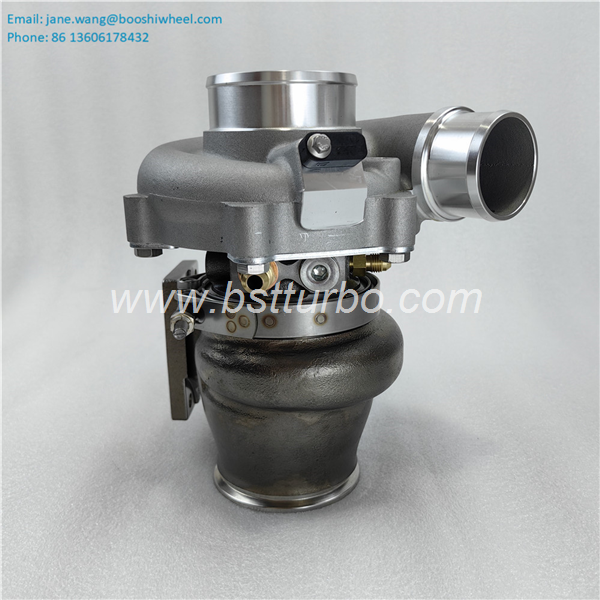

G25-660 Turbo Ball Bearing 858161-5003S 877895-5001S New Condition Standard Rotation with Wastegate T25 AR 0.49 Stainless steel turbine housing G25 660

Product description:

Turbo Model : G25-660 T25

Part Number : 877895-5002S

Brand Name : Booshiwheel

Displacement : 1.4 - 3.0 L

KW : 300 - 660 HP

标签 : Turbo

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

G25-660	Compressor				Turbine
G25-660	Inducer	Exducer	Trim	A/R	Inducer	Exducer	Trim
HP: 350-660 Disp: 1.4L-3.0L	54mm	67mm	65	.70	54mm	49mm	84
Turbo: Standard Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
Assembled and calibrated with 0.5 bar actuator	877895-5002S		0.49	T25	V-Band	Internal	N
	877895-5005S		0.72	V-Band	V-Band	Internal	N
	877895-5006S		0.92	V-Band	V-Band	Internal	N
	Turbo: Reverse Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
See note above	877895-5009S		0.72	V-Band	V-Band	Internal	N
	877895-5010S		0.92	V-Band	V-Band	Internal	N
	Turbine Kits Standard Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
	Internal Wastegate Turbine Housing	740902-0076		0.72	V-Band	V-Band	Internal	N
740902-0077		0.92	V-Band	V-Band	Internal	N
740902-0080		0.49	T25	V-Band	Internal	N
Turbine Kits Reverse Rotation		PN		A/R	Inlet	Outlet	Wastegate	Divided
Internal Wastegate Turbine Housing		740902-0078		0.72	V-Band	V-Band	Internal	N
		740902-0079		0.92	V-Band	V-Band	Internal	N
	Supercore	PN
	Standard Rotation	858161-5003S
Reverse Rotation	871388-5002S
Turbine Kits Standard Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
Free Float Turbine Housing	740902-0069		0.72	V-Band	V-Band	External	N
	740902-0068		0.92	V-Band	V-Band	External	N
	Turbine Kits Reverse Rotation	PN		A/R	Inlet	Outlet	Wastegate	Divided
	Free Float Turbine Housing	740902-0073		0.72	V-Band	V-Band	External	N
740902-0074		0.92	V-Band	V-Band	External	N
