  • Genuine Garrett G30-770 standard rotation turbo AR 0.83 with wastegate V-Band 880704-5005S G30 770

Genuine Garrett G30-770 standard rotation turbo AR 0.83 with wastegate V-Band 880704-5005S G30 770

Product description:

Turbo Model : G30-770

Fuel : Diesel

Part Number : 880704-5005S

Brand Name : Booshiwheel

Engine Manufacturer : Garrett

Displacement : 2.0 - 3.5L

OE number : G30-770

标签 : Turbocharger

Welcome to contact us :



Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Web Site: https://wuxibswe.en.alibaba.com

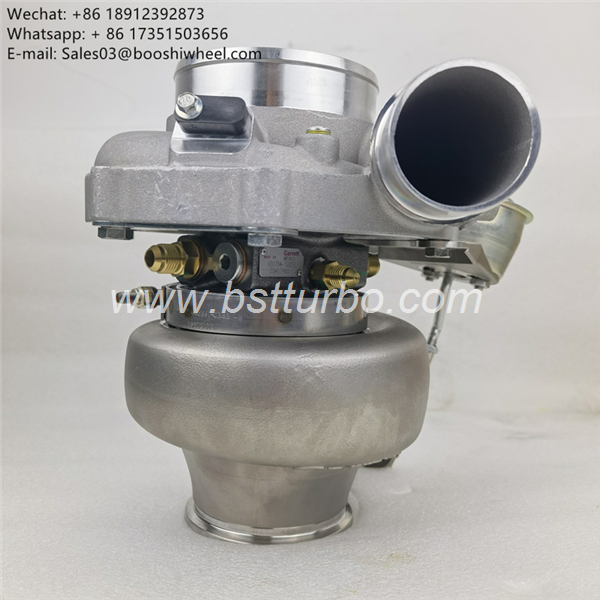

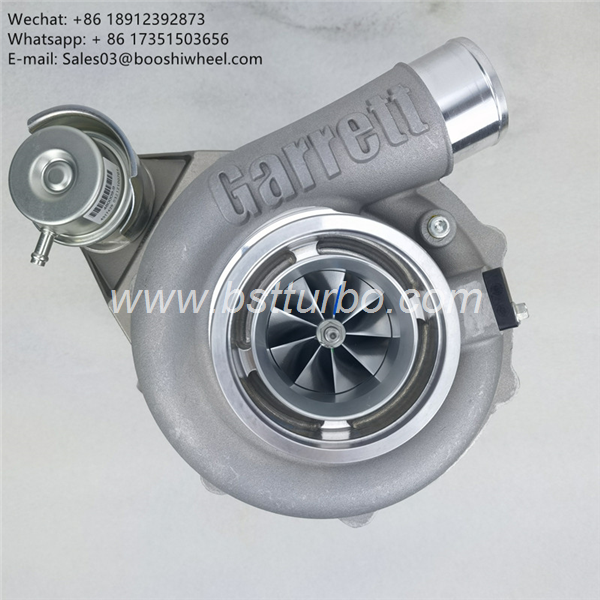

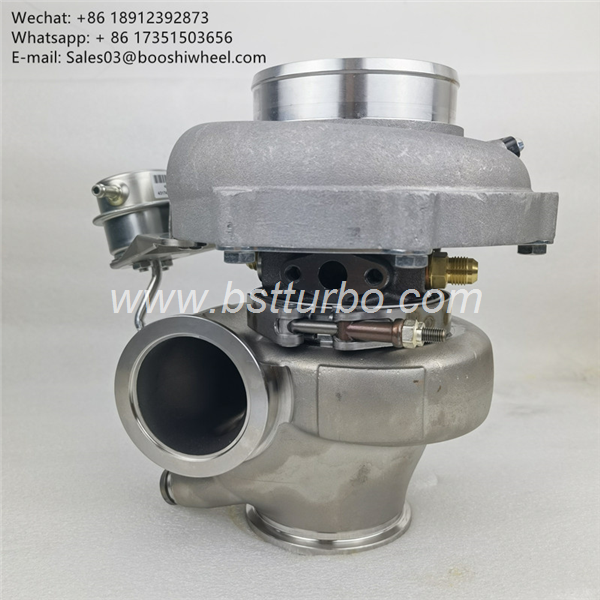

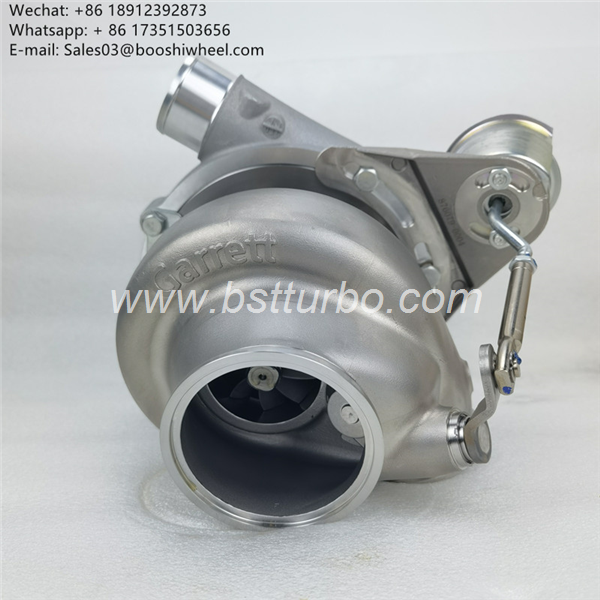

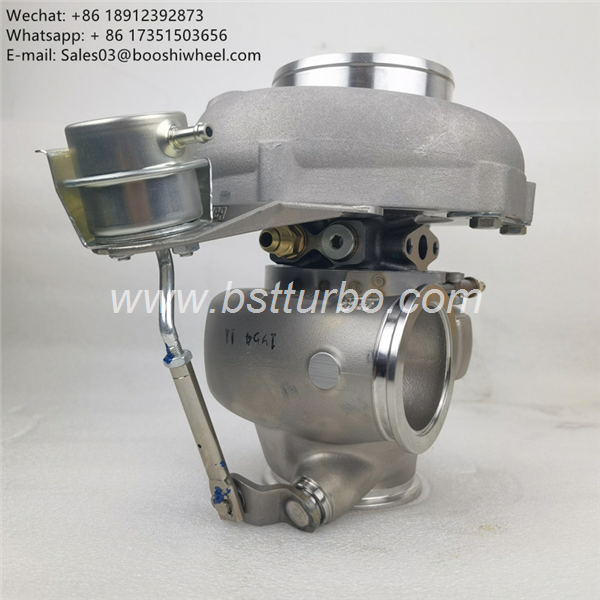

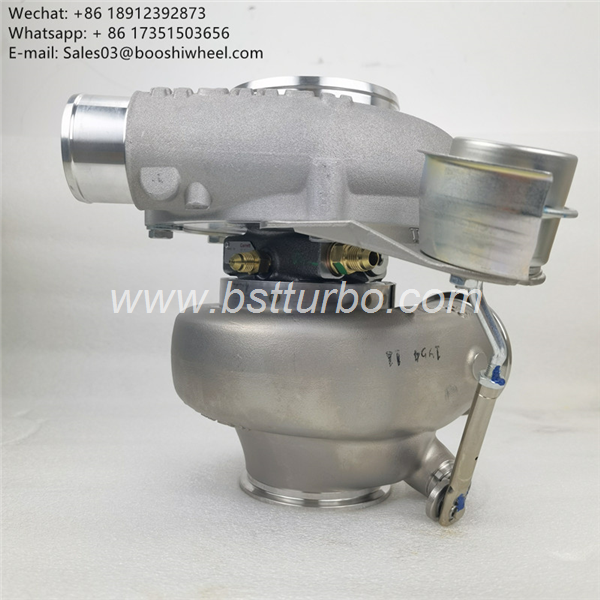

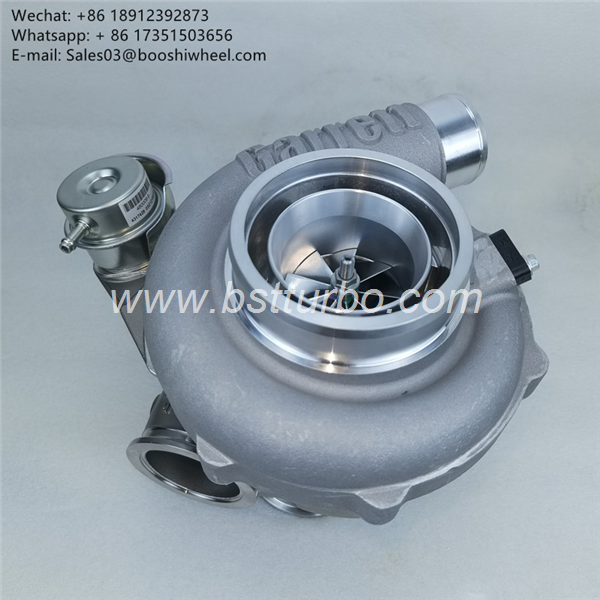

Genuine Garrett G30-770 standard rotation turbo AR 0.83 with wastegate V-Band 880704-5005S G30 770

Applications Products Show

G30-770 0.83 V-brand(3).jpgG30-770 0.83 V-brand(1).jpgG30-770 0.83 V-brand(2)G30-770 0.83 V-brand(4)G30-770 0.83 V-brand(5)G30-770 0.83 V-brand(6)G30-770 0.83 V-brand(7)

Specification



PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 58mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 4 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .72
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
Includes Turbine Housing Inlet & Outlet V-Band Clamps
Applicable Product Code(s): 880704-5005S
