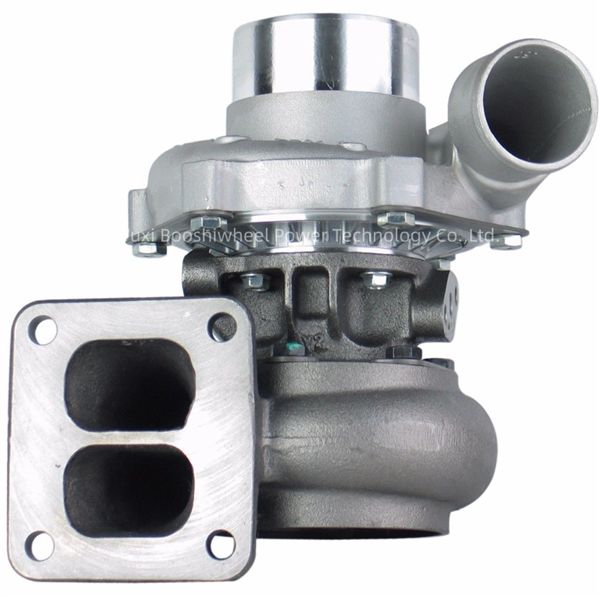

T04B59 Turbocharger 465044-0251 465044-0051 6207-81-8210 318100 for Engine S6D95L

Product description:

Turbo Model : T04B59

Fuel : Diesel

Part Number : 465044-0251

Brand Name : Booshiwheel

现价 : 265

Displacement : 4.89L, 4890 ccm

KW : 110/147 HP

RPM Max : 3000

OE number : 6207818210 6207-81-8210

Year : 1991-04

Manufacturer Part Number : 1080245R 312875 312875R 465044-0051 465044-0151

Applications : 1991-04 Komatsu Earth Moving PC220-5 With S6D95L, S6D95 Engine

标签 : S6D95L

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 465044-0251

Previous Version 1080245R 312875 312875R 465044-0051 465044-0151

OE number 6207818210 6207-81-8210

Description Earth Moving PC220-5

Manufacturer Part Number 318100

CHRA 447450-0084 (408105-5138S, 408105-0390, 408105-0173, 447450-0084, 312377A) $300.00 NEW IN STOCK, MADE IN USA

Turbo Model T04B59

Engine S6D95L

Displacement 4.89L, 4890 ccm

KW 110/147 HP

RPM 3000

Fuel Diesel

Angle α (compressor housing) 300º

Angle β (turbine housing) 270º

Bearing Housing 407285-0027 (430027-0025, 430027-0048, 312379, 430027-0022, 407285-0038, 407285-0064)(Oil Cooled) $69.00 NEW IN STOCK

Turbine Wheel 451309-0002 (446249-0004, 446905-0001, 451309-0002, 317640, 410188-0014, 410188-0005, 407276-0005)(Ind. 74.29 mm, Exd. 58.29 mm, Trm 10.16, 11 Blades)(1100-030-024) $105.00 NEW IN STOCK

Comp. Wheel 409179-0026 (Ind. 43.71 mm, Exd. 69.95 mm, Trm 5.53, 8+8 Blades, Superback)(R58609) $42.00 NEW IN STOCK

Back plate 408045-0035 (408045-0051, 408045-0034, 311708, 312576) $40.00 NEW IN STOCK

Heat Shield 409299-0001 (311607) $15.70 NEW IN STOCK

Repair Kit 468100-0000 (3524796, 168984, 310063, 188006-0000)(1100040760, 5000010041) $69.60 NEW IN STOCK

Turbine Housing 410401-0024

Compressor Cover N/A

Gasket Kit (2090505104)

Turbine Housing AR 0.70

Gasket (turbine inlet) 310694 (407294-0001) $8.20

Gasket (oil outlet) 311496 (210021, 3519807, 413671-0000, 409037-0000)(1900000027)

Gasket (oil inlet) 147837 (210023, 55739, 3755739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 210023-0000)(1900000037)

NOTE Complete replacement turbo. Internal parts not interchangeable

Manufacturer Honeywell-Garrett

Applications

1991-04 Komatsu Earth Moving PC220-5 With S6D95L, S6D95 Engine
