  • G25-550 858161-5002S 871389-5005S Honeywell Garrett turbo for G Series Dual Ball Bearing 92AR V-Band Turbine Housing

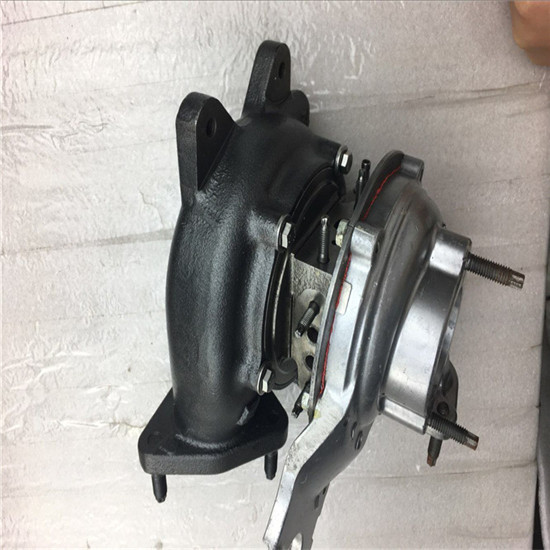

G25-550 858161-5002S 871389-5005S Honeywell Garrett turbo for G Series Dual Ball Bearing 92AR V-Band Turbine Housing

Product description:

Turbo Model : G25-550

Part Number : 858161-5002S

Brand Name : Booshiwheel

OE number : 871389-5005S

Manufacturer Part Number : 871389-5005S

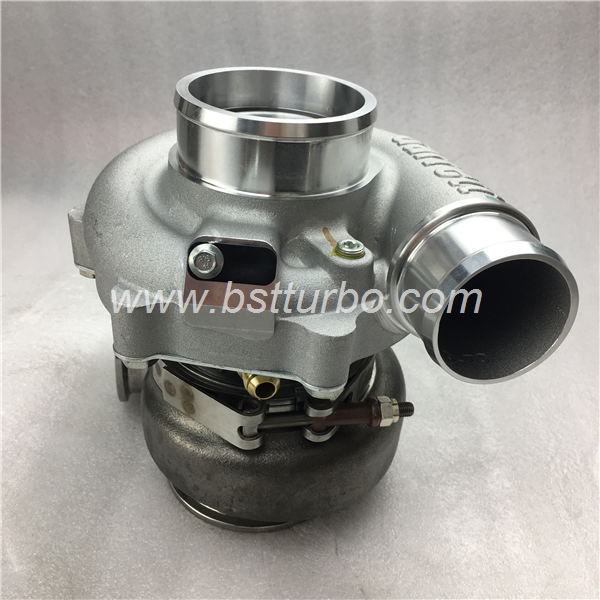

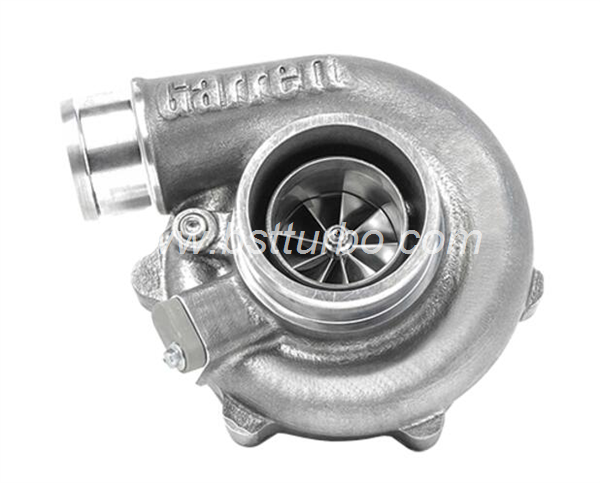

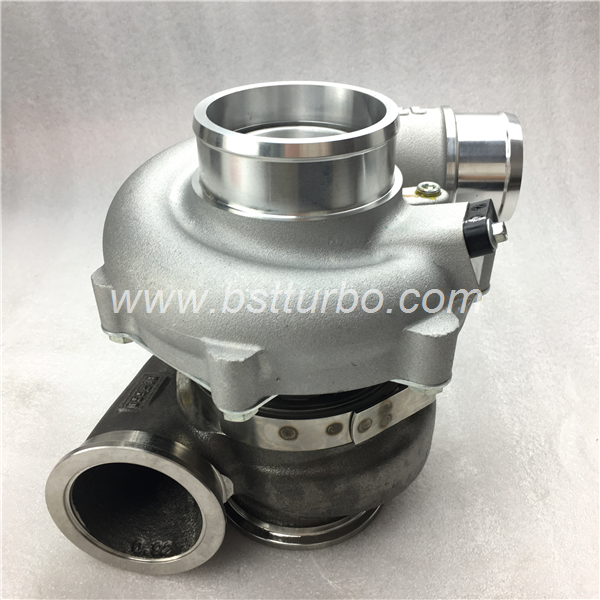

Garrett G25-550 G Series Dual Ball Bearing Turbocharger w- .92AR V-Band Turbine Housing



PRODUCT DESCRIPTION
The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger;

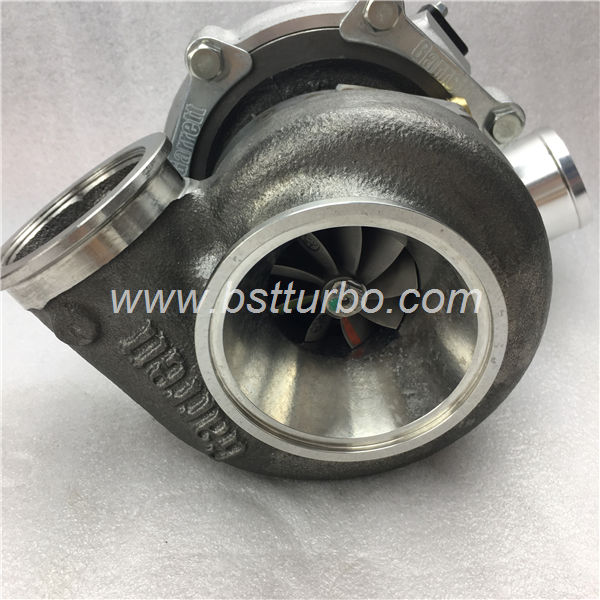

including a Garrett stainless steel V-Band Inlet & V-Band Outlet .92 A/R turbine housing (Garrett Part #871389-5005S). 550HP from a small frame package!

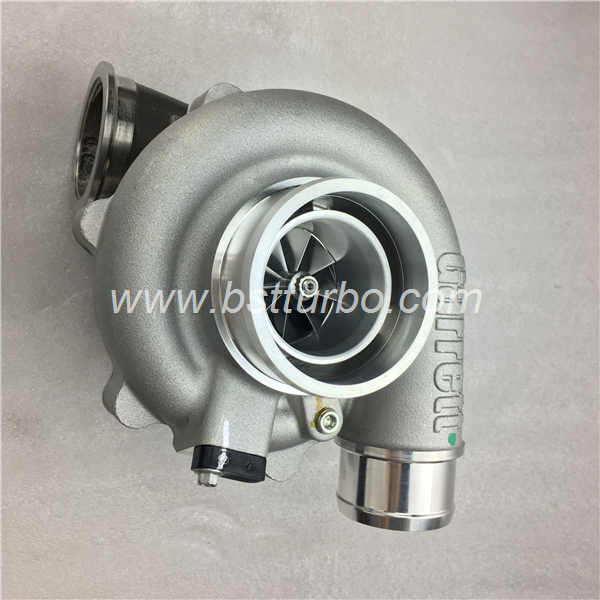

Ultra High Flow G-Series Compressor Wheel
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings

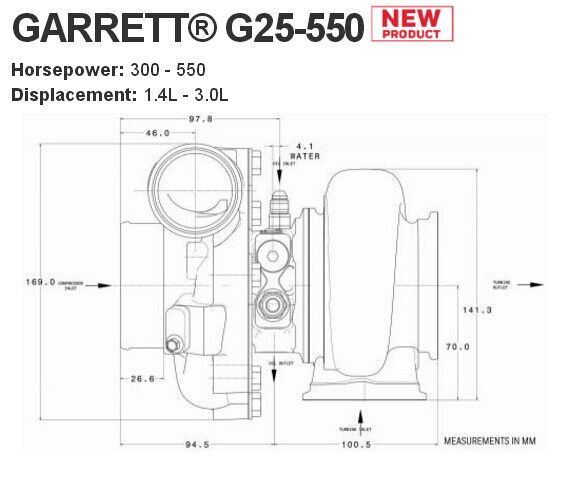

PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN

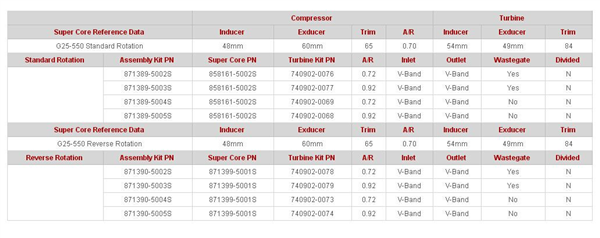

Alternate Garrett Product Code(s): 858161-5002S; 740902-0068
