  • Top Quality Garrett Powermax G25-660 898200-5001W Turbo Charger Stage 2 Upgrade S3 2.0 2014

Top Quality Garrett Powermax G25-660 898200-5001W Turbo Charger Stage 2 Upgrade S3 2.0 2014

Product description:

Turbo Model : G25-660 898200-5001W

Fuel : Diesel

Part Number : 898200-5001W

Brand Name : Booshiwheel

OE number : G25-660

标签 : Turbocharger

Welcome to contact us :



Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Web Site: https://wuxibswe.en.alibaba.com



Top Quality Garrett Powermax G25-660 898200-5001W Turbo Charger Stage 2 Upgrade S3 2.0 2014

Applications Products Show

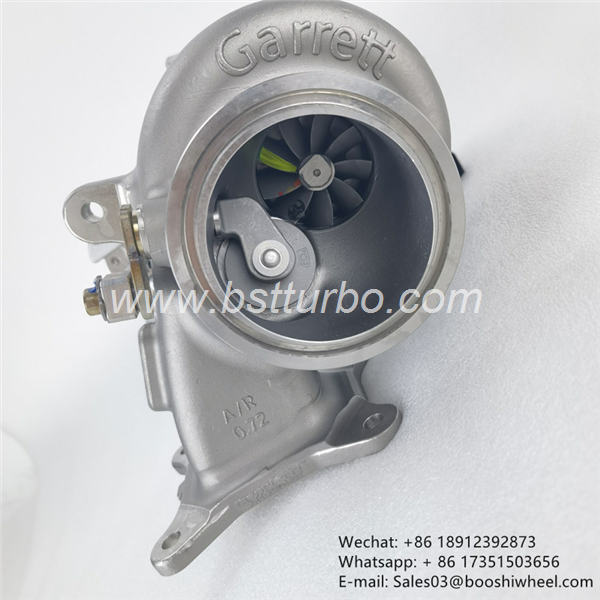

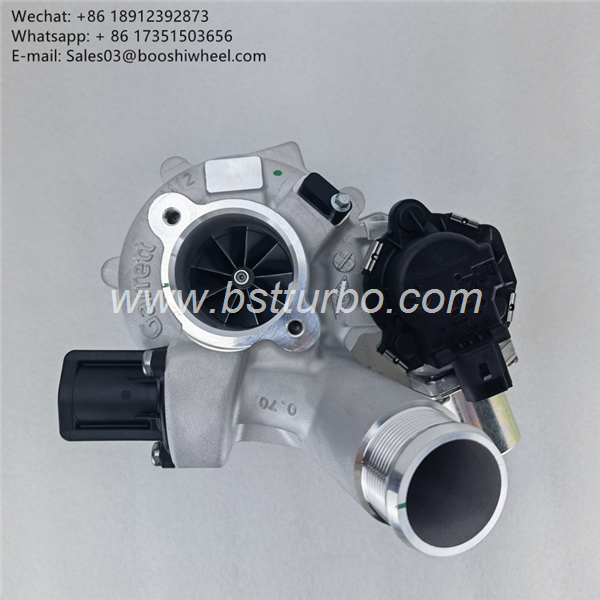

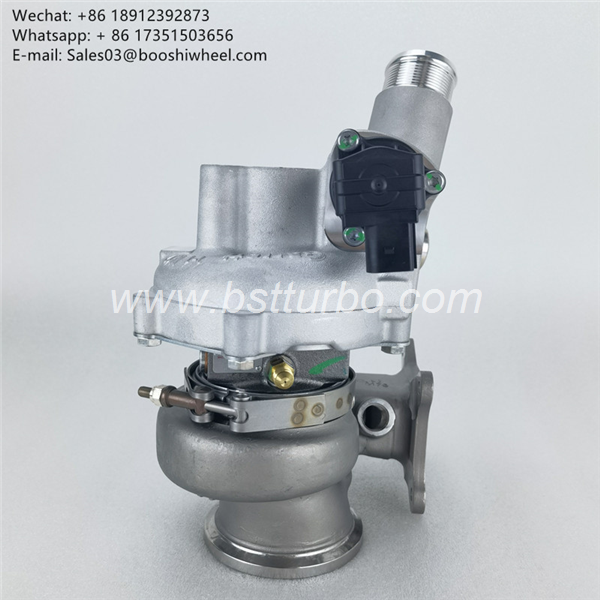

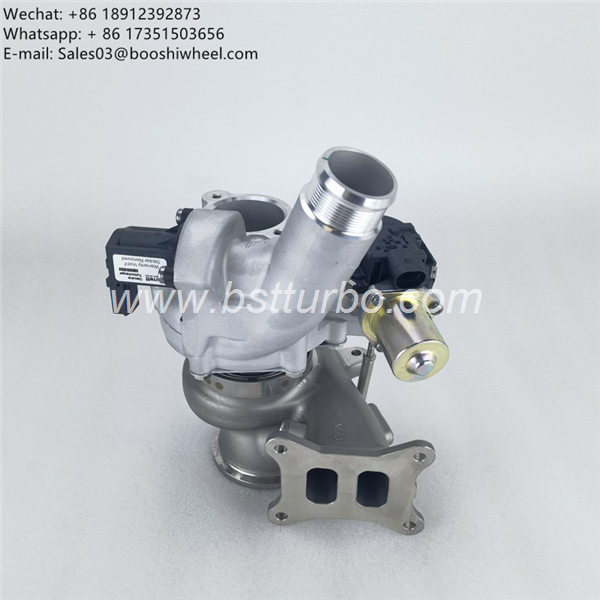

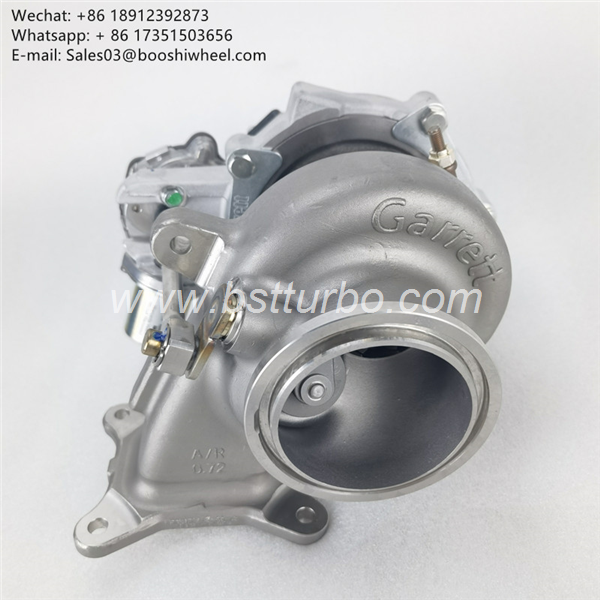

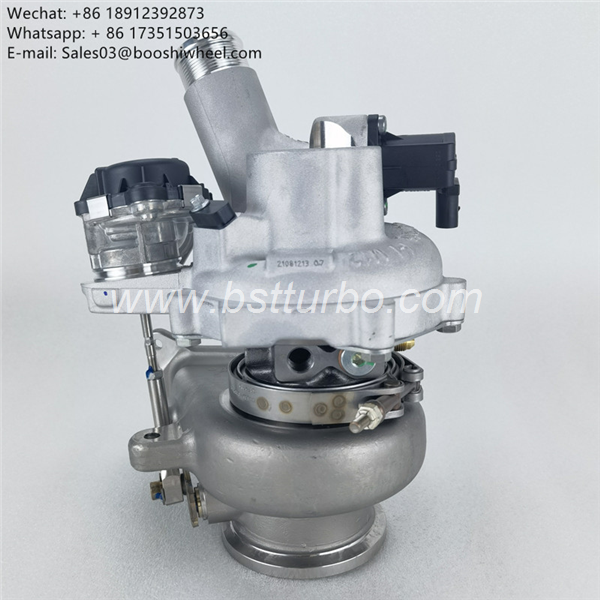

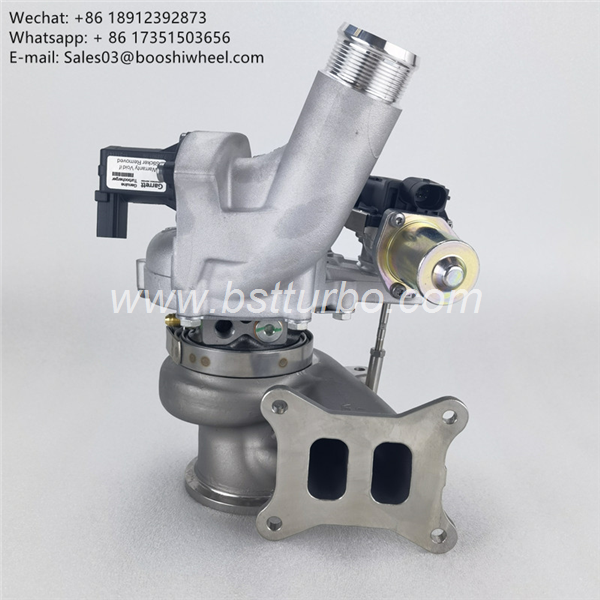

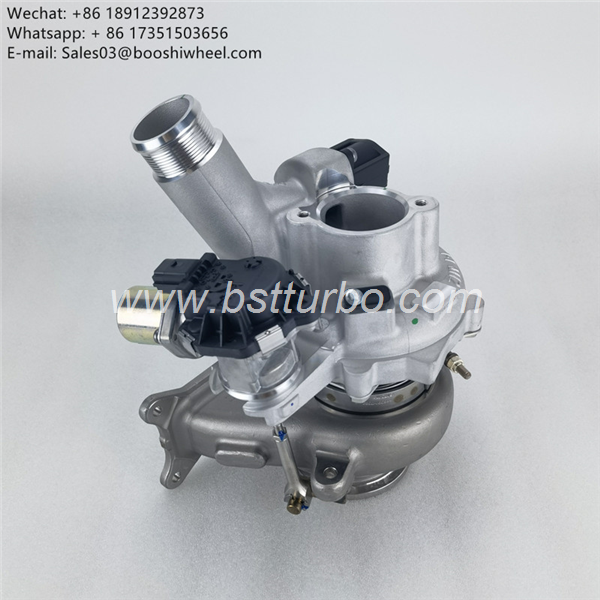

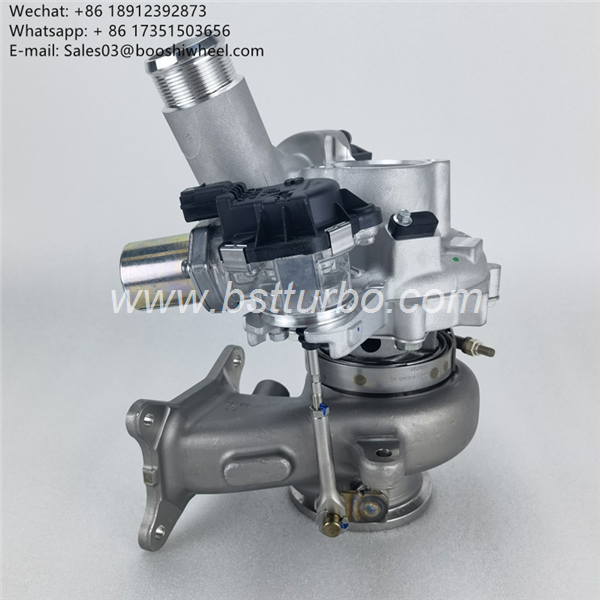

G25-660 Max(2).jpgG25-660 Max(1).jpgG25-660 Max(3)G25-660 Max(4)G25-660 Max(5)G25-660 Max(6)G25-660 Max(7)G25-660 Max(8)G25-660 Max(9)G25-660 Max(10)G25-660 Max(11)G25-660 Max(12)G25-660 Max(13)G25-660 Max(14)G25-660 Max(15)



Specification

POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGERS

Garrett PowerMax™ turbocharger upgrades for the Volkswagen and Audi MK7 2.0L TSI engine platform

is engineered to increase engine performance while maintaining OEM installation specifications. Stage

1 (485 FWHP*) and Stage 2 (600 FWHP*) upgrades maximize efficiency and air flow compared to the OEM

turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings

are rated for up to 1050° C. These turbochargers are fully assembled with a calibrated electronic actuator

and ancillary components for direct OEM fitment.

WARNING: Maximum allowable turbocharger speed is 185krpm (Stage 1) | 165krpm (Stage 2). The use

of this product above max turbocharger speed is at the owner’s risk, and can result in damage and

premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port

is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003

(Includes sensor and gauge), and 781328-0004 (includes speed sensor).

Stage 2 Power = 600FWHP / 447kW approx 360kW @ Wheels

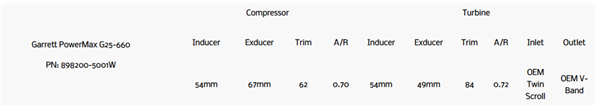

G25-660 Powermax.png

Part Number:

  • Stage 2 = G898200-5001W

Vehicle Applications:

  • Audi TT 2014 + Base 2.0L L4 - Gas IS20
  • Audi TTS 2014 + Base 2.0L L4 - Gas IS38
  • Audi A3 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
  • Audi A3 Quattro 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
  • Audi S3 2015 - 18 Premium Plus, Prestige 2.0L L4 - Gas IS38
  • VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 - Gas IS12
  • VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 - Gas IS20
  • VW Golf R 2015 Base 2.0L L4 - Gas IS38
  • VW Golf 2016 Base, S, SE, SEL 2.0L L4 - Gas IS12
  • VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 - Gas IS20
  • VW Golf R 2016 Base 2.0L L4 - Gas IS38
  • VW Golf 2017 S, Wolfsburg Edition 2.0L L4 - Gas IS12
  • VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 - Gas IS12
  • VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 - Gas IS20
  • VW Golf R 2017 Base 2.0L L4 - Gas IS38
  • VW Golf 2018 S, SE, SEL 2.0L L4 - Gas IS12
  • VW Golf Alltrack 2018 S, SE, SEL 2.0L L4 - Gas IS12
  • VW Golf GTI 2018 Autobahn, S, SE 2.0L L4 - Gas IS20
  • VW Golf R 2018 Base 2.0L L4 - Gas IS38

OEM Turbocharger Applications:

  • IS12 06K124713L
  • IS20 06K145875M
  • IS38 06K145722H

Note:

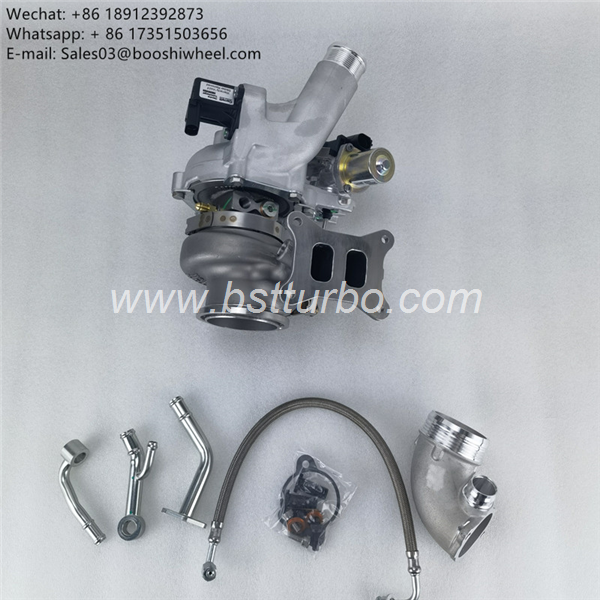

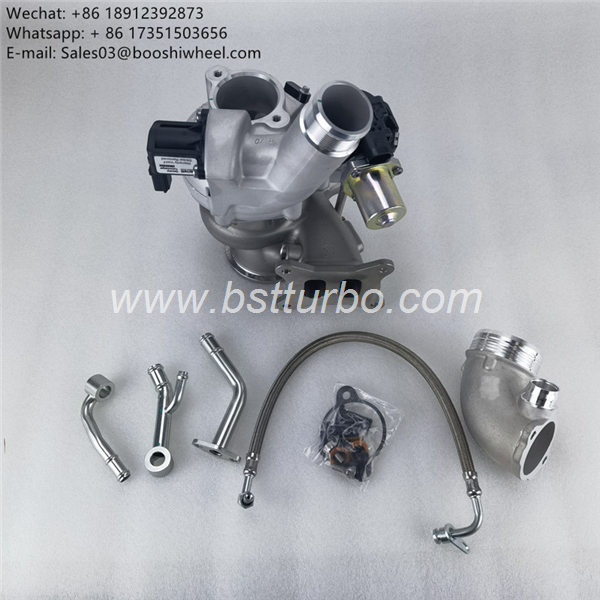

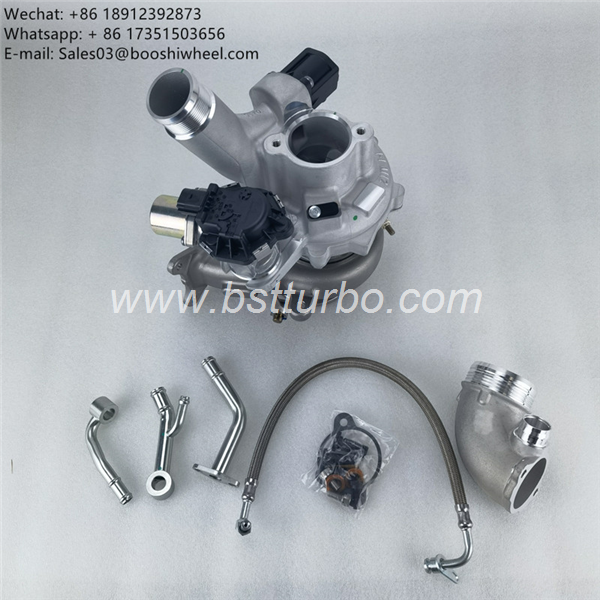

  • Complete water and oil fitting kit included
  • Gasket Kit included
