  • H1C 3523244 3802291 Turbo for Cummins

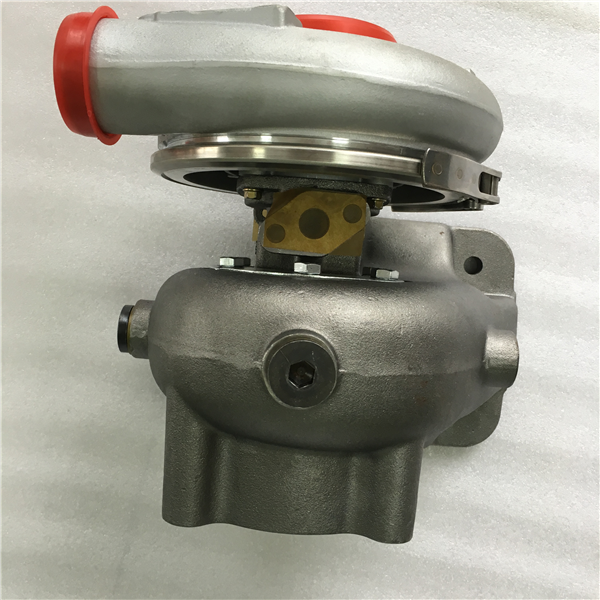

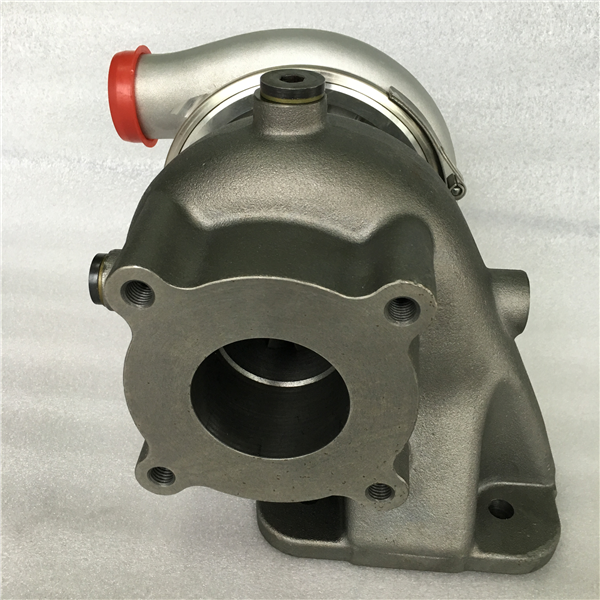

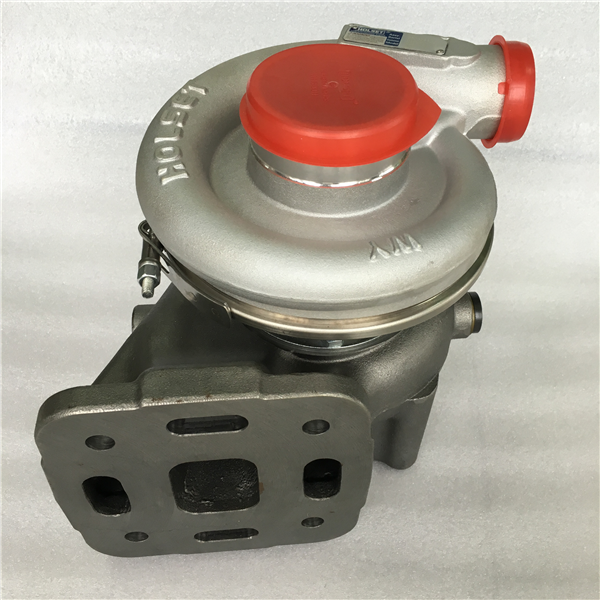

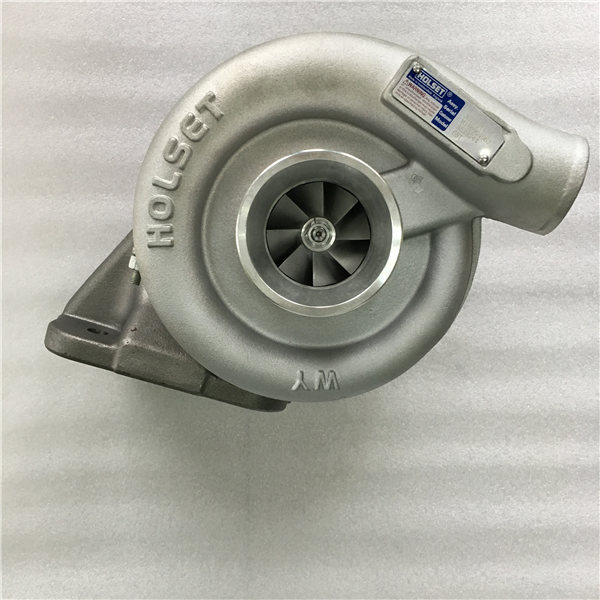

H1C 3523244 3802291 Turbo for Cummins

Product description:

Turbo Model : H1C

Part Number : 3523244

Brand Name : Booshiwheel

Engine Manufacturer : Cummins

OE number : 3802291

Manufacturer Part Number : 3523244

Applications : 1985-10 Cummins Marine, Truck with 4BT, 6BT Engine

H1C 3523244 3802291 Turbo for Cummins

Product Description




Part Number 3523244
Previous versions 3523245
OE number 3802291
Description Truck, MARINE
CHRA 3545699  NEW IN STOCK
Turbo Model H1C-8243AF/J13S5, H1C
Engine 4BT, 6BT
Engine Manufacturer Cummins
Fuel Diesel
Angle α (compressor housing) 199.5/241
Angle β (turbine housing) 301/360
Bearing Housing 3530591/3530592 (1152301450) (Universal oil inlet)  NEW IN STOCK
Turbine Wheel 3503798 (Ind. 70, mm, Exd. 57. mm, 12 Blades)   NEW IN STOCK
Comp. Wheel 3521711/3599639 (Ind. 50. mm, Exd. 83. mm, 8+8 Blades) (1152301400)   NEW IN STOCK
Back plate 3534947 (166537)  NEW IN STOCK
Heat shield Number 3519302 (194149) (1152301340)  NEW IN STOCK
Repair Kit 3545652/4027309 (1152301750)  NEW IN STOCK
Turbine Housing Water Cooled
Gasket (turbine inlet) 409039-0000 (312617, 2405022, 7C7431)
Gasket (oil outlet) 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Manufacturer Booshiwheel



Applications

1985-10 Cummins Marine, Truck with 4BT, 6BT Engine
