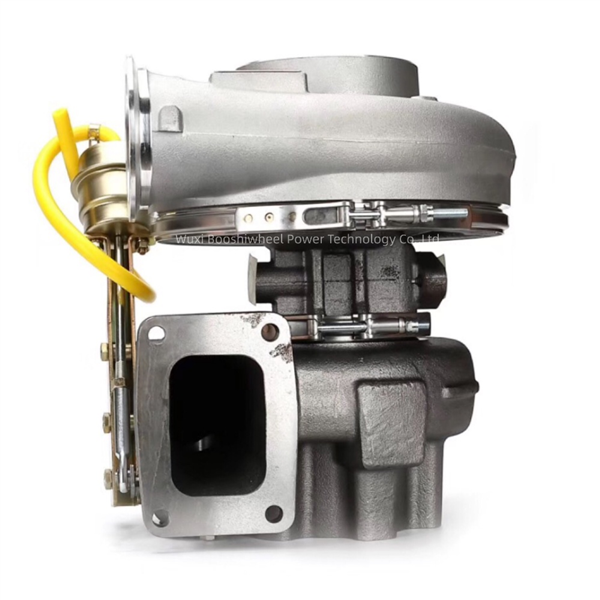

HX60W Turbocharger 3598762 2836723 4024936 for Engine ISX, QSX15

Product description:

Turbo Model : HX60W HX60W-A1292J/AW22V1

Fuel : Diesel

Part Number : 3598762

Brand Name : Booshiwheel

现价 : 294

Engine Manufacturer : Cummins (L PHASE)

OE number : 4024936 4024937 4024937NX 4024937RX 4025272 4025272NX 4025272RX 4089298 4089298NX 4089298RX 4956081 4956082 4956082NX 4956082RX

Year : 2002-10

Manufacturer Part Number : 2836723 2836725 2836726 2836727 2836760 2836762 3593345 3594488 3594490 3594491 3594492 3595972 3595973 3598763 3598764 3598765

Applications : 2002-10 Cummins ISX Industrial (L PHASE) WASTE GATED with QSX15 Engine

标签 : ISX,QSX15

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 3598762

Previous Version 2836723 2836725 2836726 2836727 2836760 2836762 3593345 3594488 3594490 3594491 3594492 3595972 3595973 3598763 3598764 3598765

OE number 4024936 4024937 4024937NX 4024937RX 4025272 4025272NX 4025272RX 4089298 4089298NX 4089298RX 4956081 4956082 4956082NX 4956082RX

Description Industrial Engine

CHRA 3594608 (3594608H, 4027259, 4027259H) $1,141.34 IN STOCK

Turbo Model HX60W HX60W-A1292J/AW22V1

Engine ISX QSX15

Fuel Diesel

Engine Manufacturer Cummins (L PHASE)

Angle α (compressor housing) 270°

Angle β (turbine housing) 270°

Bearing Housing 3536802 (353680200, 3536802H, 4038724)(Oil Cooled) $365.23 NEW IN STOCK

Turbine Wheel 3533025 (3533025H, 353302500)(Ind. 97. mm, Exd. 86.3 mm, Trm 16.9, 12 Blades)(1153060435) $230.47 NEW IN STOCK

Comp. Wheel 3534650 (353465000)(Ind. 80. mm, Exd. 113. mm, Trm 9.25, 8+8 Blades, Superback) $269.00 NEW IN STOCK

Back plate 3531917 (3531917H)(1250403300) $67.06 NEW IN STOCK

Heat shield Number 3519155 (3758538, 18373, 351915500) $15.58 NEW IN STOCK

Repair Kit 4027881 (3545345, 3580568, 4027880)(1153060750) $125.00 NEW IN STOCK

Turbine Housing 3598760

Compressor Cover 3594487

Actuator 4044633 (3593848, 4030227, 4032304, 3599836) $182.75

Gasket Kit 3545577 (4681920000, 118097-0000, 468189-0000) $18.30 NEW IN STOCK

Gasket (oil outlet) 3519763 (129120, 210018-0000, 201048, 157602, 3037537)(1900000025) $4.38

Superseded 4047148

Manufacturer HOLSET

Applications

2002-10 Cummins ISX Industrial (L PHASE) WASTE GATED with QSX15 Engine
