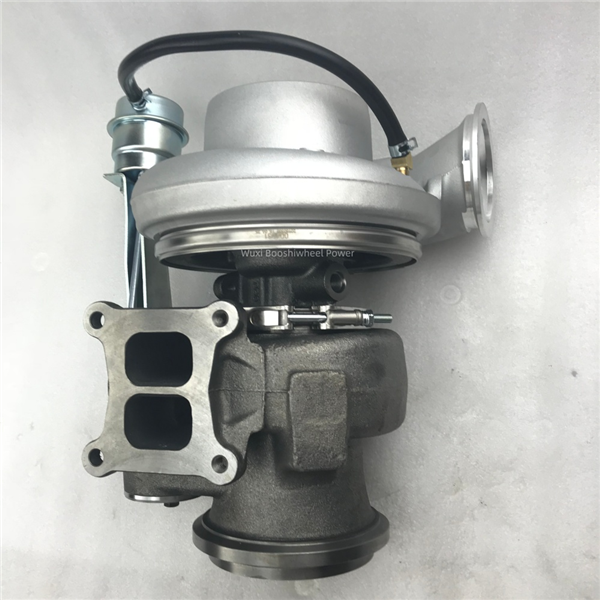

HX55W Turbocharger 4043708 4043707 4955714 3792807 4037625 4039068 4089885 4352298 4037087 for Engine QSM 2/3 TIER 3

Product description:

Turbo Model : HX55W HE500WG

Fuel : Diesel

Part Number : 4043708

Brand Name : Booshiwheel

现价 : 205

Engine Manufacturer : Cummins

Displacement : 11.0L, 6 Cylinders in-line

OE number : 4089858 4089885 4089885H 4352298 435229800 435229800HX 4352298H 4352298NX 4352298RX 4955714 4955714NX 4955714RX

Year : 2005-02

Manufacturer Part Number : 3792807 4037625 4037626 4039067 4039068 4043707 4043708

Applications : 2005-02 Cummins Industrial Engine with QSM 2/3 TIER 3

标签 : QSM,,QSM3,,M11,,QSM11,,ISM,,QSM,2/3,TIER,3,,QSM,11

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 4043708

Previous Version 3792807 4037625 4037626 4039067 4039068 4043707 4043708

OE number 4089858 4089885 4089885H 4352298 435229800 435229800HX 4352298H 4352298NX 4352298RX 4955714 4955714NX 4955714RX

Description Industrial Engine, Hyster ReachStackers (Rs45-31CH)

CHRA 4032690 (4032690H, 3768413) $490.00 NEW IN STOCK, MADE IN USA

Turbo Model HX55W HE500WG

Engine QSM, QSM3, M11, QSM11, ISM, QSM 2/3 TIER 3, QSM 11

CPL #'s 8543, 8544, 8545, 8546, 8608

Engine Manufacturer Cummins

Displacement 11.0L, 6 Cylinders in-line

Fuel Diesel

Angle α (compressor housing) 264º

Angle β (turbine housing) 130º

Bearing Housing 3535575 (353557500, 3535704)(Oil Cooled) $110.00 NEW IN STOCK

Turbine Wheel 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436, 1100016122B) $148.00 NEW IN STOCK

Comp. Wheel 4035887 (3596135)(4036317)(Ind. 71.00 mm, Exd. 99.01 mm, Trm 51, 6+6 Blade) $58.00 NEW IN STOCK

Type Turbo with C/Wheel made by the milling machine

Back plate 3528096 (1153055300) $21.48 NEW IN STOCK

Heat shield Number 3529846 (3533038)(1153055340) $13.22 NEW IN STOCK

Repair Kit 3580762 (3575181, 3533038)(1153055750, 5000020023) $88.00 NEW IN STOCK

Turbine Housing 3592774

Compressor Cover 4036914

Actuator 4037623 (4037622, 4030835) $193.58

Gasket Kit 4032517 $47.24

Gasket (turbine inlet) 409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)$13.52

Gasket (turbine outlet) 210245 (Inox Steel) $24.48

Gasket oil inlet 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48

Gasket (oil outlet) 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) $4.48

Superseded 3792807

Manufacturer HOLSET

Applications

2005-02 Cummins Industrial Engine with QSM 2/3 TIER 3
