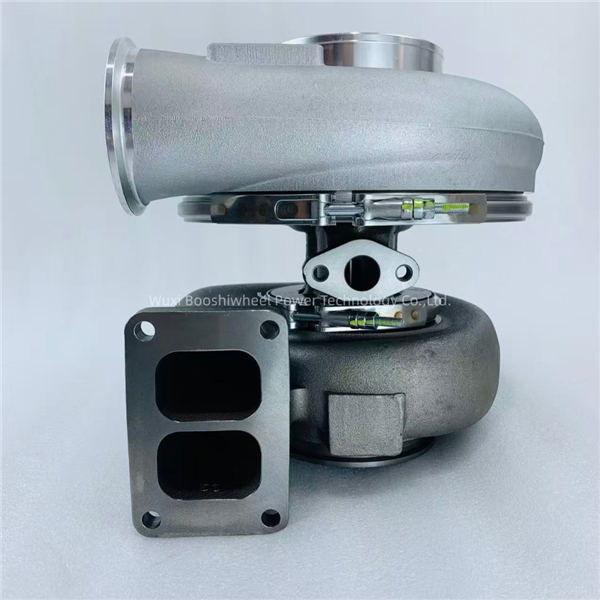

HX60 Turbocharger 3800852 3592401 3592369 3800852NX 3800852RX for Engine M11, ISM CM570, ISM CM570/870, ISM CM875

Product description:

Turbo Model : HX60 HX60M HX60-A1292C/B32JA1

Fuel : Diesel

Part Number : 3592369

Brand Name : Booshiwheel

现价 : 265

Engine Manufacturer : Cummins

Displacement : 6 Cylinders

KW : 635 HP

OE number : 3800852 3800852NX 3800852RX

Year : 1999-06

Manufacturer Part Number : 3592401

Applications : 1999-06 Cummins Marine with QSM11 Engine

标签 : QSM11

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 3592369

Previous versions 3592401

OE number 3800852 3800852NX 3800852RX

Description Marine

Manufacturer Part Number 3592401

CPL(s) 2443, 8363, 8753

CHRA 3594608 (3594608H, 4027259, 4027252, 4027259H) $1,241.34 IN STOCK

Turbo Model HX60 HX60M HX60-A1292C/B32JA1

Engine M11, ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

Engine Manufacturer Cummins

Displacement 6 Cylinders

KW 635 HP

Fuel Diesel

Angle α (compressor housing) 90º

Angle β (turbine housing) 30º

Bearing Housing 3536802 (353680200, 3536802H, 4038724)(Oil Cooled) $365.23 NEW IN STOCK

Turbine Wheel 3533025 (3533025H)(Ind. 97. mm, Exd. 86.3 mm, Trm 16.9, 12 Blades)(1153060435) $230.47 NEW IN STOCK

Comp. Wheel 3534650 (353465000)(Ind. 80. mm, Exd. 113. mm, Trm 9.25, 8+8 Blades, Superback) $269.00 NEW IN STOCK

Back plate 3531917 (1250403300) $67.06 NEW IN STOCK

Heat shield Number 3519155 (3758538, 18373, 351915500) $15.58 NEW IN STOCK

Repair Kit 4027881 (3545345, 3580568, 4027880)(1153060750) $125.00 NEW IN STOCK

Turbine Housing 3533986

Compressor Cover 3591396 $378.46

Gasket Kit 3545577 (468189-0000)(215082, 2090505397) $18.30 NEW IN STOCK

Gasket (oil outlet) 3519763 (129120, 210018-0000, 201048, 157602, 3037537)(1900000025) $4.38

Listed New $3,391.52

Manufacturer HOLSET

Applications

1999-06 Cummins Marine with QSM11 Engine
