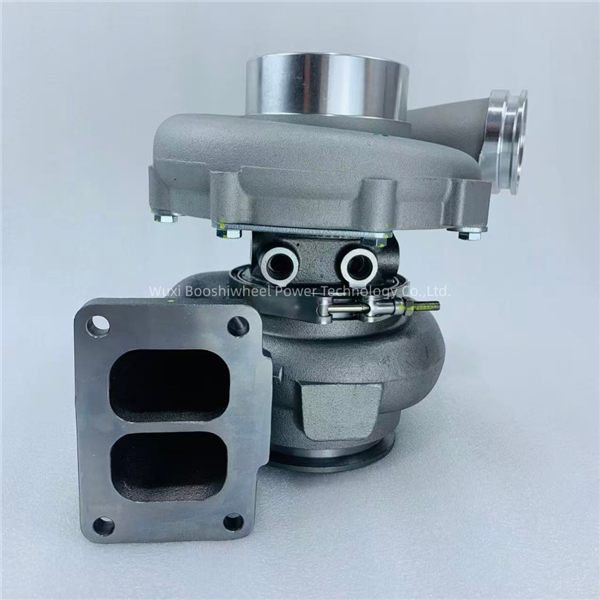

GT4594L Turbocharger 709197-0009 709197-5009S 709197-0005 1549450 20440364 21031697 709197-0001 for Engine DH12D,DH12C340, DH12C380

Product description:

Turbo Model : GT4594BL GT4594L

Fuel : Diesel

Part Number : 709197-5009S

Brand Name : Booshiwheel

现价 : 132

Displacement : 12.14L, 12140 ccm, 6 Cylinders Horiz

KW : 310/315

RPM Max : 1800

OE number : 1549450 20440364 21031697 20741949

Year : 1999-07

Manufacturer Part Number : 709197-0009 709197-0001 709197-0003 709197-0005 709197-5005S 709197-9

Applications : 1999- Volvo B12B/B12M Bus with DH12D Engine

标签 : DH12D

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 709197-5009S
Previous Version 709197-0009 709197-0001 709197-0003 709197-0005 709197-5005S 709197-9
OE number 1549450 20440364 21031697 20741949
Year 1999-07
Description Volvo Truck, B12B/B12M Bus
Model B12B/B12M Bus. 340, 380 & 420 HP ratings
House Promotor Volvo Power train
CHRA 712402-0092 (712402-5092S, 712402-0065) $450.00 NEW IN STOCK, MADE IN USA
Turbo Model GT4594BL GT4594L
Engine DH12D, DH12D Horizontal,DH12C340, DH12C380, DH12C420, DH12D380, DH12D340, DH12D420, DH12E460
Model 7300, 7500, 8500, 8700, 9700, 9900
Displacement 12.14L, 12140 ccm, 6 Cylinders Horiz
KW 310/315
RPM Max 1800
Fuel Diesel
Angle α (compressor housing) 323º
Angle β (turbine housing) 90º
Bearing Housing 720973-0004 (Water Cooled) $89.00 NEW IN STOCK
Turbine Wheel 763590-0003 (763590-0007)(Ind. 87.1 mm, Exd. 77.78 mm, Trm 14.27, 10 Blades) $165.00 NEW IN STOCK
Comp. Wheel 737714-0002 (720973-0004)(Ind. 62.3 mm, Exd. 94. mm, Trm 7.13, 6+6 Blades) $69.00 NEW IN STOCK
Back plate 725273-0004 (726992-0003) $63.68 NEW IN STOCK
Heat shield Number 410366-0007 (410366-0003, 410366-0004) $16.42 NEW IN STOCK
Repair Kit 709153-0005 (709153-0001, 709153-0002)(1102042750)(13***75) $90.80 NEW IN STOCK
Turbine Housing 449495-0019 $195.00
Compressor Cover 449858-0074
Gasket (turbine inlet) 409038-0000 (132040, 210017-0000, 52231083002) $15.49
Gasket (oil outlet) 210019 (129119, 55739, 147837, 210023-0000, 409036-0000) $4.40
Gasket (oil outlet) 210060 (311585, 2475013, 51914, 148062, 210060-0000, 409267-0002, 409267-0003)(Paper) $4.48
Manufacturer Honeywell-Garrett

Applications
1999- Volvo Truck with DH12D Engine
1999- Volvo B12B/B12M Bus with DH12D Engine
