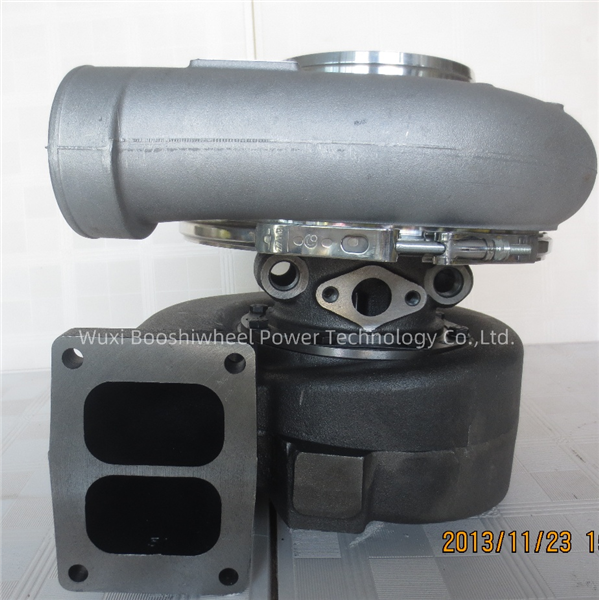

HX82 Turbocharger 3774247 3819093 4043668 4033505 for Engine TWD1643 GE

Product description:

Turbo Model : HX82 3774247

Fuel : Diesel

Part Number : 3774247

Brand Name : Booshiwheel

现价 : 661

Engine Manufacturer : Volvo - Penta

Displacement : 6 Cylinders

KW : 553 651

RPM Max : 1500 1800

OE number : 3819093 2801142 H181020536

Year : 2006-11

Manufacturer Part Number : 3819093 4043668 4043669 4033505 4033505H

Applications : 2006-11 Volvo Penta Industrial, 2 Stage Gen Set TWD1643GE Penta

标签 : TWD1643,GE,,TWD1643GE,with,bypass,controlled,by,so

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 3774247

Previous Part Number 3819093 4043668 4043669

OE number 3819093 2801142 H181020536

Description Marine Industrial (2 Stage Genset), Volvo Penta 2 Stage Genset

CHRA 4030889 (3774249) $1807.20 NEW IN STOCK

Manufacturer Part Number 4033505 4033505H

Turbo Model HX82

Engine TWD1643 GE, TWD1643GE with bypass controlled by software

Application(s) D2

RPM 15001800

Fuel Diesel

KW 553651

Displacement 6 Cylinders

Engine Manufacturer Volvo - Penta

Angle α (compressor housing) 80º

Angle β (turbine housing) 360º

Bearing Housing 4043832 (Oil Cooled)

Turbine Wheel 3535977 (Ind. 129. mm, Exd. 111. mm, Trm G, 13 Blades) $1,150.00 NEW IN STOCK

Comp. Wheel 3593926 (4048021) (B151N66, F151N66)(Ind. 100. mm, Exd. 152.04 mm, Trm 12.88, 8+8 Blades, Super Back) $595.04 NEW IN STOCK

Back plate, Seal plate 3534703

Heat shield, Shroud 3536588 (353658800) (1153080340) $48.74 NEW IN STOCK

Shim (0.010) 3524418 (352441800)(316069) $6.88

Repair Kit 4027972 (1152082755) $262.62 NEW IN STOCK

Turbine Housing 4043681

Compressor Cover 4045470

Gasket (turbine inlet) 20784537

Gasket (oil outlet) 21875781

Gasket Kit 3800277

NOTE Inter cooled, with bypass controlled by software

Listed $8904.50

Manufacturer HOLSET

Applications

2006-11 Volvo Penta Industrial, 2 Stage Gen Set TWD1643GE Penta
