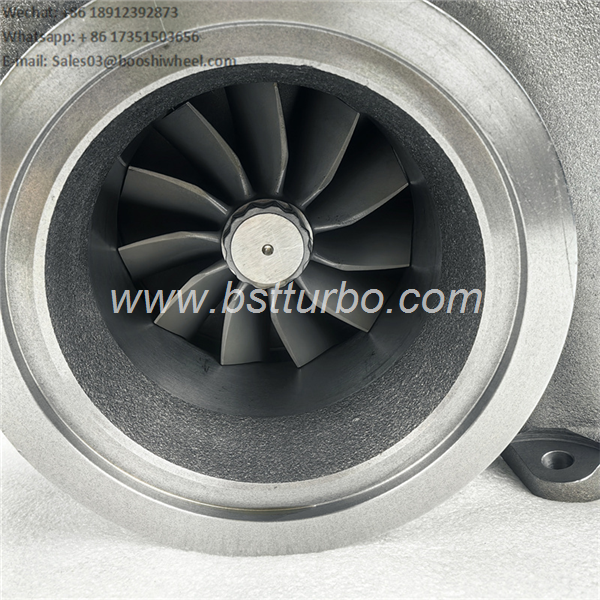

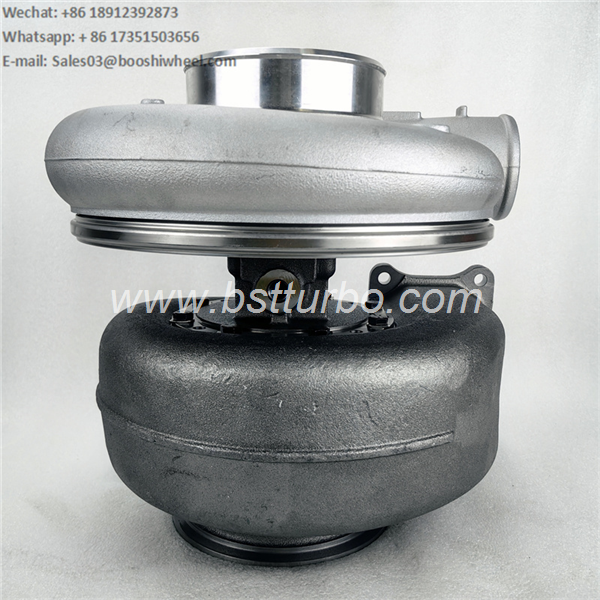

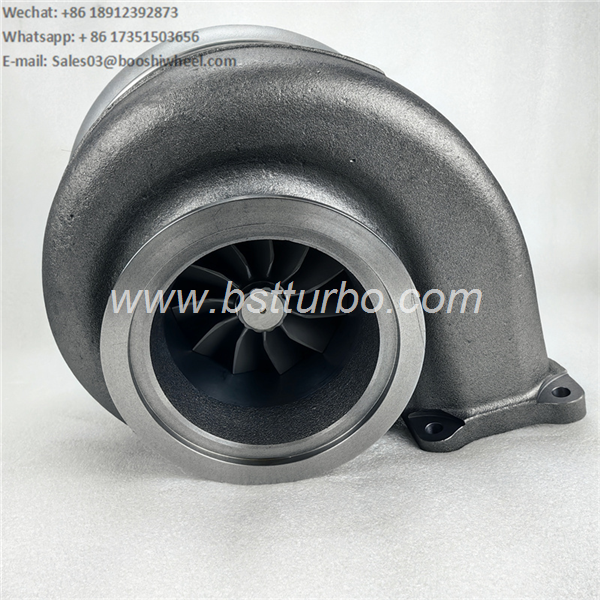

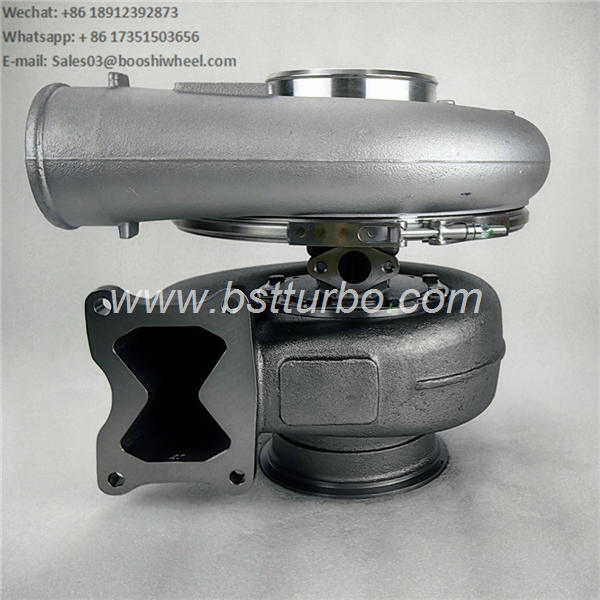

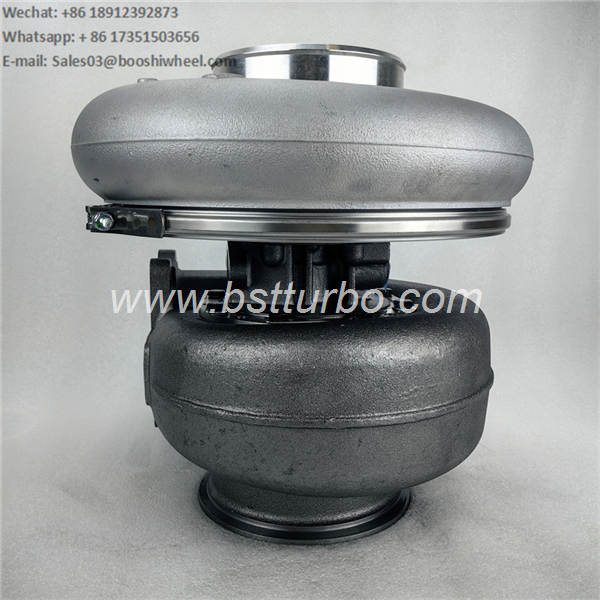

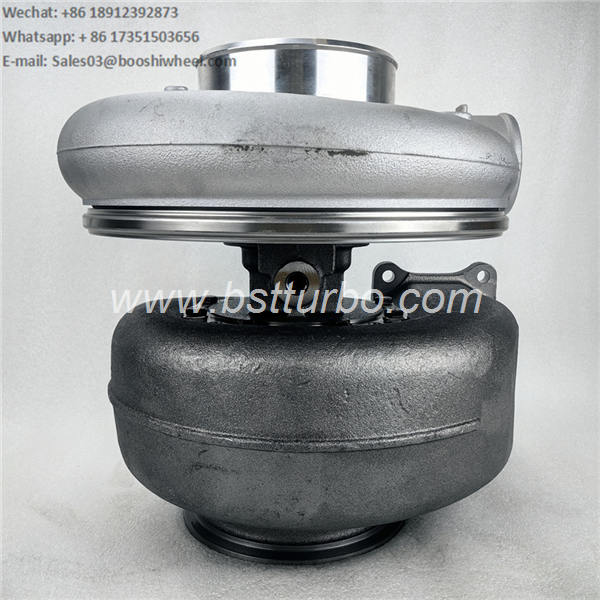

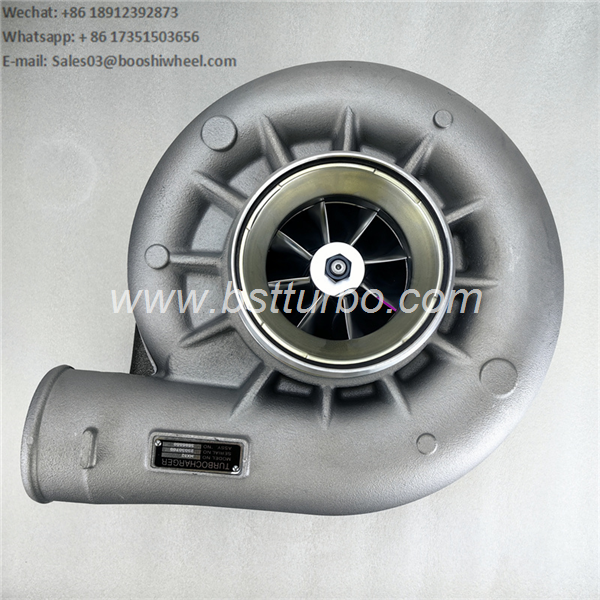

Turbocharger HX82 3774192 3595850 4033023 3595851 turbo for Cummins Komatsu Powergen with QSKV45 Engine

Product description:

Turbo Model : HX82 3774192

Fuel : Diesel

Part Number : 3774192

Brand Name : Booshiwheel

KW : 1035/1200/1810 HP

OE number : 4025150, 6240-81-8900, 6240818900

Year : 2000

Applications : 2000- Cummins Komatsu Powergen with QSKV45 Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	3774192
Previous Version	3595850
OE number	4025150, 6240-81-8900, 6240818900
Description	Cummins Komatsu Powergen
Manufacturer Part Number	3793507, 3595851, 3595852, 3599388
CHRA	3774248 (4027658) $2807.20
Turbo Model	HX82, HX82-H5153BC/AR37HA4
Engine	QSKV45, QSK23 G3
Engine Manufacturer	Cummins (CTT)
KW	1035/1200/1810 HP
Fuel	Diesel
Angle α (compressor housing)	16/195/202°
Angle β (turbine housing)	22.5/45/360°
Bearing Housing	3595037 (Water Cooled) $920.31
Turbine Wheel	3535977 (Ind. 129. mm, Exd. 111. mm, Trm G, 13 Blades) $1,150.00 NEW IN STOCK
Rotor Assembly	4017423
Comp. Wheel	3593926 (4048021)(B151N66, F151N66)(Ind. 100. mm, Exd. 152.04 mm, Trm 12.88, 8+8 Blades, Superback) $595.04 NEW IN STOCK
Back plate	3534703
Heat shield Number	3536588 (353658800) (1153080340) $48.74 NEW IN STOCK
Repair Kit	4027972 $262.62 NEW IN STOCK
Shim (0.010)	3524418 (316069) $6.88
Gasket Kit	4032525 (3575178) $38.40
Manufacturer	HOLSET

Applications：

2000- Cummins Komatsu Powergen with QSKV45 Engine
