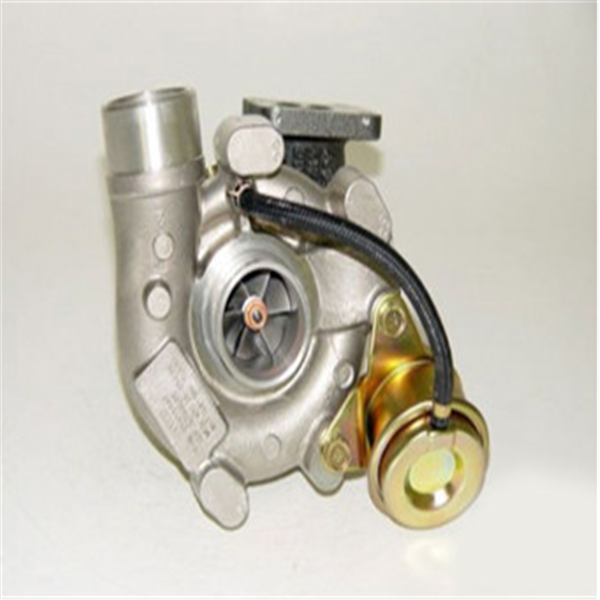

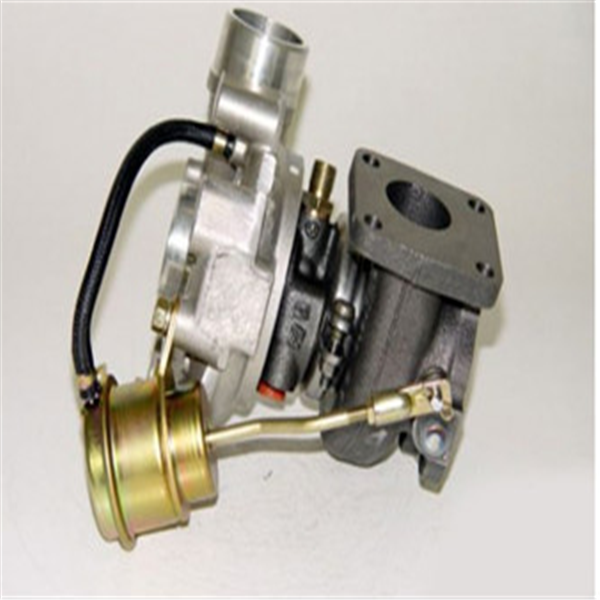

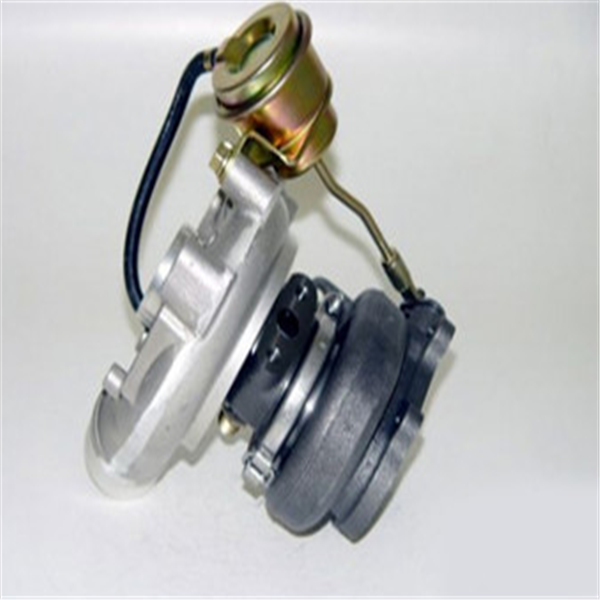

TFO35HM 49135-05030 99455591 Turbo for Iveco

Product Description
Part Number 49135-05030
Previous versions 4913505030, 49135-05040
OE number 99455591, 451246
Description Commercial Renault Master 2.8L TCA, Iveco Daily
CHRA 49135-08100
Turbo Model TFO35HM-13T/6
Engine 8140.42, 8140.42.2585
Displacement 2.8L, 2798 ccm, 4 Cylinders
KW 90/122
RPM Max 3500
Fuel Diesel
Bearing Housing 49177-25420 (Oil Cooled)
Turbine Wheel 49135-30100
Comp. Wheel 49135-00015
Back plate 49135-00044
Heat shield Number 49170-19100
Repair Kit 49135-TFO35
Turbine Housing 49135-15010
Turbine Housing AR 6.0
Actuator 49135-18833
Settings Wastegate (pressure) 1.160/1.300 bar
Settings Wastegate (lift shaft) 1.00/5.00 mm
Gasket (turbine inlet) 210338
Gasket (turbine outlet) 210350
Gasket (oil outlet) 210243
NOTE Intercooler

Applications
1996- Renault Master, Messenger B110 with 8140.42.2585Engine
1996- Iveco Turbo Daily Multi-car with 8140.42.2585 Engine
