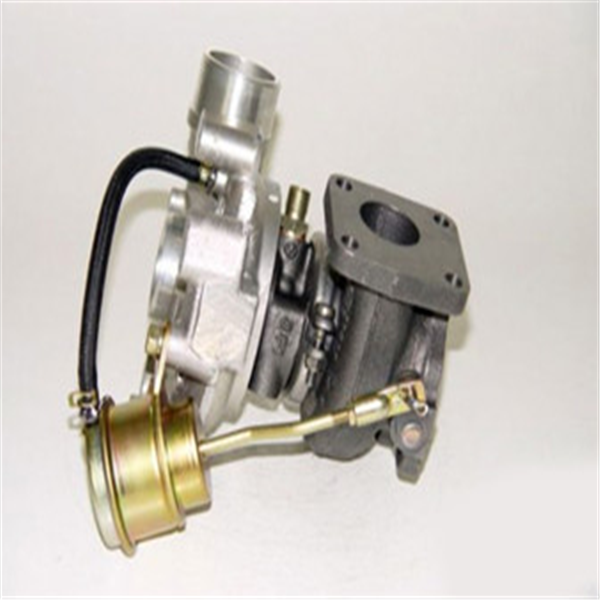

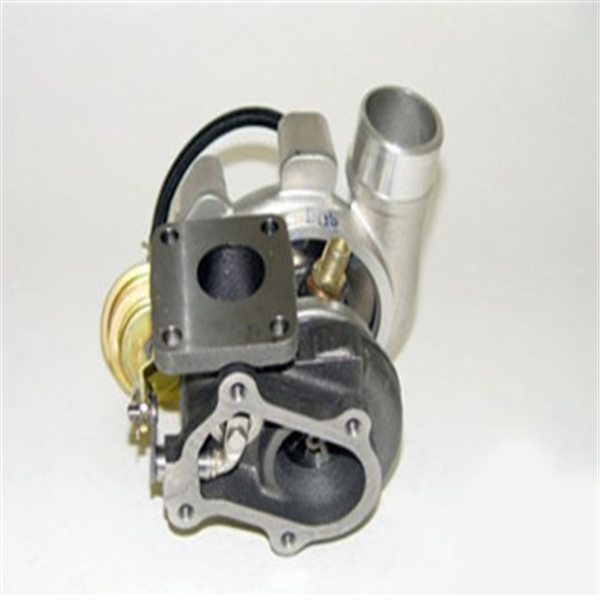

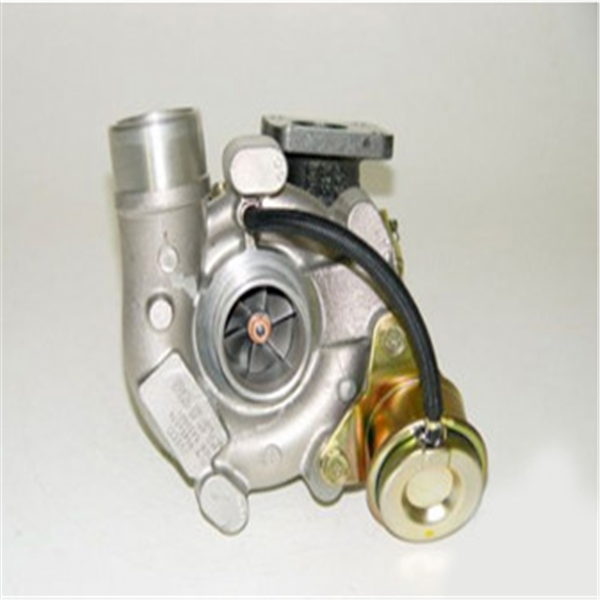

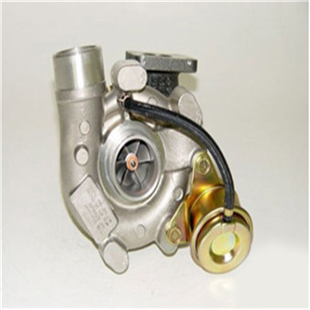

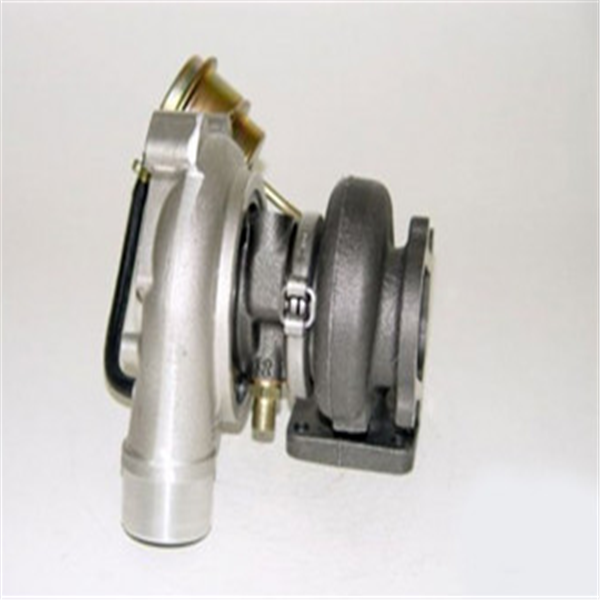

TFO35HM 49135-05020 99456076 Turbo for Iveco

Product Description
Part Number 49135-05020
Previous Part Number 4913505020
OE number 99456076
Year 1996-
Description Commercial Renault Master 2.8L TCA, Iveco Daily
CHRA 49135-08100 (49135-08101)
Turbo Model TFO35HM-13T/6
Engine Model 8140.43.2585, 8140
Displacement 2.8L, 2798 ccm, 4 Cylinders
KW 90/122
RPM Max 3500
Fuel Diesel
Bearing Housing 49177-25420 (Oil Cooled)
Turbine Wheel 49135-30100
Comp. Wheel 49135-00015
Back plate 49135-00044
Heat shield Number 49170-19100
Repair Kit 49135-TFO35
Turbine Housing 49135-15010
Compressor Cover N/a
Turbine Housing AR 6.0
Actuator 49135-18822
Settings Wastegate (pressure) 1.290/1.450 bar
Settings Wastegate (lift shaft) 1.00/5.00 mm
Gasket (turbine inlet) 210338
Gasket (turbine outlet) 210350
Gasket (oil outlet) 210243
NOTE Intercooler

Applications
1996- Iveco Daily 2.8 TC Commercial Daily Engine 8140
Renault Commercial Messenger B120 Engine 8140
