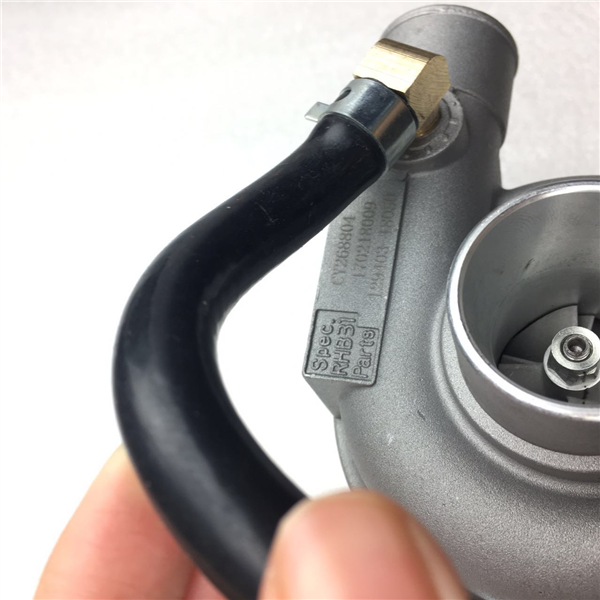

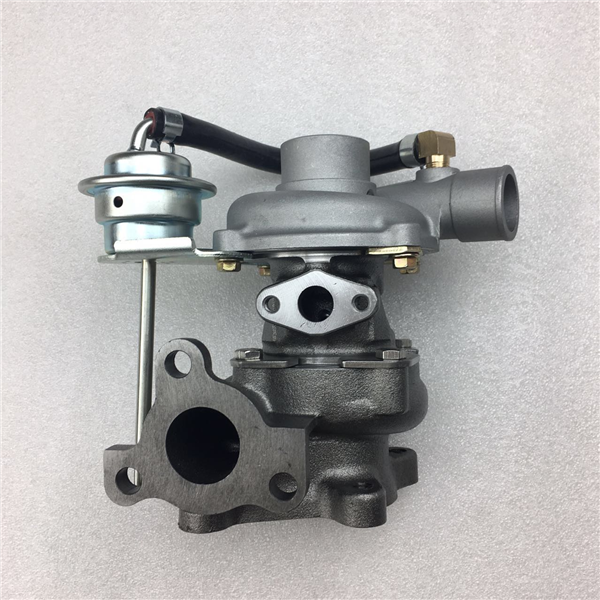

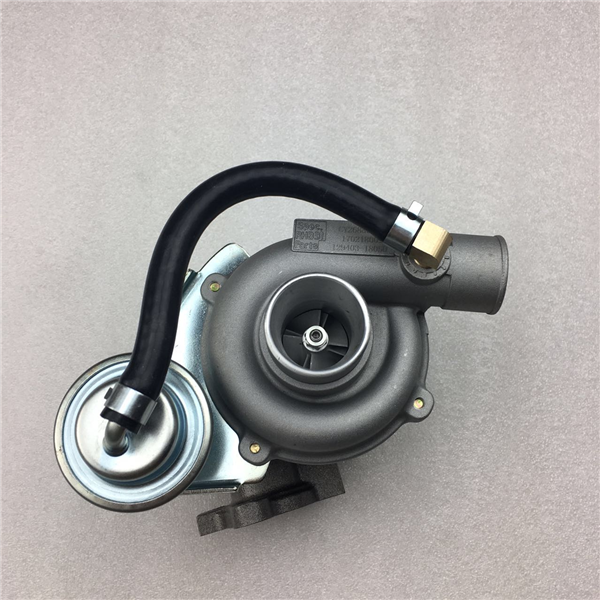

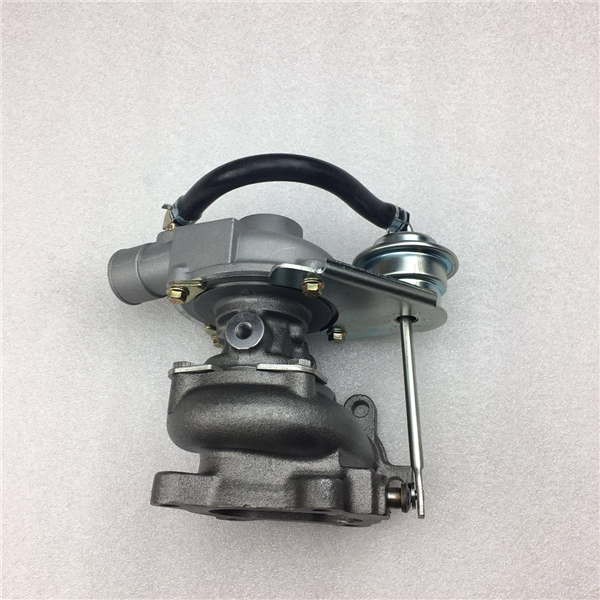

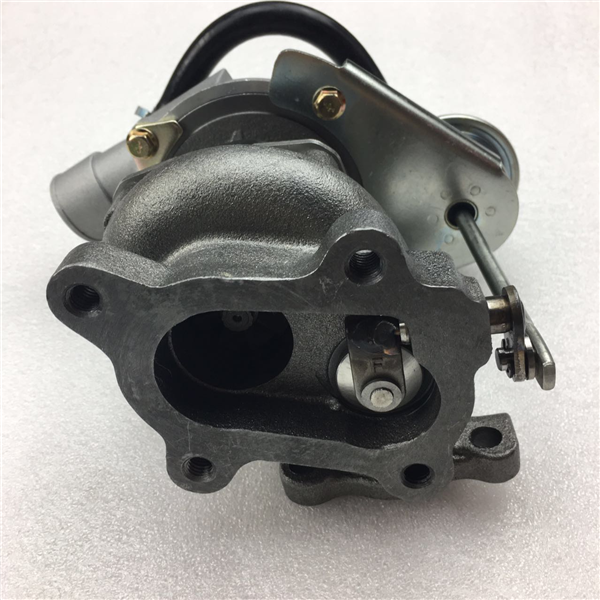

RHB31 VA110024 CY268804 Turbo for Yanmar

Product description:

Turbo Model : RHB31 CY268804

Part Number : VB110024

Brand Name : Booshiwheel

Engine Manufacturer : 4TNA78TL-DKA

OE number : 3T-508 12940318050 NB130015 129403-18050 129189-18010

Manufacturer Part Number : VA110021 VA110024 VB110021 VC110021 VC110033

Applications : Yanmar Industrial Motor / Marine with 4TNA78TL-DKA Engine

RHB31 VA110024 CY268804 Turbo for Yanmar

Part Number	VB110024
Previous Part Number	VA110021, VA110024, VB110021, VC110021, VC110033
OE number	3T-508, 12940318050, NB130015, 129403-18050, 129189-18010
Description	Industrial Motor, Marine, Excavator
CHRA	NZ853184
V-Spec.	CY26, MY61
Turbo Model	RHB31-50001P12NFBRS255AZ
YANMAR	4TN78TL, 3TN82TE
Engine	4TNA78TL-DKA
Angle α (compressor housing)	180
Angle β (turbine housing)	110
Bearing Housing	NB133339
Turbine Wheel	NB131180
Comp. Wheel	NB135102
Back plate	NB133011
Heat shield Number	NB137143
Repair Kit	NB139837
Turbine Housing	NB139840
Compressor Cover	NB134608
Turbine Housing AR	12
Actuator	NH974621
Manufacturer	IHI
