  • MYDA RHC61W turbocharger 119175-18030 119175-18031 VB240090 VC240090 turbo for Yanmar Marine with 4LHA-STE Engine

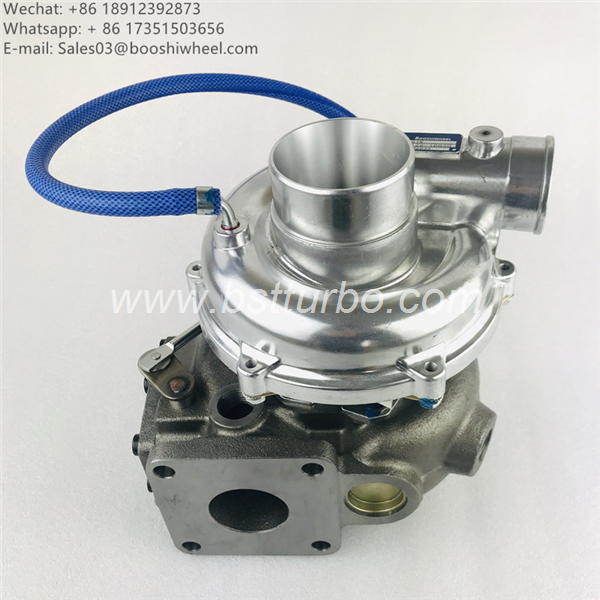

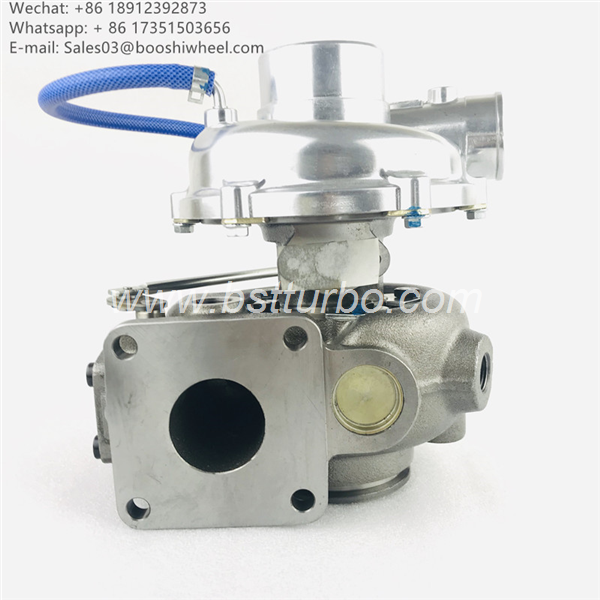

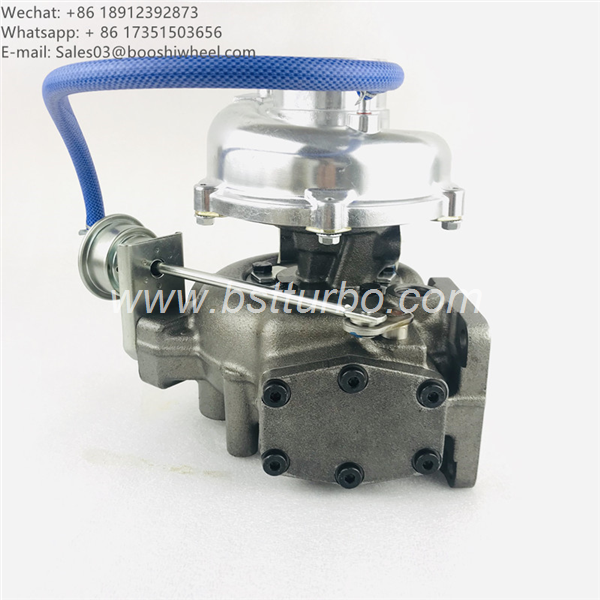

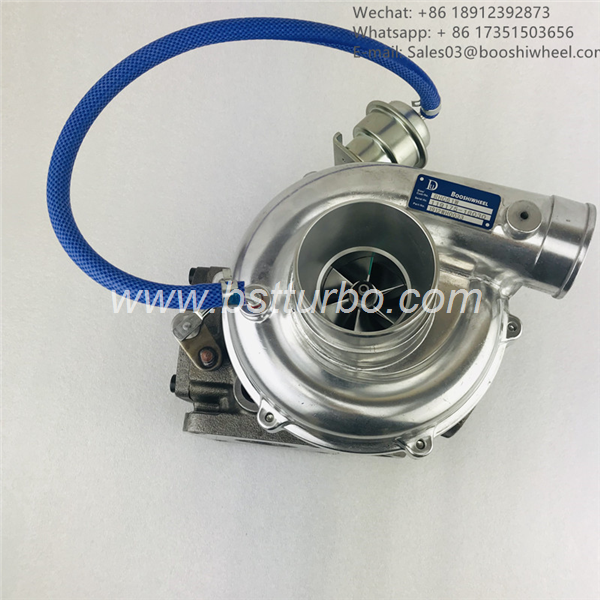

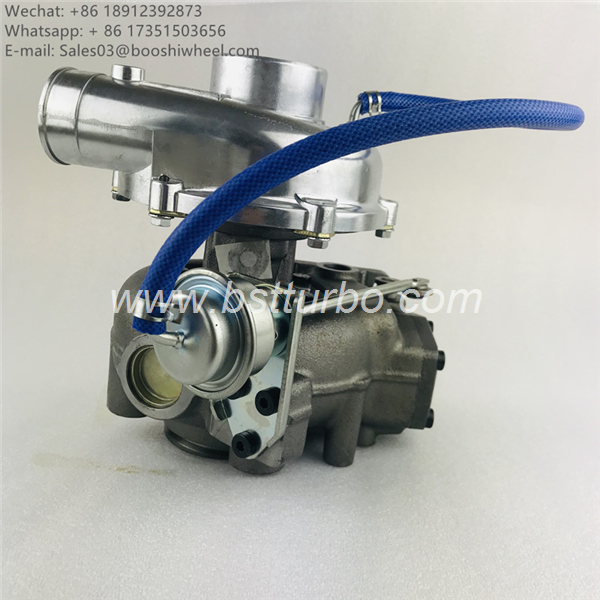

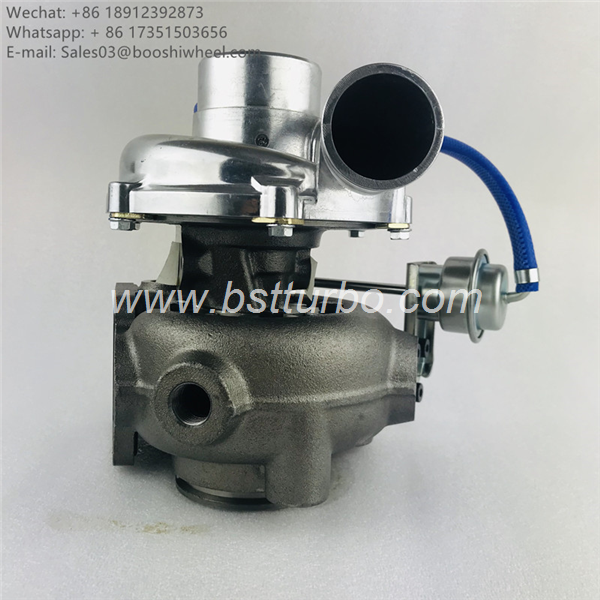

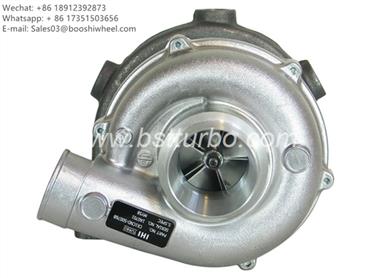

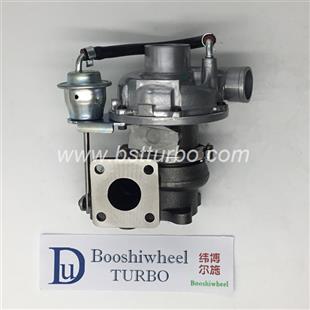

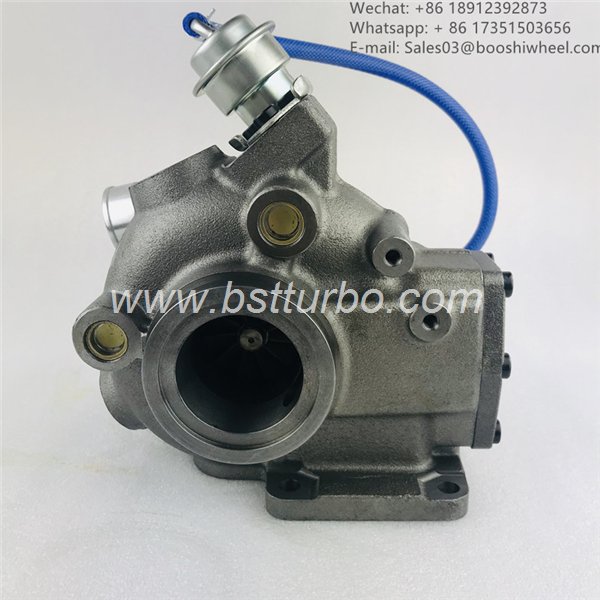

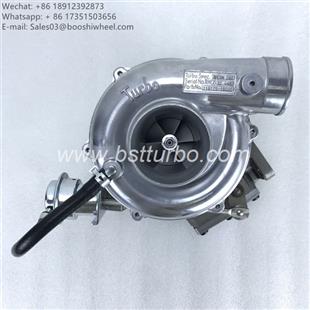

MYDA RHC61W turbocharger 119175-18030 119175-18031 VB240090 VC240090 turbo for Yanmar Marine with 4LHA-STE Engine

Product description:

Turbo Model : RHC61W 119175-18030

Part Number : 119175-18030 119175-18031

Brand Name : Booshiwheel

Displacement : 3.5L, 3456 ccm

KW : 230hp

OE number : VA240090 VB240090 VC240090

Applications : 1998-01 Yanmar Marine with 4LHA-STE Engine

Welcome to contact us :



Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com



Specification



Part Number VD240090
Previous Part Number VA240090, VB240090, VC240090
OE number 119175-18031, 119175-18030, 11917518031, 11917518030, C61CAD-S0090B, C61CAD-S0090G, C61CADS0090B, C61CADS0090G
Description Marine
CHRA NZ854798 (NZ870535) $448.00 NEW IN STOCK, MADE IN USA
V-SPEC. MYDA
Turbo Model RHC61W-1063P16NWBRLL4715CCZ
Engine 4LHA-STE, STE-4LHA, 4LHA-STZE-YA
Displacement 3.5L, 3456 ccm
Power 230 HP
Fuel Diesel
Angle α (compressor housing) 70º
Angle β (turbine housing) 182º
Bearing Housing NH163376 (NH163331)(831211260)(831211090)(Oil Cooled) $143.52 NEW IN STOCK
Turbine Wheel NH261301D (171012)(Ind. 62. mm, Exd. 54.71 mm, 11 Blades) $106.80 NEW IN STOCK
Comp. Wheel NH265520 (170268)(Ind. 46.78 mm, Exd. 69. mm, 6+6 Blades, Superback) $125.90 NEW IN STOCK
Back plate NN193012 (171124) $18.55 NEW IN STOCK
Heat shield Number NH163329 (171056) $14.82 NEW IN STOCK
Repair Kit NH169843 (509T-538)(171079) $129.00 NEW IN STOCK
Turbine Housing (Water-Cooled) NH167595
Compressor Cover NH164718
Turbine Housing AR 16
Actuator NH961640 (NH961641)
Installation Kit $79.00
Gasket (turbine Outlet) 128300-13230
Gasket (oil outlet) 210161 (128300-1323)(Gasket paper) $2.00
Manufacturer IHI
Condition Rebuilt

Applications

1998-01 Yanmar Marine with 4LHA-STE Engine
