  •  GT2252V 454192-5006 074145703G turbo for  Audi&Volkswagen

GT2252V 454192-5006 074145703G turbo for Audi&Volkswagen

Product description:

Turbo Model : GT2252V

Fuel : Diesel

Part Number : 454192-5006S

Brand Name : Booshiwheel

Engine Manufacturer : VW

Displacement : 2.5L, 2461 ccm, 5 Cylinders

KW : 102/192 HP

OE number : 074145703G,074145703GX,074145703GV,074145703GV246,074145703G246

Year : 1995-03

 GT2252V 454192-5006 074145703G turbo for  Audi&Volkswagen

product describtion



Previous Version

454192-0002, 454192-0006, 454192-6

CHRA

703891-0115

Turbo Model

GT2252V

Engine

AVG, AXL, TDI Euro-3

Angle α (compressor housing)

69

Angle β (turbine housing)

10

Bearing Housing

722282-0066

Turbine Wheel

434883-0034

Comp. Wheel

702492-0011

Back plate

703682-0054

Heat shield Number

443768-0003

Repair Kit

NEW IN STOCK

Nozzle Ring Assembly

700968-0004

Turbine Housing AR

VNT1

Settings Wastegate adjustment (pressure)

0.171-0.176 bar

Settings Wastegate (lift shaft)

0.5-3.5 mm

Gasket (oil outlet)

210243

Gasket (turbine outlet)

210227

Gasket (turbine inlet)

210224

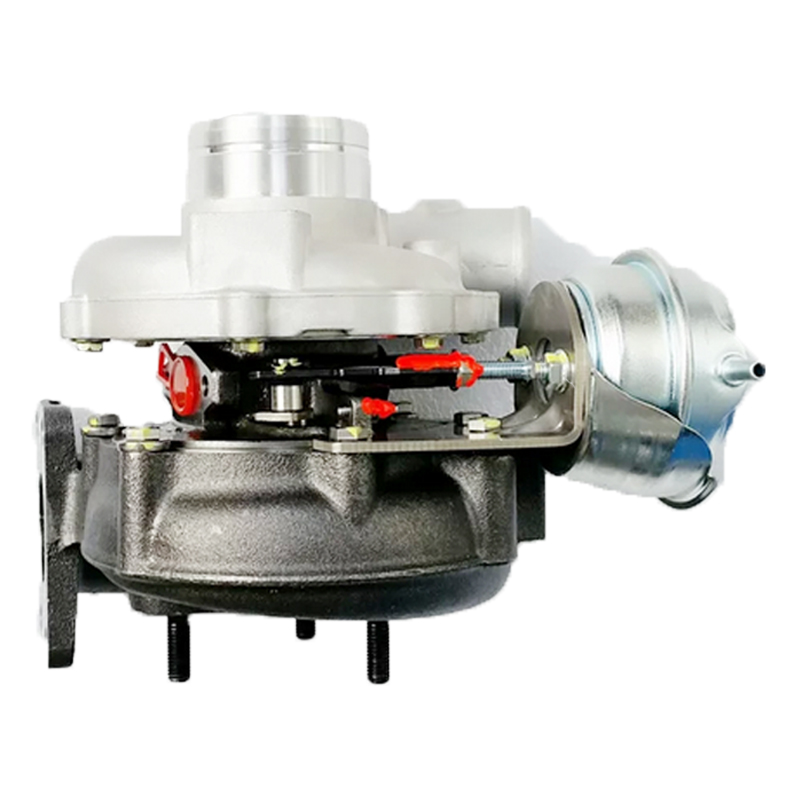

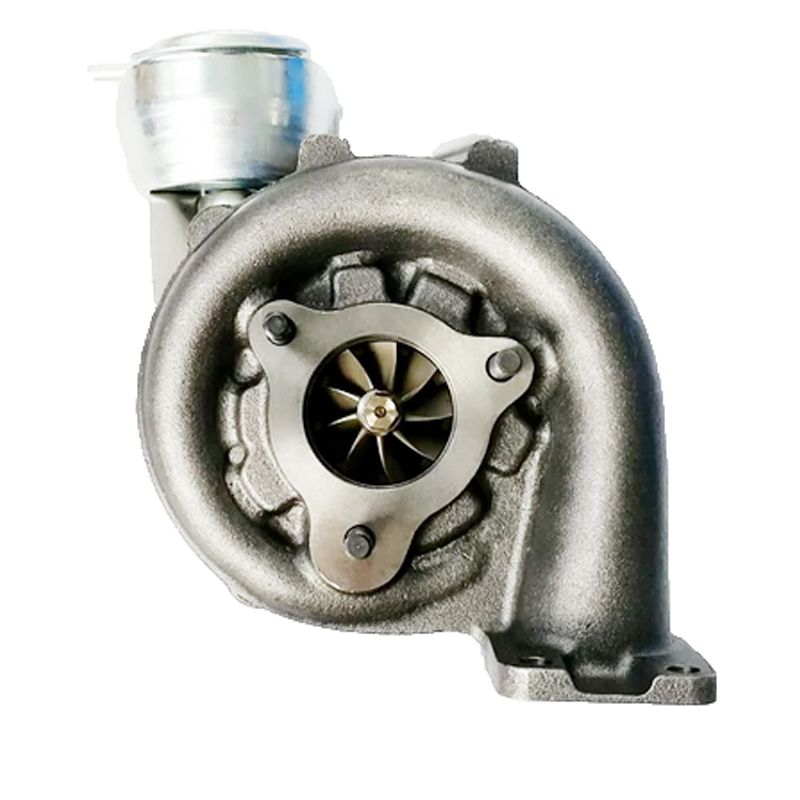

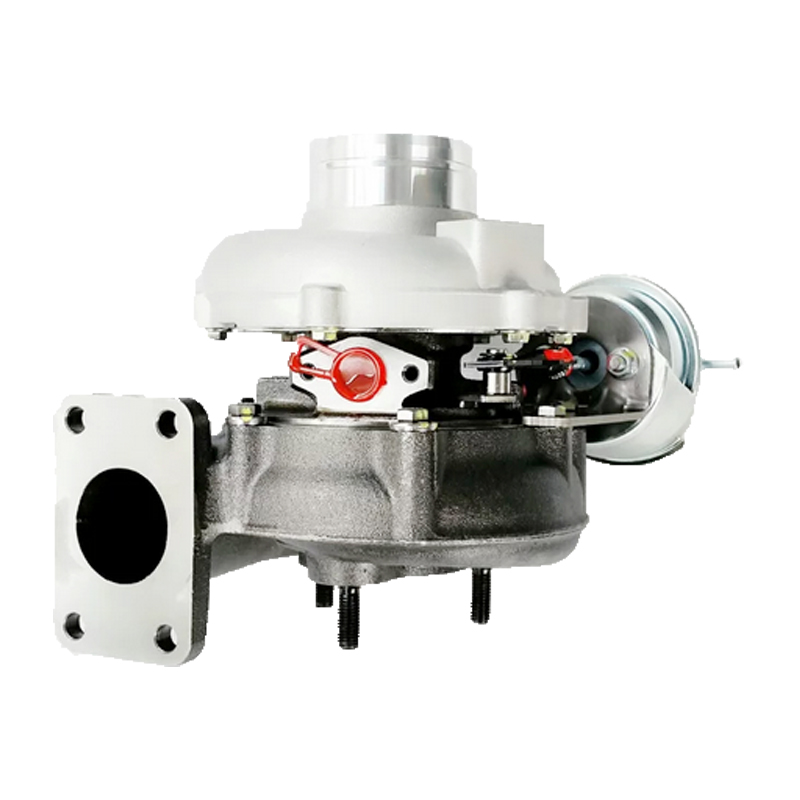

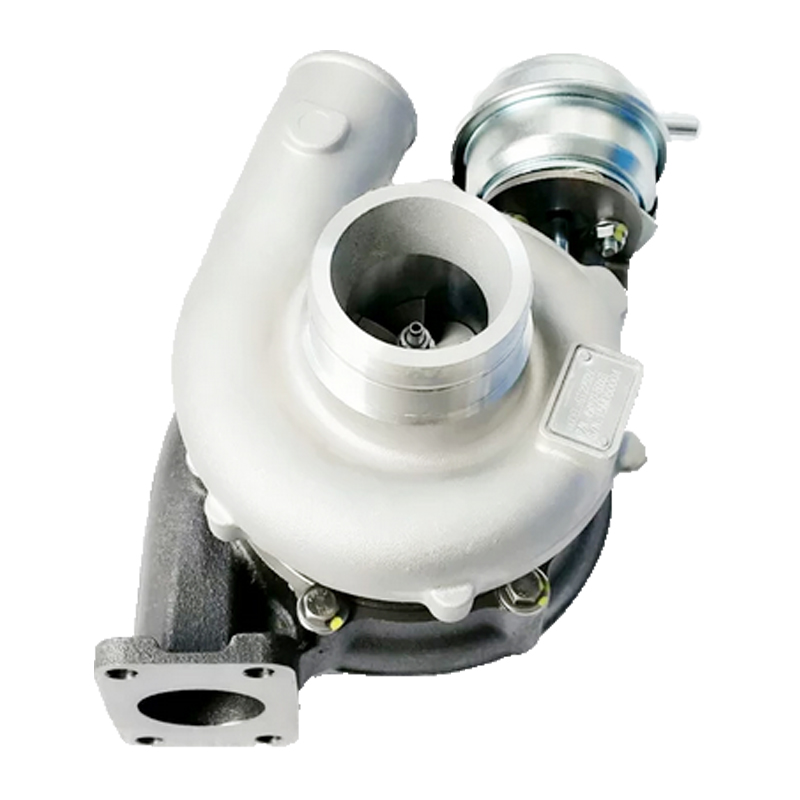

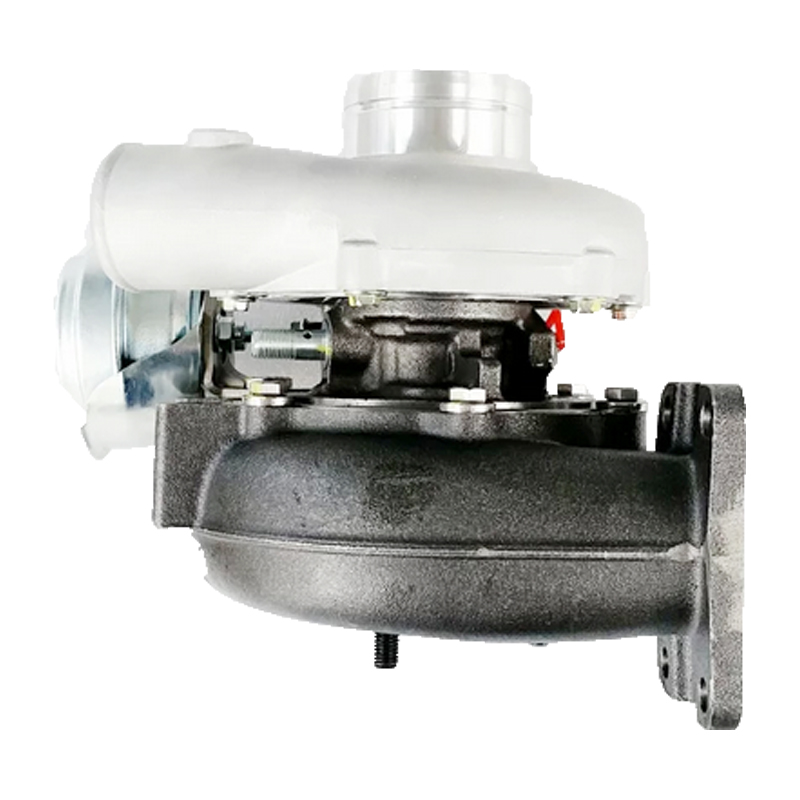

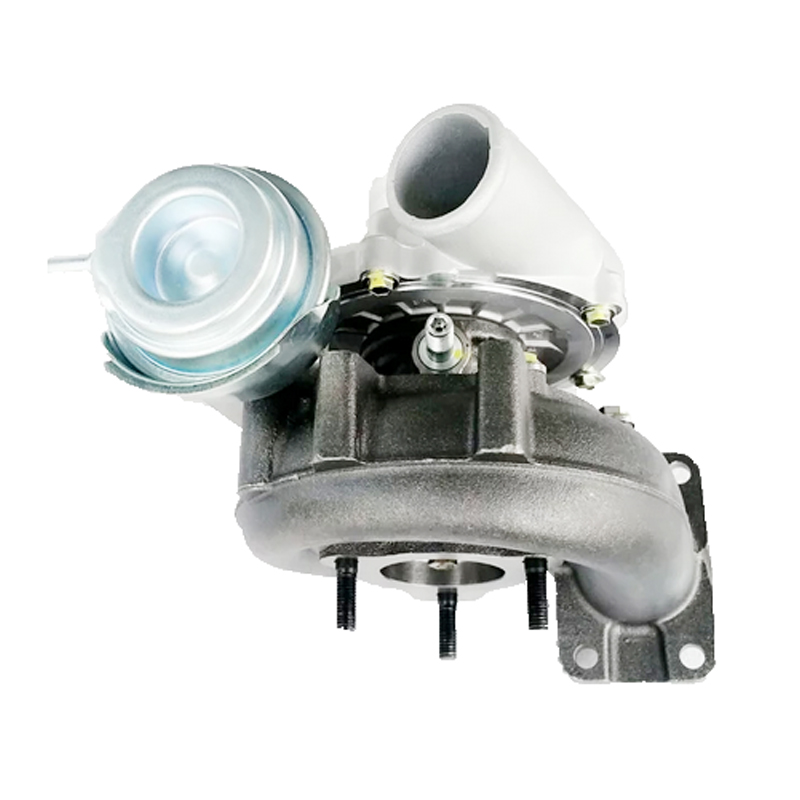

Product show

QQ截图20150701101617

QQ截图20150701101631

QQ截图20150701101724

QQ截图20150701101730

QQ截图20150701101736

QQ截图20150701101741
