  • Genuine Garrett Powermax turbo Upgrade IS38 Stage2 G25-660 Turbo Charger Upgrade S3 2.0 06K145722H 898200-5001 with full kits

Genuine Garrett Powermax turbo Upgrade IS38 Stage2 G25-660 Turbo Charger Upgrade S3 2.0 06K145722H 898200-5001 with full kits

Product description:

Turbo Model : IS38 Stage2

Part Number : 06K145722H

Brand Name : Booshiwheel

OE number : G25-660

标签 : Turbocharger

Welcome to contact us :



Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com



Specification

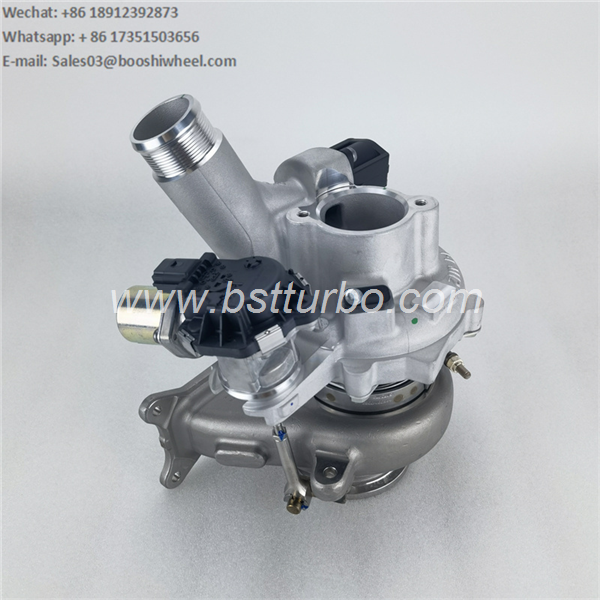

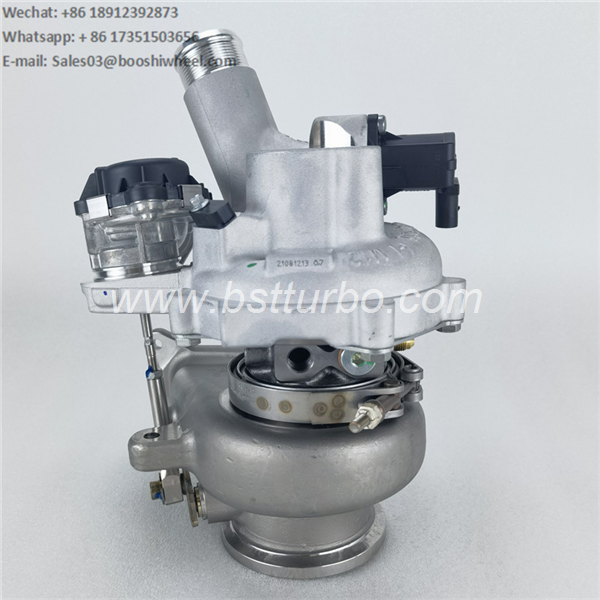

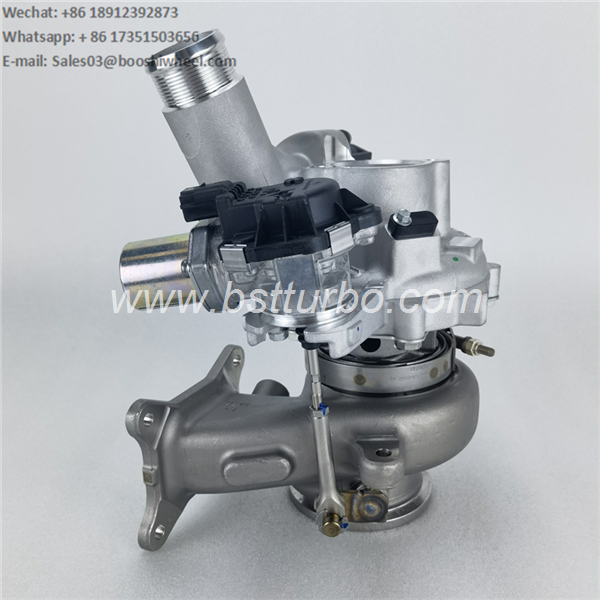

POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGERS
* 2014 - 2018 Volkswagen / Audi 2.0L TSI MK7 Stage 1 Turbochargers

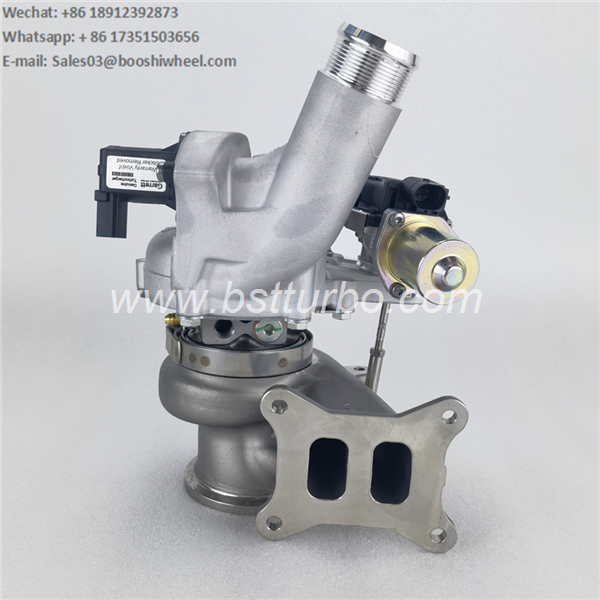

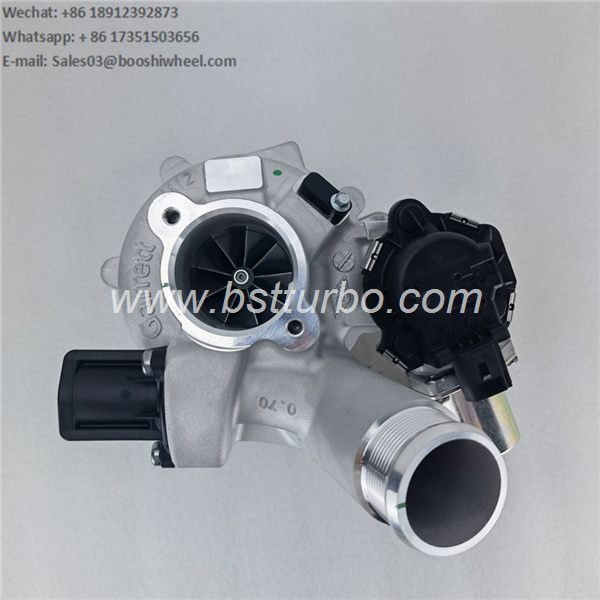

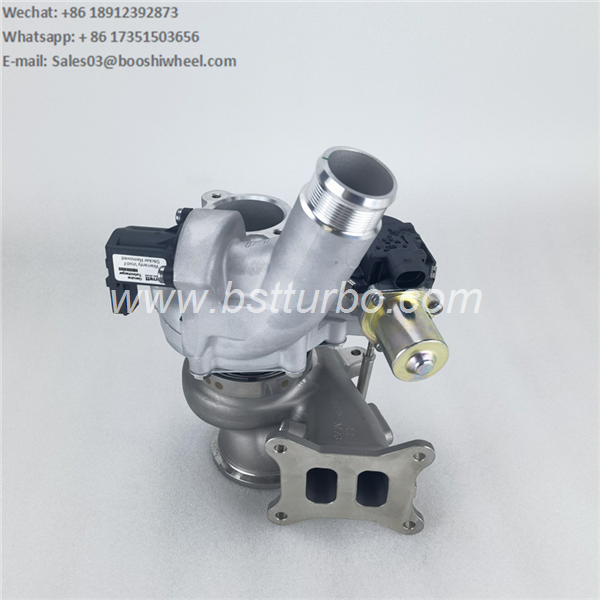

Garrett PowerMax™ turbocharger upgrades for the Volkswagen and Audi MK7 2.0L TSI engine platform
is engineered to increase engine performance while maintaining OEM installation specifications. Stage
1 (485 FWHP*) and Stage 2 (600 FWHP*) upgrades maximize efficiency and air flow compared to the OEM

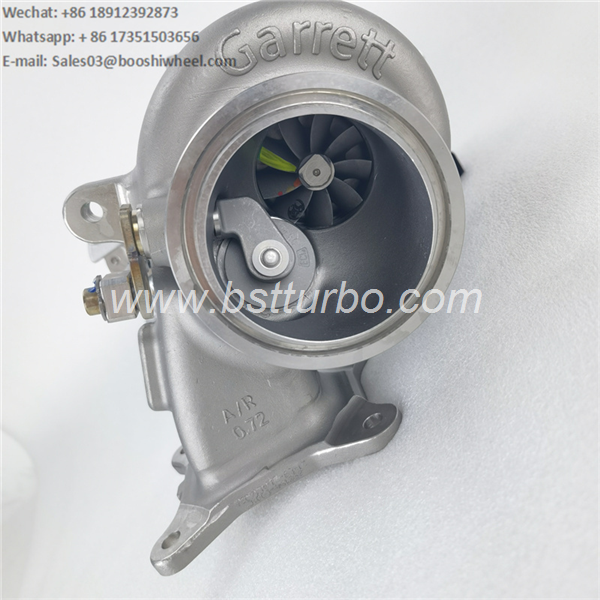

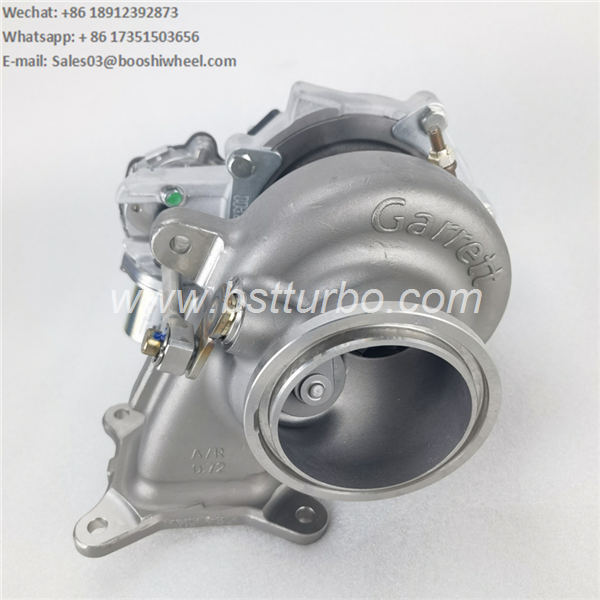

turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings
are rated for up to 1050° C. These turbochargers are fully assembled with a calibrated electronic actuator
and ancillary components for direct OEM fitment.
WARNING: Maximum allowable turbocharger speed is 185krpm (Stage 1) | 165krpm (Stage 2). The use
of this product above max turbocharger speed is at the owner’s risk, and can result in damage and

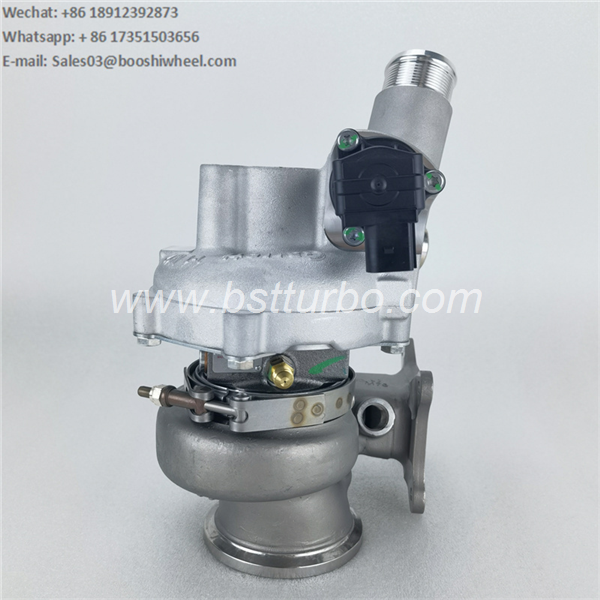

premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port
is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003
(Includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.

Part Number:
* Stage 2 = G898200-5001W

Vehicle Applications:
* Audi TT 2014 + Base 2.0L L4 - Gas IS20
* Audi TTS 2014 + Base 2.0L L4 - Gas IS38
* Audi A3 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
* Audi A3 Quattro 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
* Audi S3 2015 - 18 Premium Plus, Prestige 2.0L L4 - Gas IS38
* VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 - Gas IS12
* VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 - Gas IS20
* VW Golf R 2015 Base 2.0L L4 - Gas IS38
* VW Golf 2016 Base, S, SE, SEL 2.0L L4 - Gas IS12
* VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 - Gas IS20
* VW Golf R 2016 Base 2.0L L4 - Gas IS38
* VW Golf 2017 S, Wolfsburg Edition 2.0L L4 - Gas IS12
* VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 - Gas IS12
* VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 - Gas IS20
* VW Golf R 2017 Base 2.0L L4 - Gas IS38
* VW Golf 2018 S, SE, SEL 2.0L L4 - Gas IS12
* VW Golf Alltrack 2018 S, SE, SEL 2.0L L4 - Gas IS12
* VW Golf GTI 2018 Autobahn, S, SE 2.0L L4 - Gas IS20
* VW Golf R 2018 Base 2.0L L4 - Gas IS38

OEM Turbocharger Applications:
* IS12 06K124713L
* IS20 06K145875M
* IS38 06K145722H

Note:

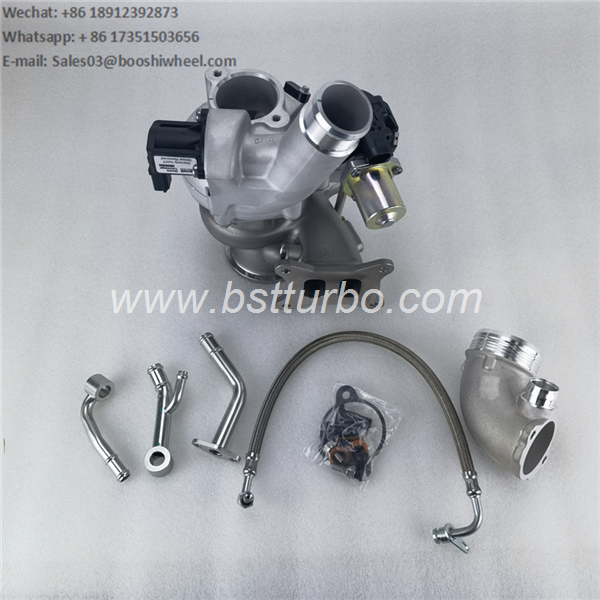

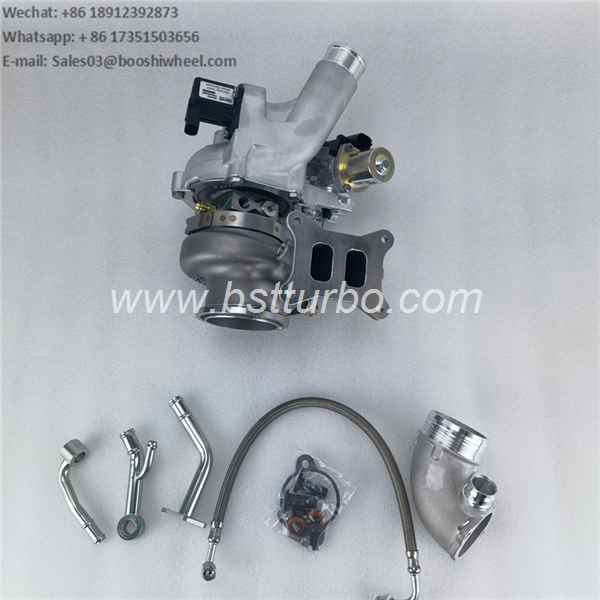

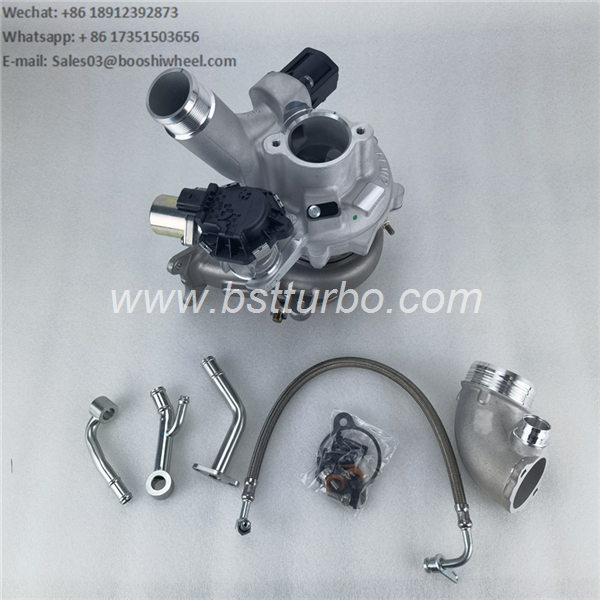

* Complete water and oil fitting kit included
* Gasket Kit included
