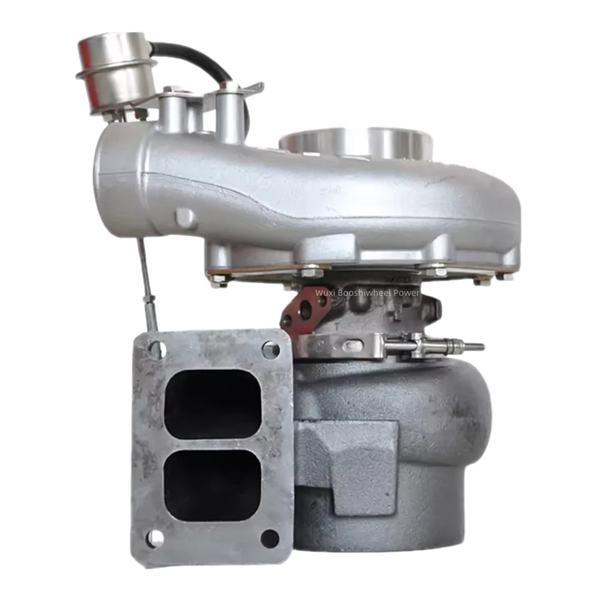

GT4294S Turbocharger 452235-0002 452235-5002S 1319284 for Engine XF315M-F85

Product description:

Turbo Model : GT4294S 452235-5002S

Fuel : Diesel

Part Number : 452235-5002S

Brand Name : Booshiwheel

现价 : 132

Engine Manufacturer : DAF

Displacement : 12.6L, 12580 ccm, 6 Cylinders

KW : 381/430

OE number : 1319284 1319284.0

Year : 1997-

Manufacturer Part Number : 452235-0002 452235-2 452235-0008

Applications : 1997- DAF XF95, CF85 With XF315M-F85 Engine

标签 : XF315M-F85

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 452235-5002S

Previous Version 452235-0002 452235-2 452235-0008

OE number 1319284 1319284.0

Description Truck XF315M-F85

CHRA 436103-0002 (436103-5002S)(1000010419) $461.00 NEW IN STOCK, MADE IN USA

Turbo Model GT4294S

Displacement 12.6L, 12580 ccm, 6 Cylinders

KW 381/430

Fuel Diesel

Engine Manufacturer DAF

Angle α (compressor housing) 170º

Angle β (turbine housing) 115º

Bearing Housing 410310-0004 (410310-0001)(1900011222) $80.00 NEW IN STOCK

Turbine Wheel 434281-0020 (Ind. 72.5 mm, Exd. 82. mm, 10 Blades)(1100016359) $149.00 NEW IN STOCK

Comp. Wheel 434354-0004 (434335-0004)(Ind. 69.1 mm, Exd. 94.1 mm, Trm 54, 6+6 Blades)(1200016310) $67.00 NEW IN STOCK

Back plate 448890-0008 (1300016086) $59.90 NEW IN STOCK

Heat shield Number 410366-0007 (410366-0003, 410366-0004)(2030016004) $16.42 NEW IN STOCK

Repair Kit 709153-0001 (709153-0002, 709153-0005)(1102042750, 5000010190) (13***75) $90.80 NEW IN STOCK

Turbine Housing 436126-0003

Compressor Cover 436434-0003

Actuator 434133-0027

Settings Waste gate (pressure) 1.800-1.900 bar

Settings Waste gate (lift shaft) 1.00 mm

Gasket (turbine inlet) 132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000)(1900000003)(417382 Replaced by 470939, 20784537) $13.20

Gasket (turbine outlet) 210222 (Stainless Steel)

Gasket oil inlet 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) $4.38

Gasket (oil outlet) 210060 (311585, 148062, 2475013) (Paper) $4.48

Gasket Kit (2090505177)

Replaced By 452235-0008

Manufacturer Honeywell-Garrett

Applications

1997- DAF XF95, CF85 With XF315M-F85 Engine
