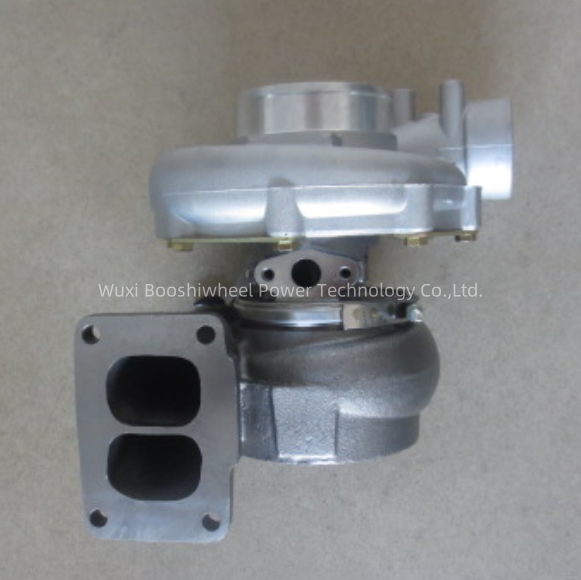

GT4294 Turbocharger 706844-5007S 706844-0003 1609989 for Engine XE280C, DE315CO, XE315CO, XE315M Euro 3

Product description:

Turbo Model : GT4294 706844-5007S

Fuel : Diesel

Part Number : 706844-5007S

Brand Name : Booshiwheel

现价 : 176

Engine Manufacturer : DAF

Displacement : 12.6L, 12580 ccm

KW : 228/280/315/430 HP

RPM Max : 2000

OE number : 1609989 1608999 1377427 1357830

Year : 1999-

Manufacturer Part Number : 706844-0003 706844-0005 706844-0006 706844-0007

Applications : 1999- DAF 95XF with XF315M, XE315C Engine

标签 : XE280C,DE315CO,XE315CO,XE315M,Euro,3

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 706844-5007S

Previous Version 706844-0003 706844-0005 706844-0006 706844-0007

OE number 1609989 1608999 1377427 1357830

Year 1999-

Description DAF 95XF Truck

CHRA 434251-0041 (434251-5041S)

Turbo Model GT4294

Engine XE280C DE315CO XE315CO XE315M Euro 3

Engine Manufacturer DAF

Displacement 12.6L, 12580 ccm

KW 228/280/315/430 HP

RPM Max 2000

Fuel Diesel

Angle α (compressor housing) 170°

Angle β (turbine housing) 115°

Bearing housing 452698-0007

Turbine Wheel 434281-0018

Comp. Wheel 434354-0026

Back plate 448890-0007

Heat Shield 410366-0003

Repair Kit 709153-0005

Turbine Housing 436740-0011

Compressor Cover 707709-0095/449632-0006

Gasket (turbine inlet) 409038-0000

Gasket (turbine outlet) 210239

Gasket oil inlet 210019

Gasket (oil outlet) 210060

Manufacturer Honeywell-Garrett

Applications

1999- DAF 95XF with XF315M, XE315C Engine

2002- DAF XF95 .380 with XE280C Engine

2002- DAF XF95 .430 with XE315C Engine
