Product description:
Turbo Model : T04E06
Fuel : Diesel
Part Number : 466616-5010S ,466616-9010, 466616-0010
Brand Name : Booshiwheel
Engine Manufacturer : Scania
Displacement : 9000 ccm, 6 Cylinder
KW : 150HP
RPM Max : 1200
OE number : 571589, 1317655
Year : 1990
Manufacturer Part Number : 466616-5010S
Applications : 1990- Scania 92, 93 Truck 92M, 93M

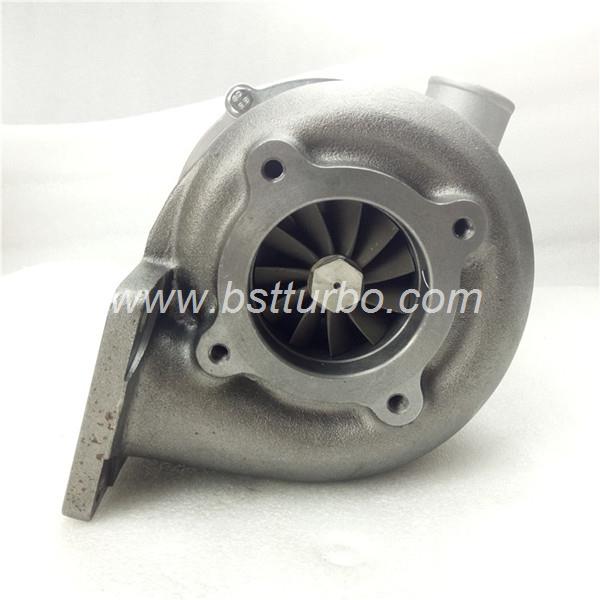

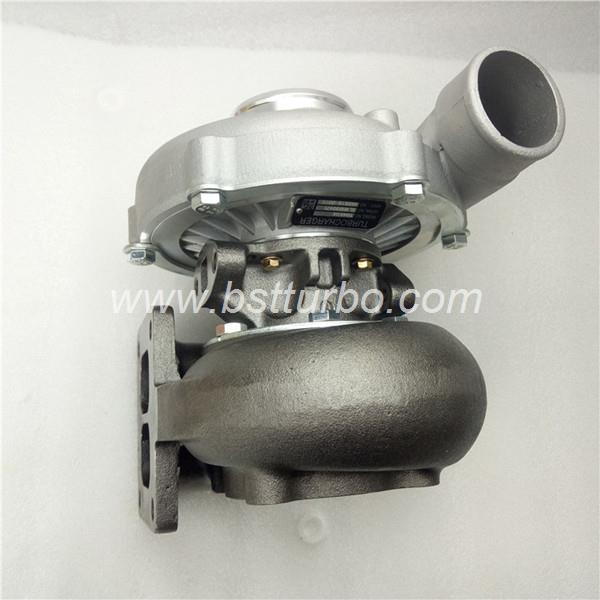

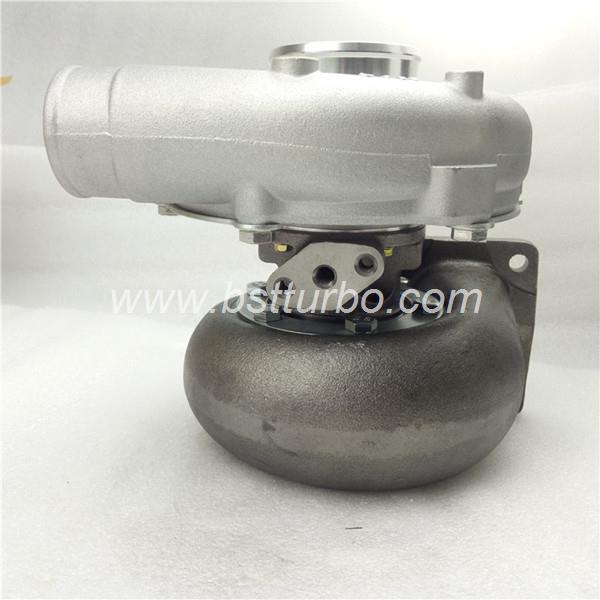

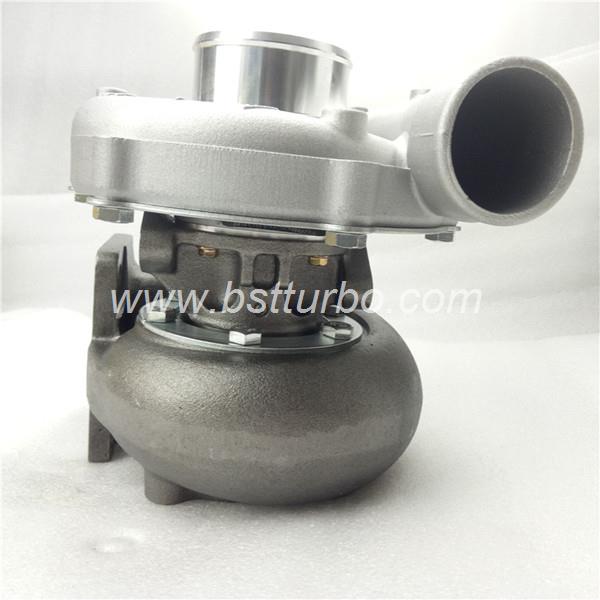

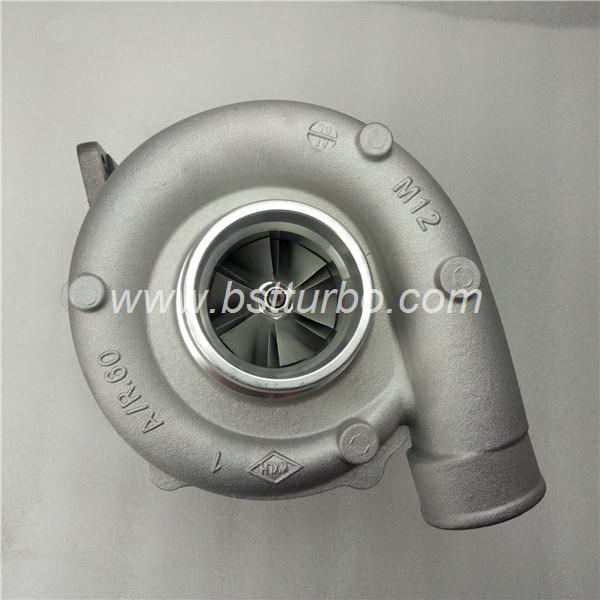

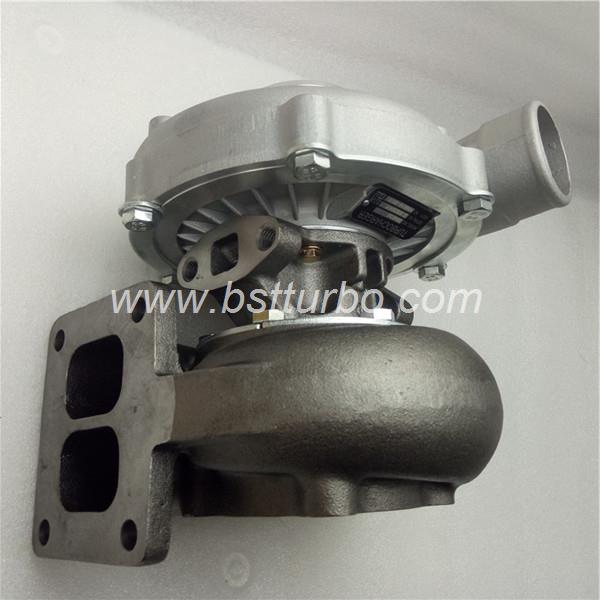

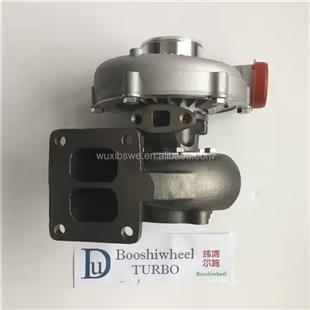

T04E06 Turbo 466616-0010 571589 466616-9010 1317655 466616-5010S DSC9 engine
turbocharger for Scania 92, 93 Truck 92M, 93M
| Part Number | 466616-5010S |
| Previous Version | 466616-0010, 466616-9010 |
| OE number | 571589, 1317655 |
| Description | Scania 92, 93 Truck |
| CHRA | 408105-0417 (408105-5417S) |
| Turbo Model | T04E06 |
| Engine Manufacturer | Scania |
| Fuel | Diesel |
| Engine | DSC9 |
| Displacement | 9000 ccm, 6 Cylinder |
| Bearing Housing | 430027-0025/430027-0022/430027-0048 (312379, 186879, 186881)(1100030450)(Oil Cooled) |
| Turbine Wheel | 446905-0002 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003) |
| Comp. Wheel | 448048-0003 (Ind. 56.6 mm, Exd. 76.1 mm, Trm 55/65, 6+6 Blades) |
| Back plate | 408045-0031 (ME078204) |
| Heat shield Number | 409299-0000/409299-0001 (311943, 7N0012, 3524773B) |
| Repair Kit | 468100-0000 (188401-0000, 310063, 3524796, 2W0716, 6N7236)(1100040750) |
| Turbine Housing | 408286-0046 |
| Compressor Cover | 443219-0191 |
| Turbine Housing AR | 1.15 |
|
Part Number |
466616-5010S |
| Previous Version | 466616-0010, 466616-9010 |
| OE number | 571589, 1317655 |
| Description | Scania 92, 93 Truck |
| CHRA | 408105-0417 (408105-5417S) |
| Turbo Model | T04E06 |
| Engine Manufacturer | Scania |
| Fuel | Diesel |
| Engine | DSC9 |
| Displacement | 9000 ccm, 6 Cylinder |
Application
1990- Scania 92, 93 Truck 92M, 93M
