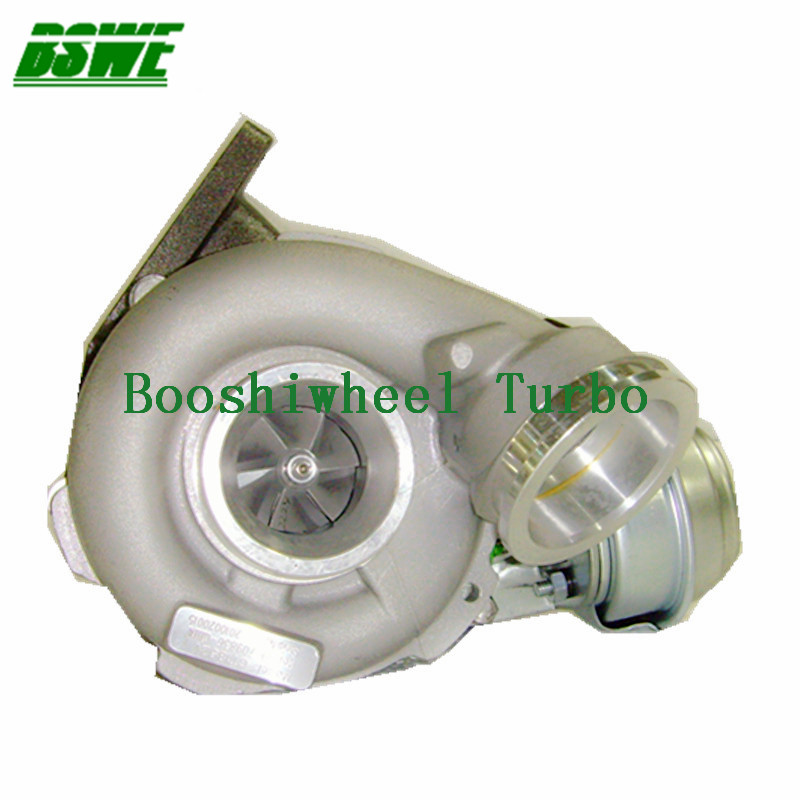

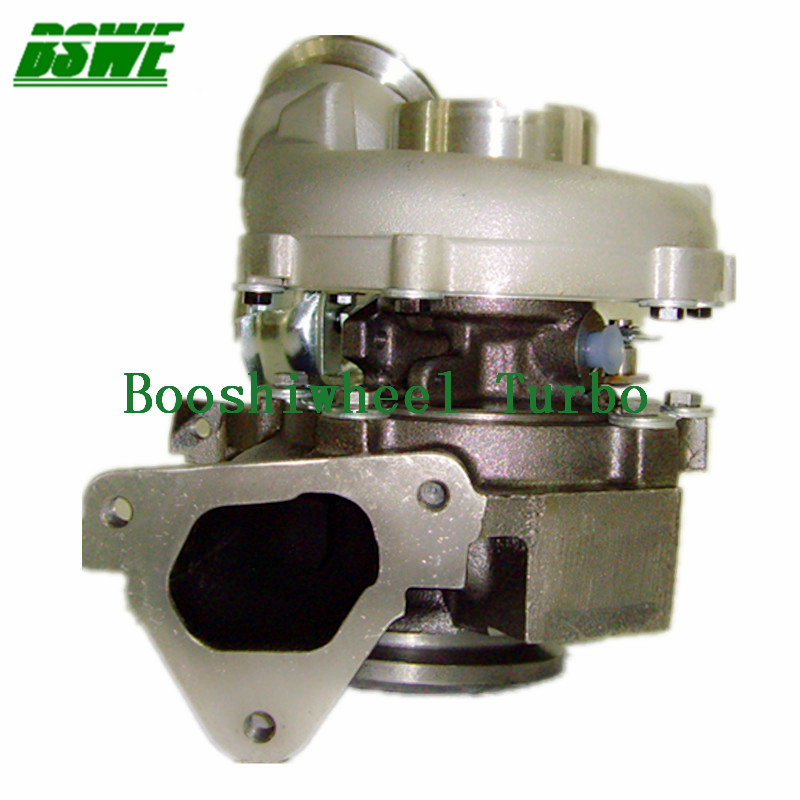

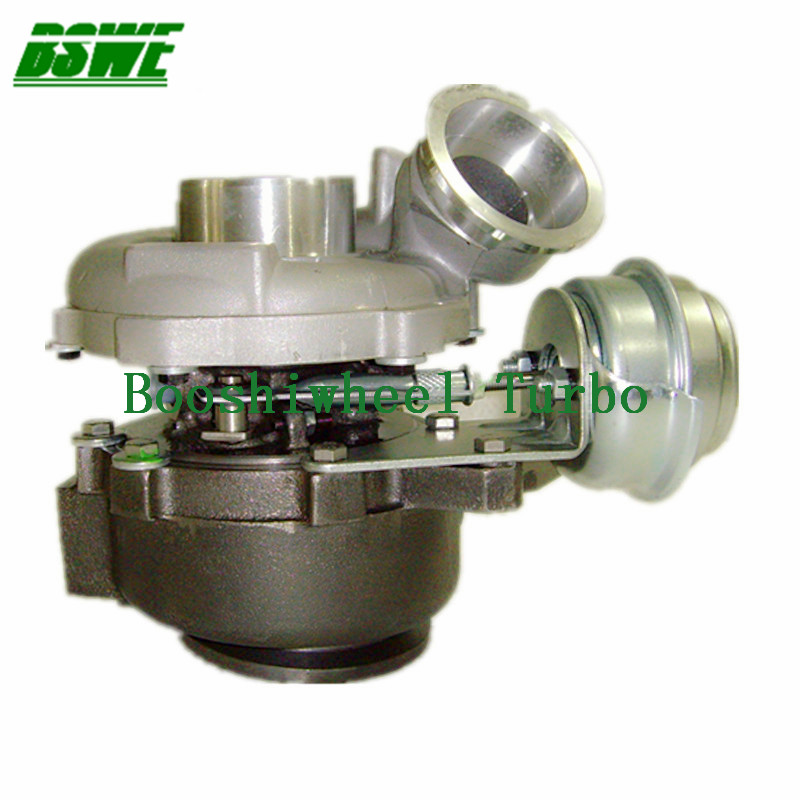

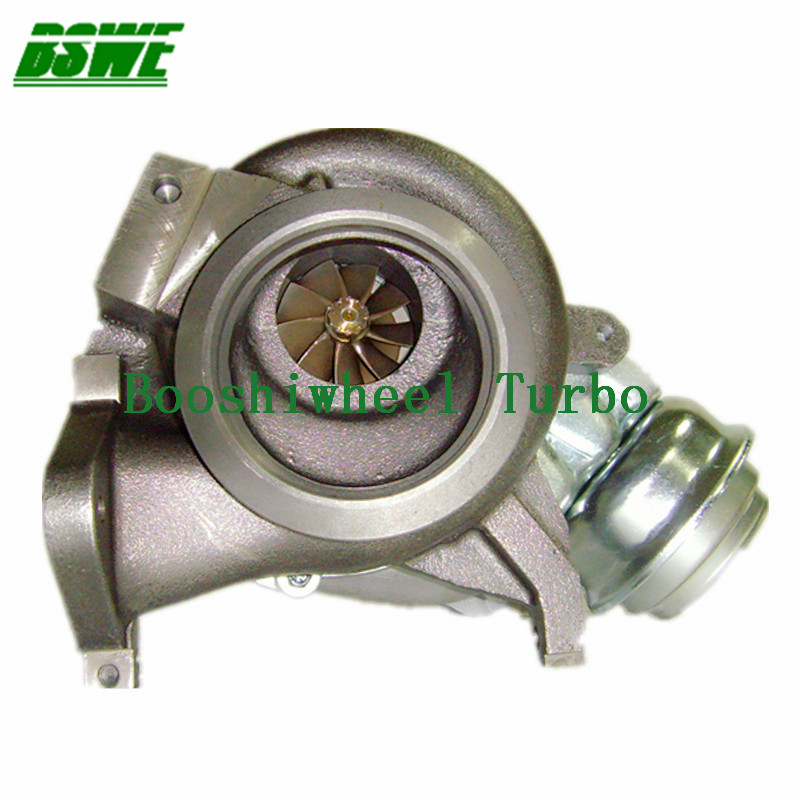

GT1852V 709836-0001 709836-5004 turbo charger for Mercedes Benz

Product description:

Turbo Model : 709836-0001 709836-0003

Fuel : Diesel

Part Number : 709836-0001 709836-0003

Brand Name : Booshiwheel

Displacement : 2.2L, 2148 ccm

KW : 80/95/105

OE number : 6110960899, A6110960899, A6110961699, A6110961599

Year : 1999-06

Applications : 1999-06 Mercedes Truck Sprinter I 211CDI/311CDI/411CDI with OM611 DE22LA Engine

product describtion

Part number	709836-5004S
Previous Version	709836-0001, 709836-0003, 709836-0004
OE number	6110960899, A6110960899, A6110961699, A6110961599
Year	1999-06
Description	Commercial
CHRA	703890-0045 NEW IN STOCK, MADE IN USA
Turbo Model	GT1852V
Engine	OM611, OM611 DE22LA
Engine Manufacturer	Mercedes Benz
Displacement	2.2L, 2148 ccm
KW	80/95/105
Bearing Housing	722282-0013
Turbine Wheel	704580-0001
Comp. Wheel	436131-0021
Back plate	701335-0003
Heat shield Number	433112-0001
Repair Kit	732252-0001
Thrust Kit	732248-0003
Nozzle Ring Assemblies	704013-0013/709835-0001
Turbine Housing AR	VNT2
Settings Wastegate (pressure)	0.297 - 0.303 bar
Settings Wastegate (lift shaft)	1.5 - 3.4 mm
