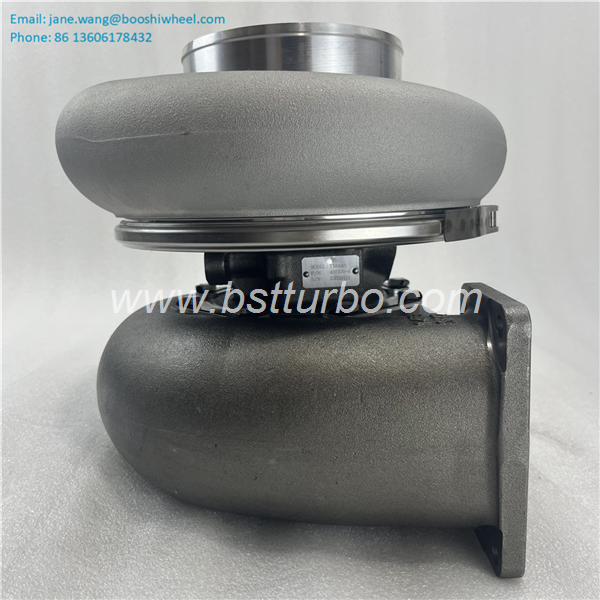

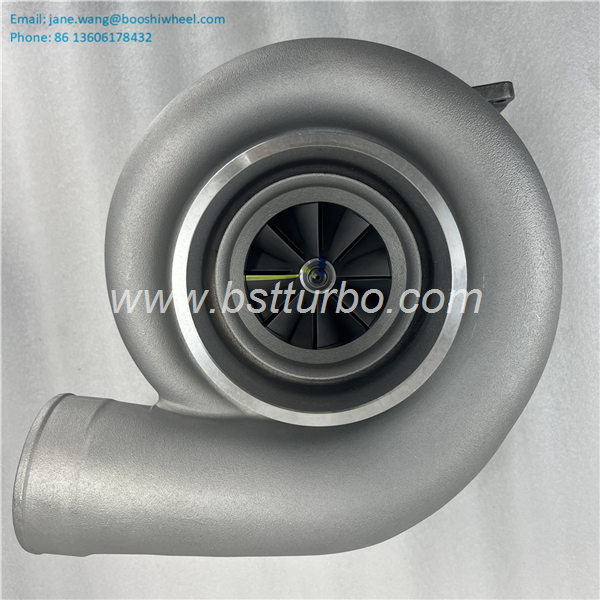

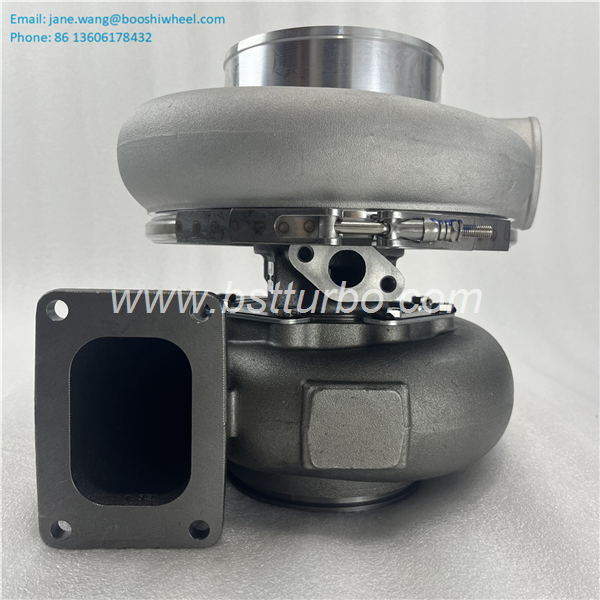

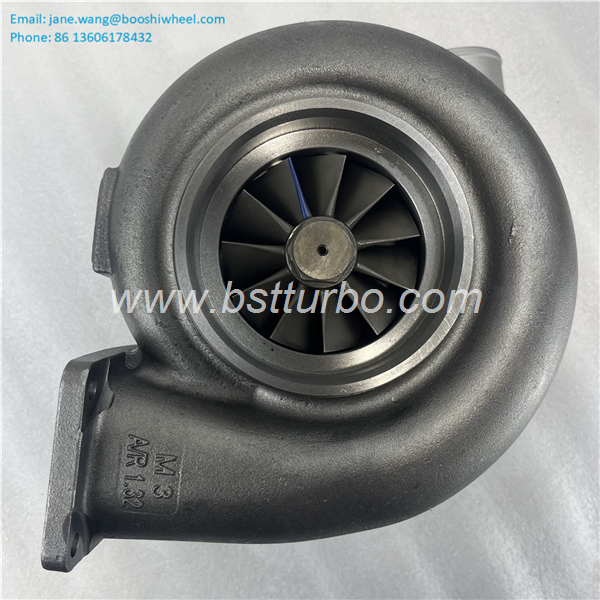

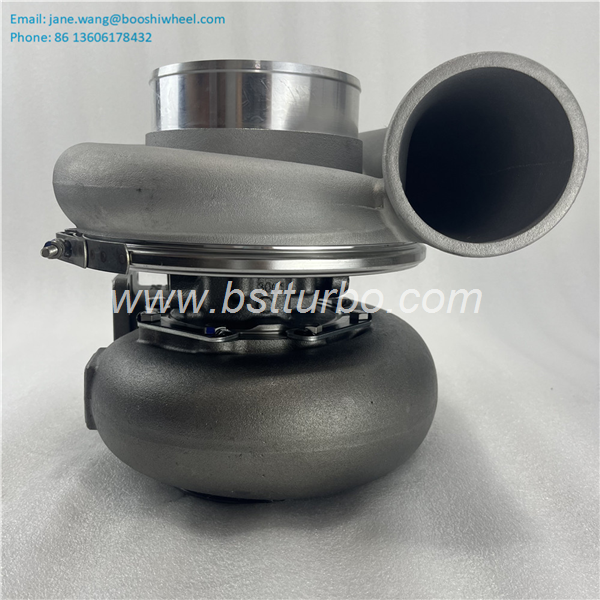

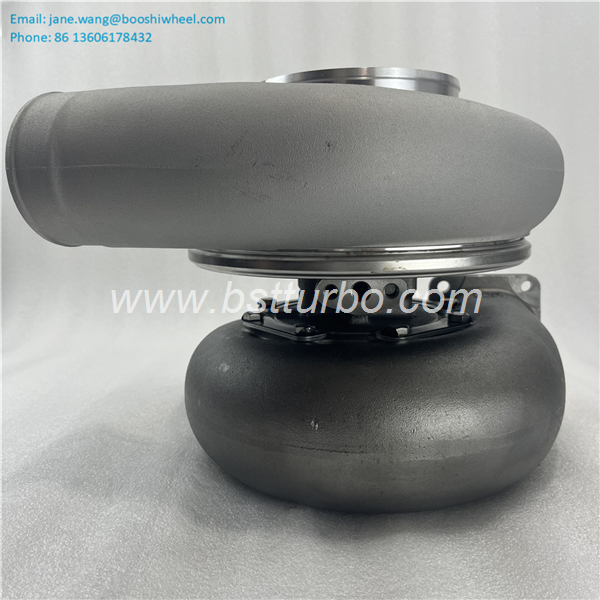

T18A40 Turbocharger 407370-5009S 407370-0009 407370-5004S 407370-9 407370-9009 Detroit diesel inter cooled Engines 6-71 and 12V71

Product description:

Turbo Model : T18A40

Fuel : Diesel

Part Number : 407370-5009S 407370-0009 407370-5004S 407370-9 407370-9009

Brand Name : Booshiwheel

Engine Manufacturer : 12V149T, 12V150T, 8V71T, 16V149T MTU, 16V149T, 8V71T

Displacement : 13963/9300/39100 ccm

KW : 163HP

OE number : 5103838 5141854 R5103838 R5141854

Manufacturer Part Number : Detroit diesel inter cooled Engines 6-71 and 12V71

Applications : Detroit MTU Diesel Truck, Marine, Industrial Generator Engine with 8V71/149, 16V149T Engine

标签 : turbocharger

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	407370-5009S
Previous Version	407370-0009, 407370-5004S, 407370-9, 407370-9009
OE number	5103838, 5141854, R5103838, R5141854
Description	Truck, Gen. Set, Marine, Industrial Generator Engine
CHRA	407302-0001 (407302-5001S, 407302-0005)(05149299, 118002XR, 5149637, R5149637, 5199020) $975.00 NEW IN STOCK, MADE IN USA
Turbo Model	T18A40
Engine	12V149T, 12V150T, 8V71T, 16V149T MTU, 16V149T, 8V71T
Engine Manufacturer	Detroit diesel inter cooled Engines 6-71 and 12V71
Cylinders	V8/V12 Cylinders
Displacement	13963/9300/39100 ccm
KW	163 HP
NSN	2950010898895, 2950-01-089-8895
Fuel	Diesel
SN	1704770-02C
Bearing Housing	407214-0010 (407214-0011)(3022514, 5149403, 5199024)(Oil Cooled) $210.00 NEW IN STOCK
Turbine Wheel	407218-0006 (407293-0004)(207424, 4061087, 6374154, 23511699, 5149298, 202851)(Ind. 95.65 mm, Exd. 127.05 mm, 11 Blades) $248.56 NEW IN STOCK
Comp. Wheel	407869-0000 (5199023)(Ind. 82.65 mm, Exd. 127.0 mm, 8+8 Blades, Billet) $299.90 NEW IN STOCK
Back plate	407215-0000 (407215-0006)(5199028, 207427, 490335, 637417, 3004583, 5149399, 4072156) $208.09 NEW IN STOCK
Heat shield Number	406687-0002 (5199055)(Cast) $90.91 NEW IN STOCK
Repair Kit	468107-0000 (1100181752) $93.60 NEW IN STOCK
Turbine Housing	407738-0003 (5199484) $375.39 NEW IN STOCK
Compressor Cover	407333-0000 (5199429) $407.27 NEW IN STOCK
Turbine Housing AR	1.32
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749, 7M7273) $14.02
Gasket oil inlet	210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035) $4.40
Gasket (oil outlet)	210018 (409267-0002, 3500682, 3519763, 3709738, 9738, 9988, 1S4810, 201048, 129120)(1900000025) $4.22
Manufacturer	Honeywell-Garrett

Applications

Detroit MTU Diesel Truck, Marine, Industrial Generator Engine with 8V71/149, 16V149T Engine
