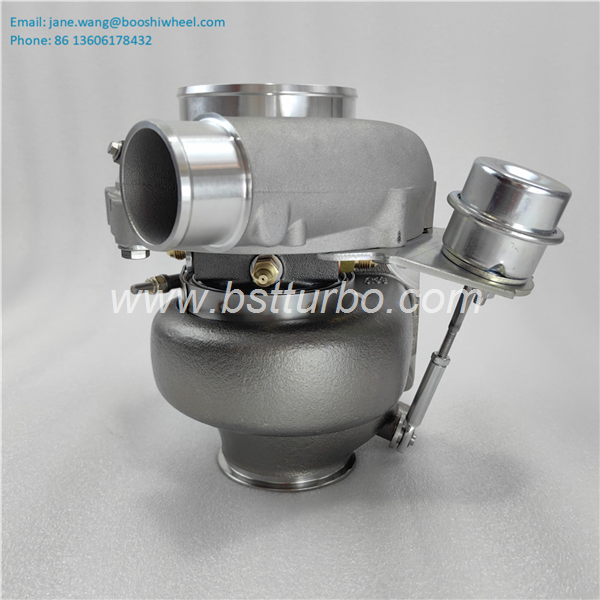

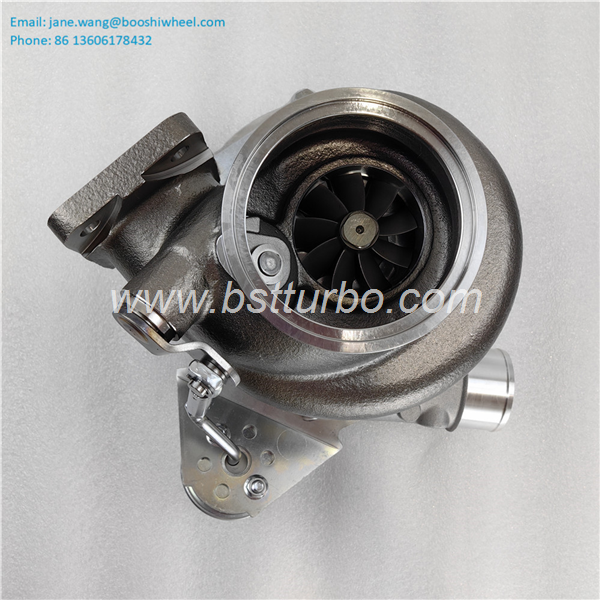

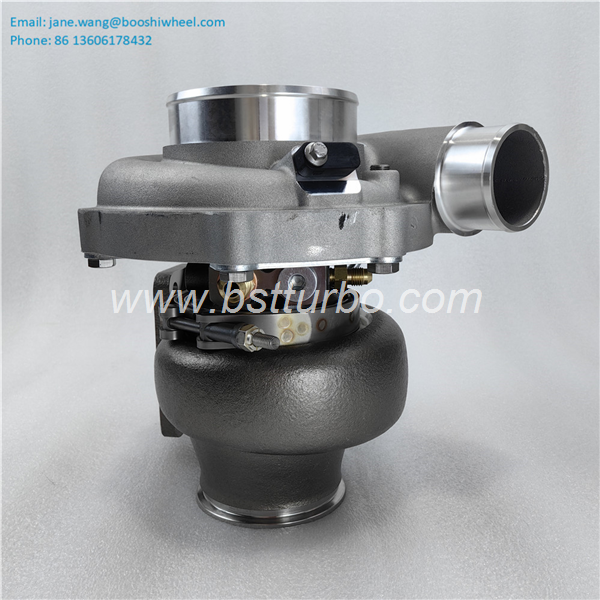

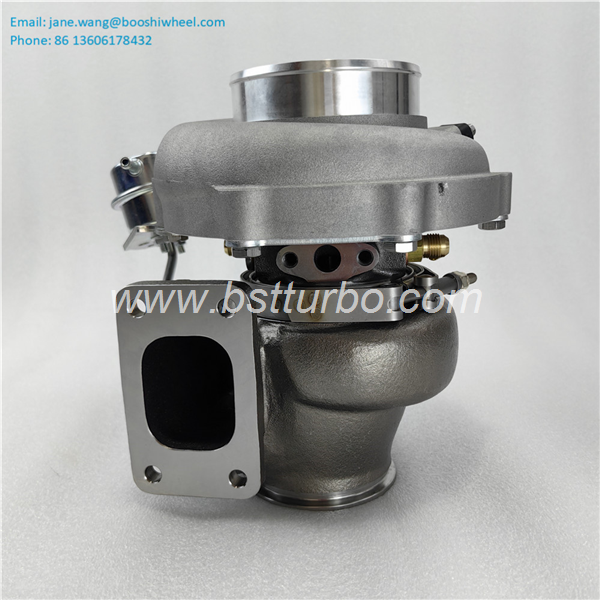

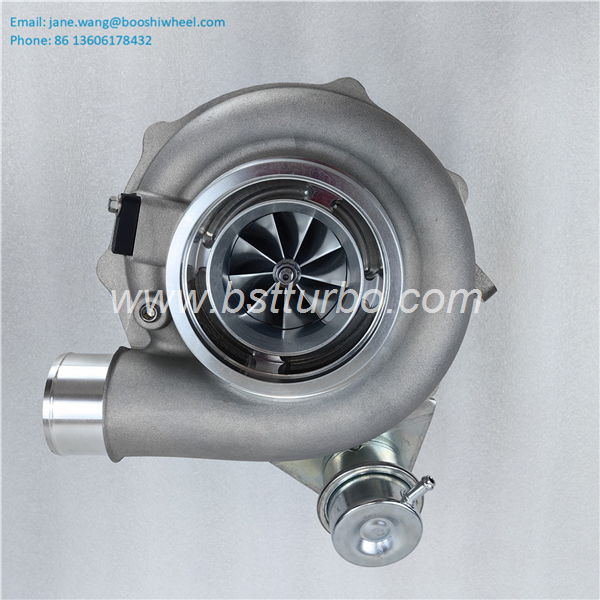

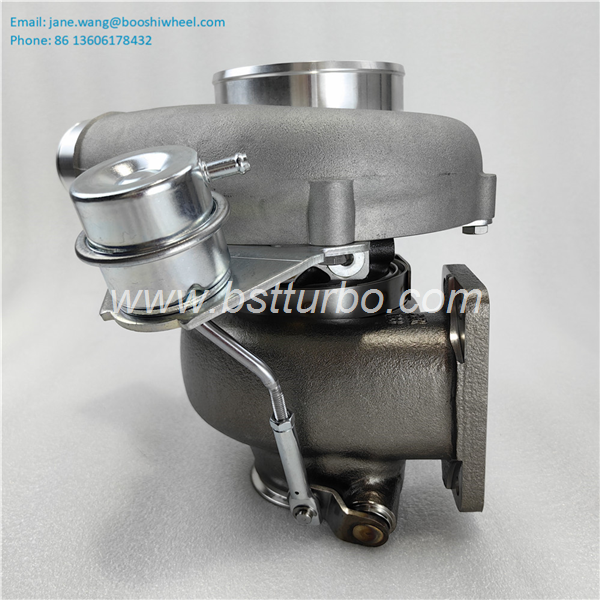

standard rotation G30 G30-770 Turbo T3 0.83 A/R Stainless Steel Turbine Housing 880704-5005S Ball Bearing Wastegate Turbocharger

Product description:

Turbo Model : G30 G30-770

Fuel : PETROL

Part Number : 880693-5002S

Brand Name : Booshiwheel

Engine Manufacturer : Racing car

Displacement : 2.0 - 3.5L

KW : 475 - 770HP

OE number : 740902-0090

Manufacturer Part Number : 3.55 inch (90mm)O.D. w/81mm centering ring V-Band

Applications : Water and Oil cooled system.

标签 : G30-770

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

SUPER CORE PN	880693-5002S
turbine housing PN	740902-0090
Model	G30 G30-770
Displacement	2.0 - 3.5L
Rotation	standard rotation
power	475 - 770HP
compressor inducer	58 mm
compressor exducer	71 mm
compressor housing A/R	0.72
TURBINE HOUSING A/R	0.83
Compressor TRIM	65
compressor AIR INLET	Hose 4" (101.6mm)
Compressor Air Outlet:	Hose 2.00" (51.15mm)
Turbine inducer	60 mm
turbine housing	Wastegated turbine housings include actuator assembly.
Turbine Housing Inlet	T3
Condition	brand new
Turbine Housing Outlet:	3.55 inch (90mm)O.D. w/81mm centering ring V-Band V-Band 3.55" (90.16mm)
Turbine exducer	55 mm
turbine TRIM	84
Bearing housing	Water and Oil cooled system.
