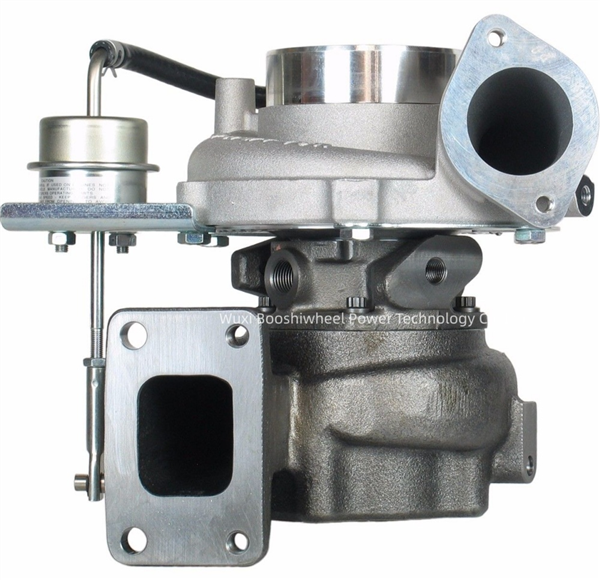

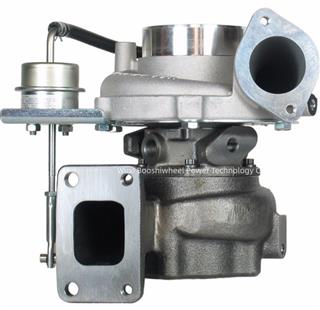

Genuine GT3271LS Turbocharger 787846-5001S 787846-0001 24100-4640A S1760-E0200 for Engine J08E SK350-8

Product description:

Turbo Model : GT3271LS 787846-5001S

Part Number : 787846-5001S

Brand Name : Booshiwheel

现价 : 470

Engine Manufacturer : Hino

Displacement : 7.7L, 7700 ccm, 6Cylinders

KW : 132 kW/177 HP

RPM Max : 2100 RPM

OE number : S1760E0200 S1760-E0200 241004640A 24100-4640A S1760-E0201

Year : 2005-2009

Manufacturer Part Number : 787846-0001 787846-5001 764247-0001 764247-5001 764247-5001S

Applications : 2005-2009 KobelcoSK350,SK350-8Excavator withJ08E Engine

标签 : J08E

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 787846-5001S

Interchangeable Number 787846-0001 787846-5001 764247-0001 764247-5001 764247-5001S

OEM Number S1760E0200 S1760-E0200 241004640A 24100-4640A S1760-E0201

Turbo Model GT3271LS

Manufacturer: Honeywell-Garrett

Year: 2005-2009

Engine J08E

Engine Manufacturer: Hino

Displacement: 7.7L, 7700 ccm, 6Cylinders

Power: 132 kW/177 HP

Speed:2100 RPM

Angle a (Compressor Housing):230° Angleβ(Turbine Housing):285° Actuator: 480021-0058

Back Plate:3530923(1154351300) Bearing Housing:479822-0008

CHRA:700267-0009(700267-5009S) Compressor Cover:733916-0169

Compressor Wheel:434244-0015(Ind.40.06 mm, Exd. 70.97 mm, Trim32,6+6 Blades,Super Back) Heat Shield:447553-0006

Repair Kit: 709147-0001(1102032750) Turbine Housing:447685-0113

Turbine Wheel:480231-0002(lnd. 62. mm, Exd. 54.5 mm, 10 Blades) Wastegate Settings(Lift Shaft):0.38mm

Wastegate Settings(Pressure):1.767-1.883 bar

Application:

2005-2009 Kobelco Truck, Construction Equipment with J08E Engine

2005-2009 KobelcoSK350,SK350-8Excavator withJ08E Engine
