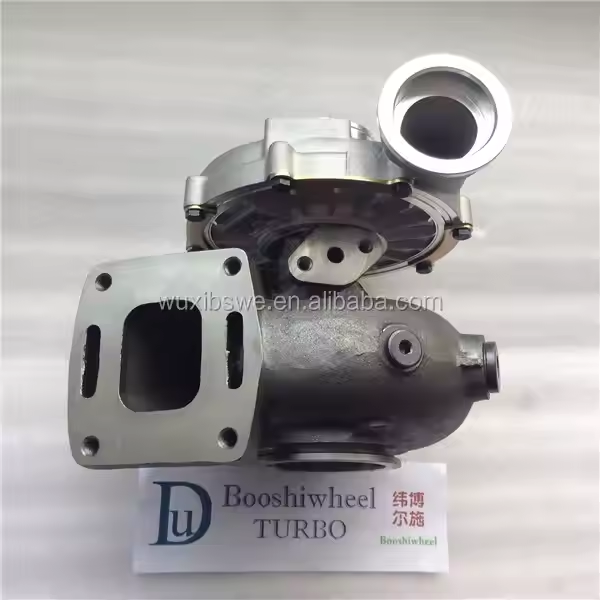

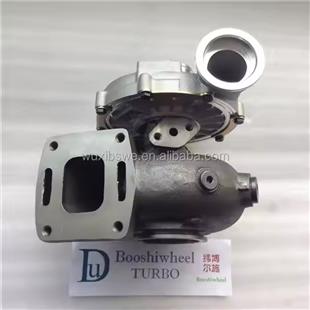

K26 Turbocharger 53269886094 53269706094 53269886018 3581528 for Engine TAMD31, TMD31

Product description:

Turbo Model : K26-2960MXA6.71GAAXB

Part Number : 53269886094

Brand Name : Booshiwheel

现价 : 265

Displacement : 2.4L, 2400 ccm, 4 Cylinders

KW : 80/109

RPM Max : 3600

OE number : 3581528 3802082 838695 860916R

Year : 1986-01

Manufacturer Part Number : 5326-970-6094 53269706094 5326-988-6016 5326 988 6016 53269886018 5326-988-6094 5326 988 6094

Applications : 1986-01 Volvo Penta Ship with TAMD31, TMD31 Engine

标签 : TAMD31,TMD31

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 53269886094

Previous Version 5326-988-6016 5326 988 6016 53269886018 5326-988-6094 5326 988 6094

OE number 3581528 3802082 838695 860916R

Year 1986-01

Description Ship

Model AD31L-A, AD31P-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD AD 31 P-A

Manufacturer Part Number 5326-970-6094 53269706094

CHRA 53267100068 (5326-710-0068) $888.77 NEW IN STOCK

Turbo Model K26-2960MXA6.71GAAXB

Engine TAMD31 TMD31

Displacement 2.4L, 2400 ccm, 4 Cylinders

KW 80/109

RPM Max 3600

Angle α (compressor housing) 43°

Angle β (turbine housing) 315°

Bearing Housing 53241500004 (858705)(Oil Cooled) $150.34 NEW IN STOCK

Turbine Wheel 53261205001 (53261202124, 53261205014)(Ind. 54.5 mm, Exd. 64.3 mm, 12 Blades)(1301026436, 201100002) $223.36 NEW IN STOCK

Comp. Wheel 53271232228 (53271232036, 53271232218)(858708)Ind. 44.3 mm, Exd. 78.88 mm, Trm 3.40, 7+7 Blades, Superback) $137.67 NEW IN STOCK

Back plate 53271516700 (53271516705)(1300016051) $21.15 NEW IN STOCK

Heat shield Number 53261652005 (53261652007)(858668) $22.75 NEW IN STOCK

Repair Kit 53267110039 (53267110001, 53267110023, 53277110023, 53277110053, 53277110055)(3827366)(1301026752, 5000040117B) $86.00 NEW IN STOCK

Turbine housing (water-cooled) 53261006420/53261006431 $777.16

Compressor Cover 53271015227/53271015107

Turbine Housing AR 6

Gasket (turbine inlet) 210294 (Inox Steel) $89.00

Gasket oil inlet 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48

Gasket (oil outlet) 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 201048, 311585, 3709738, 3500682, 1S4810, 9988, 9738, 3519763, 210018-0000)(Paper)(1900000025) $4.48

Manufacturer Borg Warner - 3K - Schwitzer

Interchangeable with 53269886016, Regenerated 53269806094R

Applications

1986-01 Volvo Penta Ship with TAMD31, TMD31 Engine
