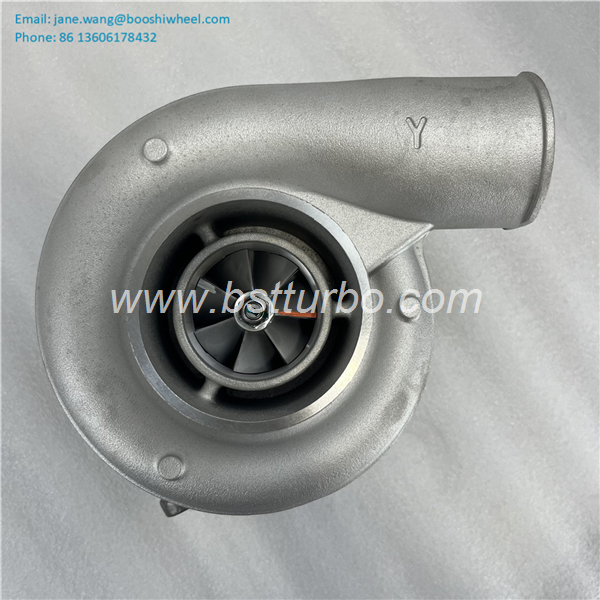

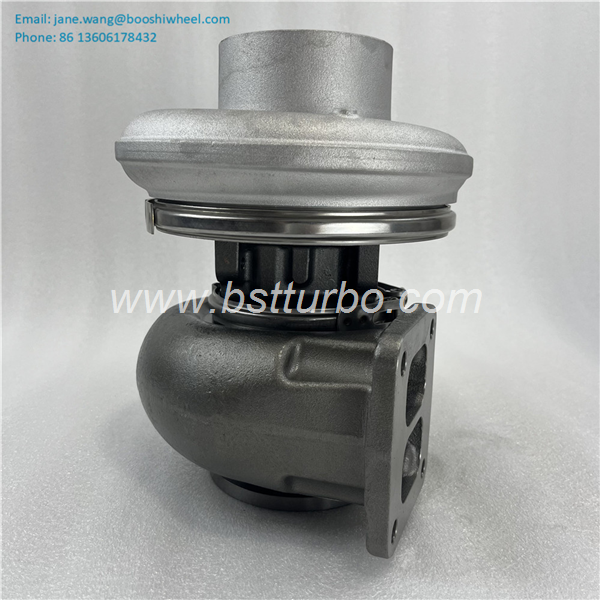

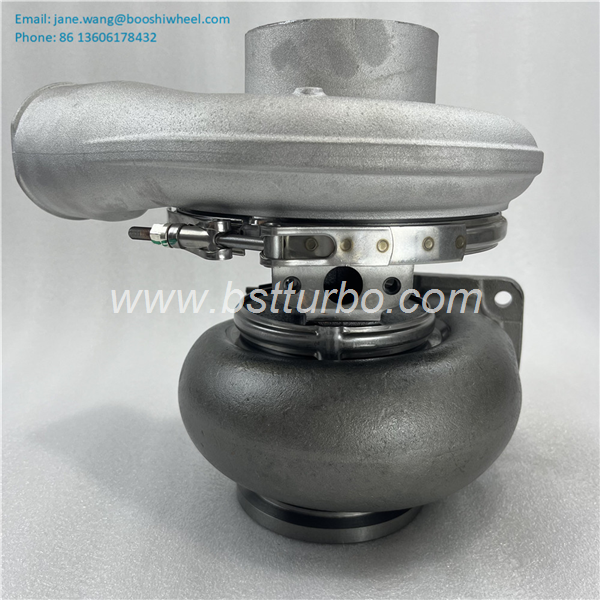

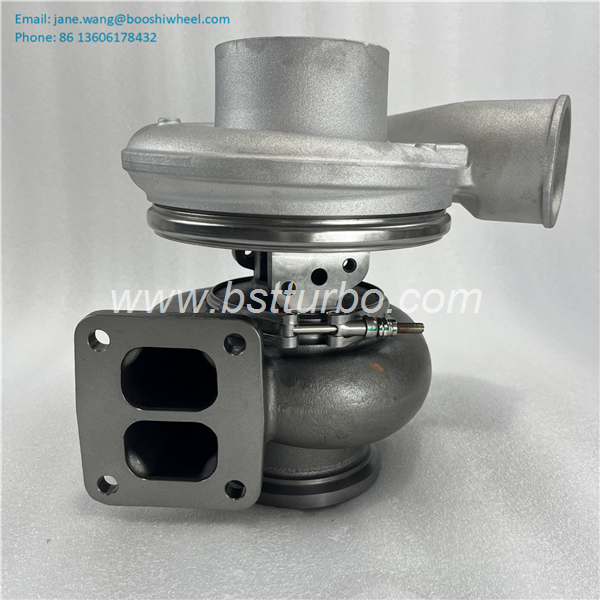

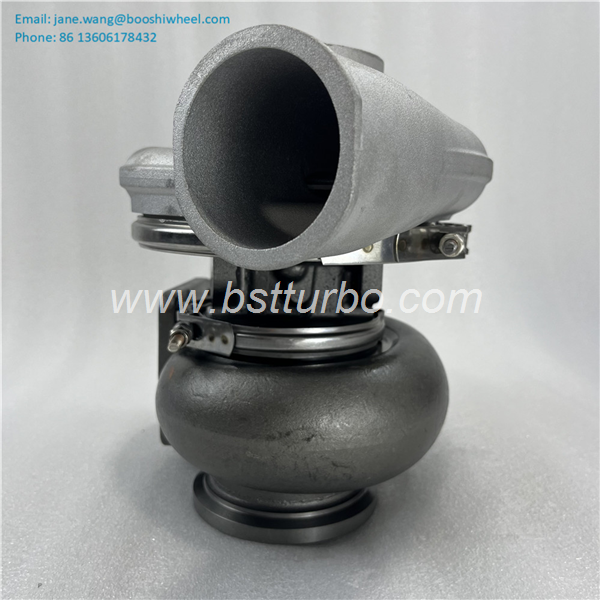

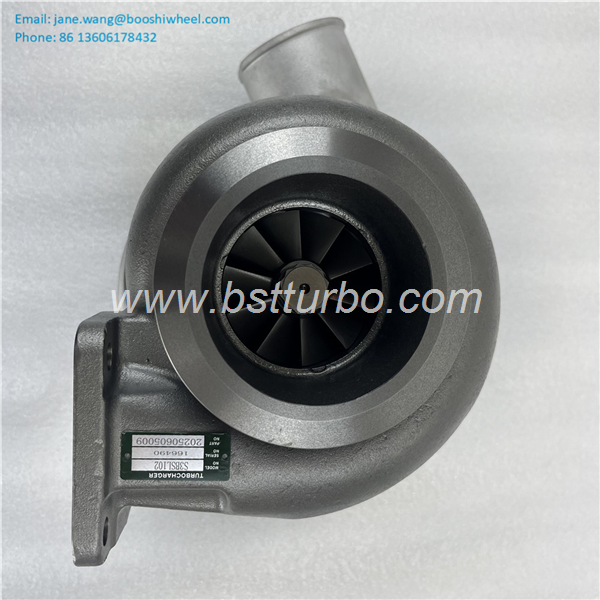

S3BSL102 166490 167720 467366 467720 479571Turbocharger Fits for Caterpillar Industrial Truck Earth Moving 3176 3176B Engine 1080046R 1080073R

Product description:

Turbo Model : S3BSL102 S3BSL-102

Fuel : DIESEL

Part Number : 166490 166490R, 167366, 167366R, 167720, 167720R, 179571, 179571R, 466490, 467366, 467720, 479571

Brand Name : Booshiwheel

Engine Manufacturer : 3176, 3176B

OE number : 0R6686, 0R6875, 101-1684, 1011684, 1080046R, 1080073R, 113-1709, 1131709, 118-3370, 1183370, 166490

Year : 1995-

Applications : 1995- turbocharger for Caterpillar truck, Earth Moving with 3176, 3176B Engine

标签 : Turbo

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	166490
Previous Part Number	166490R, 167366, 167366R, 167720, 167720R, 179571, 179571R, 466490, 467366, 467720, 479571
OE number	0R6686, 0R6875, 101-1684, 1011684, 1080046R, 1080073R, 113-1709, 1131709, 118-3370, 1183370, 166490
Description	Industrial Engine, Truck, Freightliner, Load, Haul, Dump Truck, Earth Moving
CHRA	178251 (166494, 166494R, 466494, 478251)(0R6685)
Turbo Model	S3BSL102, S3BSL-102
Engine	3176, 3176B
Prefix	7LG, 3LZ, 3NL, 9CK, 4LZ, 8XZ
Fuel	Diesel
Industrial Engine	3176B
Load, Haul, Dump Truck	R1700 II
Truck Engine	3176, 3176B
S/N	7LG16024-UP, 9CK1-32765, 3NL297-UP, 4LZ0148 & UP, 4LZ00148 & UP, 7LG07500-UP, 9CK00001-UP, 3NL00001-UP, 4LZ00001-UP
Bearing Housing	199101 (4P9804)(Oil Cooled)
Turbine Wheel	166493 (Ind. 76.20 mm, Exd. 68.68 mm, Trm 10.03, 10 Blades)
Comp. Wheel	199097 (167370, 170007, 470008)(Ind. 60.60 mm, Exd. 86.41 mm, Trm 7.87, 7+7 Blades, Superback)(1200016469)
Back plate	199646
Heat shield Number	197394 (315964, 317590)(2030016077)
Repair Kit	318389 (166138)(1252203750, 5000030019)
Turbine Housing	166492 (1021720)
Compressor Cover	199098 (4P2875)
Gasket (turbine inlet)	1P0451

Application

1995- turbocharger for Caterpillar truck, Earth Moving with 3176, 3176B Engine
