TD03L4 49131-05400 6C1Q6K682DE turbo for Ford

Product description:

Turbo Model : TD03L4

Fuel : Gasoline

Part Number : 49131-05400 49131-58650

Brand Name : Booshiwheel

Displacement : 3.3L, 3300 ccm

KW : 115HP 85KW - 100HP 75KW

RPM Max : 160000

OE number : 6C1Q6K682DE 6C1Q6K682DF

Applications : For Ford Transit

  TD03L4 49131-05400  6C1Q6K682DE turbo for  Ford



product describtion

Type Turbocharger
Model no.: TD03L4
Part No.: 49131-05400 49131-05403 49131-58650
Comparison No.(OEM):

6C1Q6K682DE 6C1Q6K682DF
Application For Ford Transit
Engine 2.4TDCI
Power 115HP 85KW - 100HP 75KW
Net.Weight 4.6KG
Shaft wheel Material 42CrMoA
Turbine wheel Blade Material K418,included 75% nickel
Compressor wheel Material C355
Bearing Housing Material HT200
Turbine Housing Material  nodular cast iron
Compressor Housing Material ZL101A
Journal Bearing Material QSN7-7-3
Certificate TS16949/CE





Product show

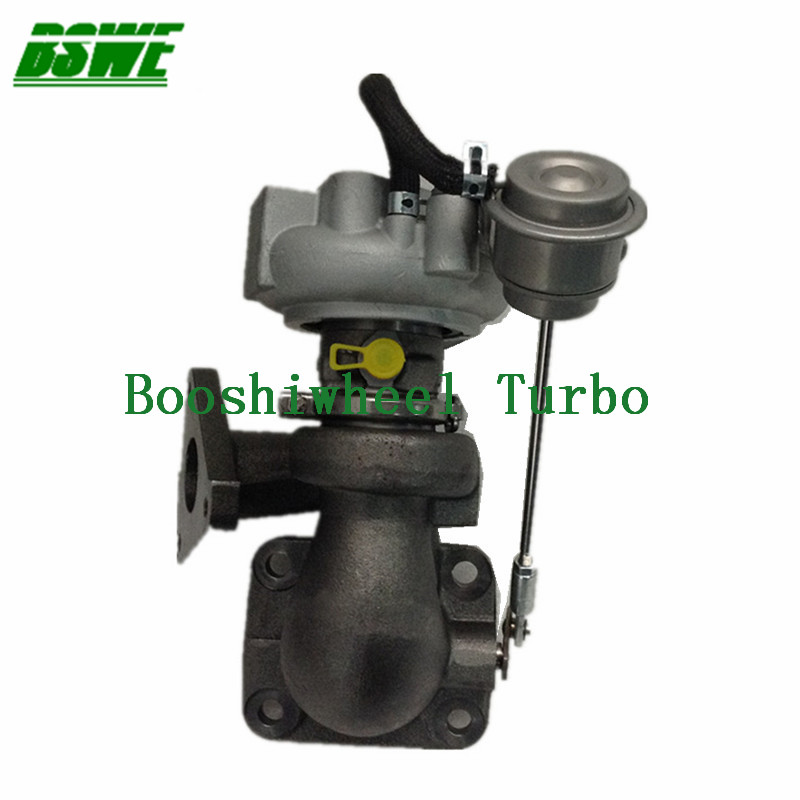

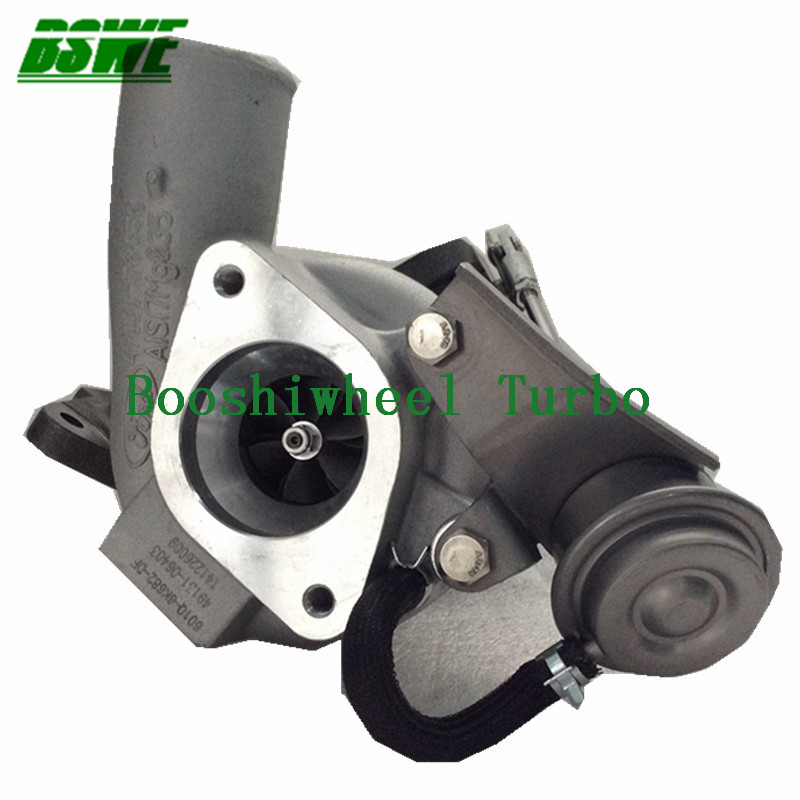

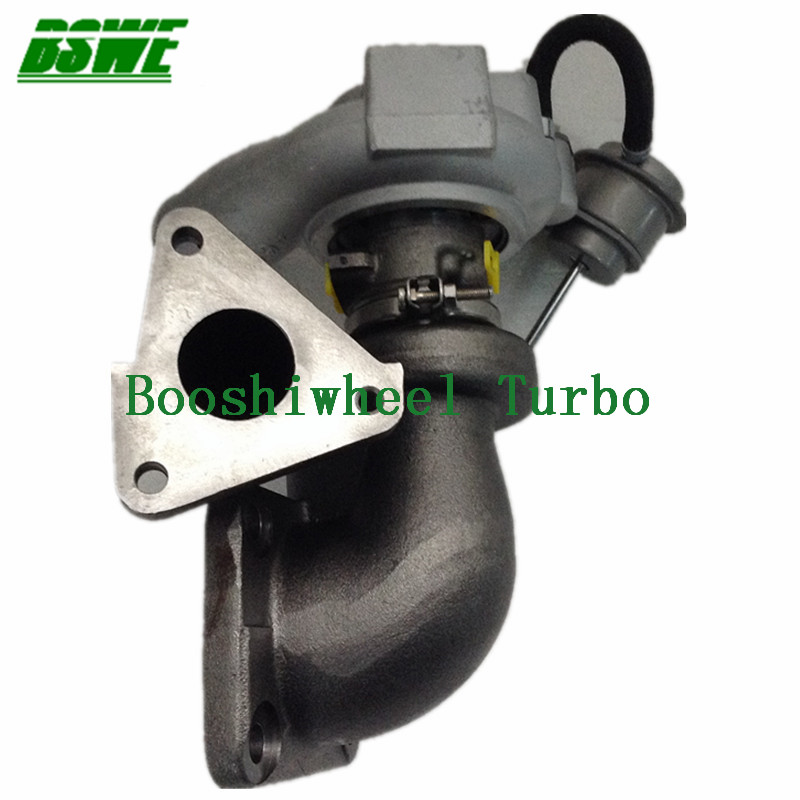

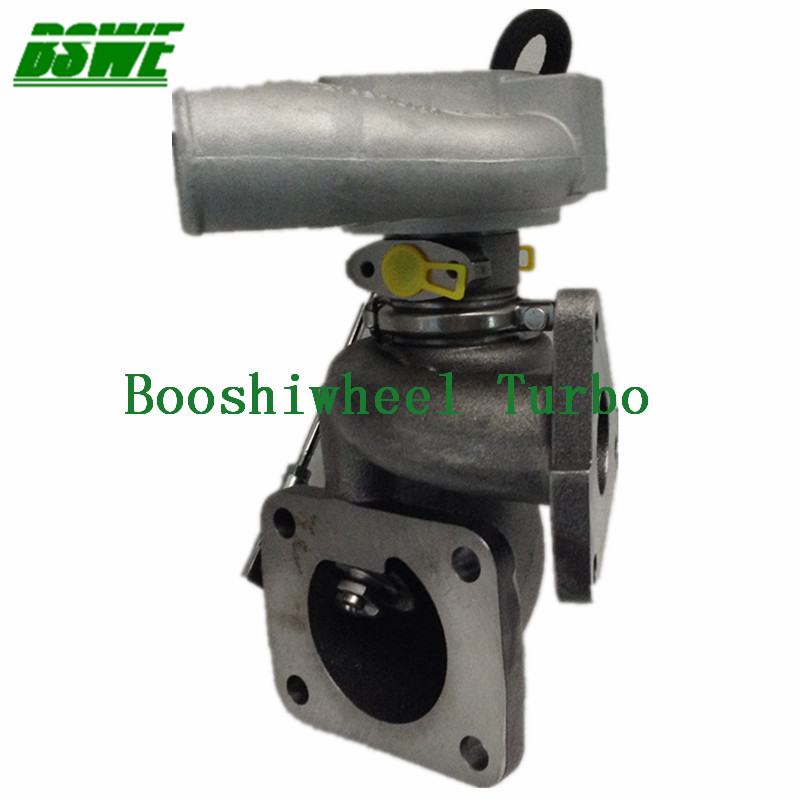

IMG_1972 (2).jpgIMG_1971 (2).jpgIMG_1968 (3).jpg6C1Q 6K682 DF (2).jpg
