  • TL81 turbo 465338-0002

TL81 turbo 465338-0002 0R5849 4P8576 245 Excavator Earth Moving 3412 Engine

Product description:

Turbo Model : 465338-0002

Fuel : Diesel

Part Number : 465338-0002, 465338-0003, 465338-0006, 465338-0007, 465338-0012, 183972, 183973, 465338-9002, 465338-2

Brand Name : Booshiwheel

Engine Manufacturer : V12 Cylinders

Displacement : V12 Cylinders

OE number : 0R5849, 1N3579 1N3580, 8N9656, 8N9657, 9Y0619, 9Y-0619

Applications : Caterpillar

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432    Skype : jane.wang_15

QQ: 1127776325

Products description





Part Number 465338-5002S
Previous Part Number 465338-0002, 465338-0003, 465338-0006, 465338-0007, 465338-0012, 183972, 183973, 465338-9002, 465338-2
OE Number 0R5849, 1N3579 1N3580, 8N9656, 8N9657, 9Y0619, 9Y-0619
Description Earth Moving 245 Excavator, D10-Tractor
CHRA 447112-0002 (447112-5002S, 409844-0001)(0R5921, 8N9685) $1,346.86 IN STOCK
Turbo Model TL8112
Engine Model 3412, 3406
Engine Manufacturer Caterpillar
Fuel Diesel
Displacement V12 Cylinders
Machine Engine D348
Tract-Type Tractor 10C, 10S, 10U, 10, D10
Bearing Housing 447159-0001 (0R5775, 7E9493, 7N8188)(Water Cooled) $734.31 NEW IN STOCK
Turbine Wheel 408492-0022 (6N4606, 101081436)(408492-0012, 408492-0016, 408492-0023)(Ind. 111.4 mm, Exd. 87.73 mm, Trm 13.97, 11 Blades) $209.00 NEW IN STOCK
Comp. Wheel 409132-0003 (409132-0004)(9N3674)(Ind. 79.8 mm, Exd. 108. mm, Trm 9., 6+6 Blades, Superback)(1200016471) $92.80 NEW IN STOCK
Back plate 408487-0013 (6N7962)(1300016142) $135.20 NEW IN STOCK
Heatshield Number 441096-0001 (2030016145) $19.96 NEW IN STOCK
Repair Kit 468103-0000 (3545824)(5000010008) $87.20 NEW IN STOCK
Turbine Housing 441507-0022 (8N9655)
Compressor Cover 447209-0021
Turbine Housing AR 1.08
Gasket (turbine inlet) 132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000)(1900000003)(417382 Replaced by 470939, 20784537) $13.20
Gasket oil inlet 210161 (Paper) $2.00
Gasket (oil outlet) 210172 (Paper) $2.00
Gasket (water inlet and outlet) 210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496)(1900000027)(Paper) $4.48
NOTE Restricted to Caterpillar R.H, L.H
Manufacturer Honeywell-Garrett

Replaces 465338-0003, 465338-0006, 465338-0007











Applications



                                                                                                                                                              Caterpillar 245 Excavator Earth Moving with 3412 Engine

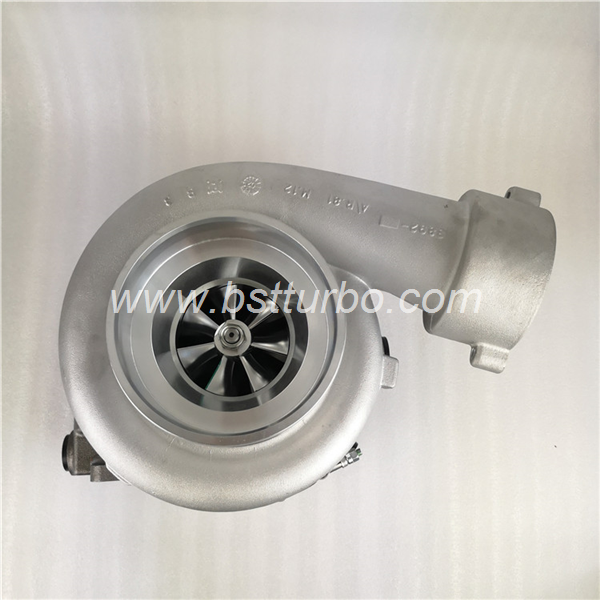

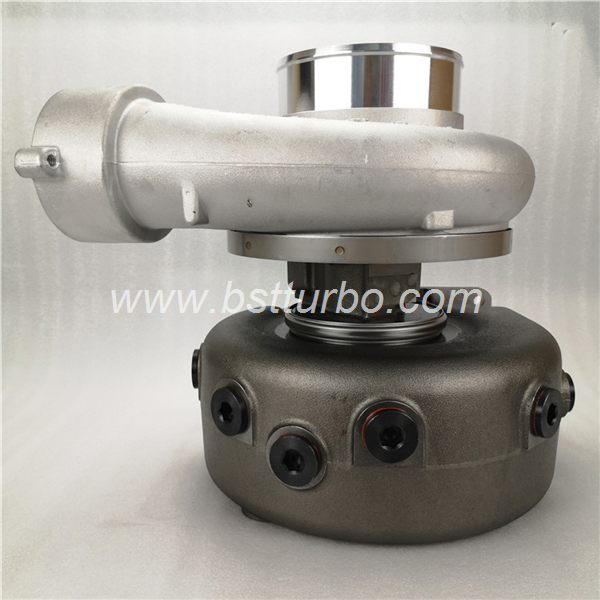

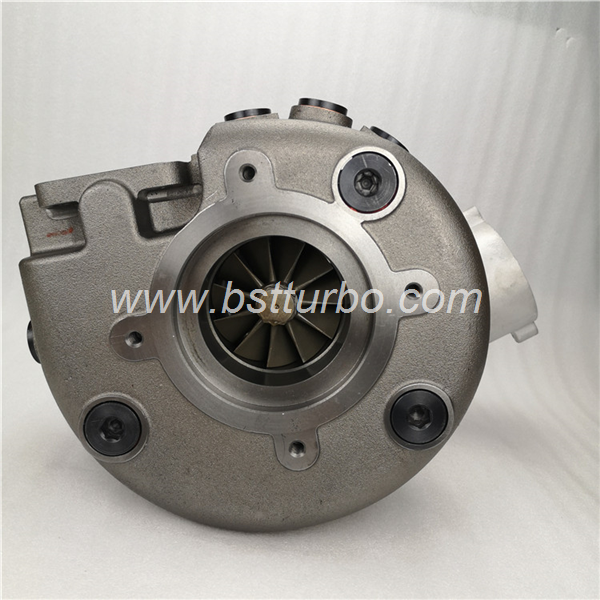

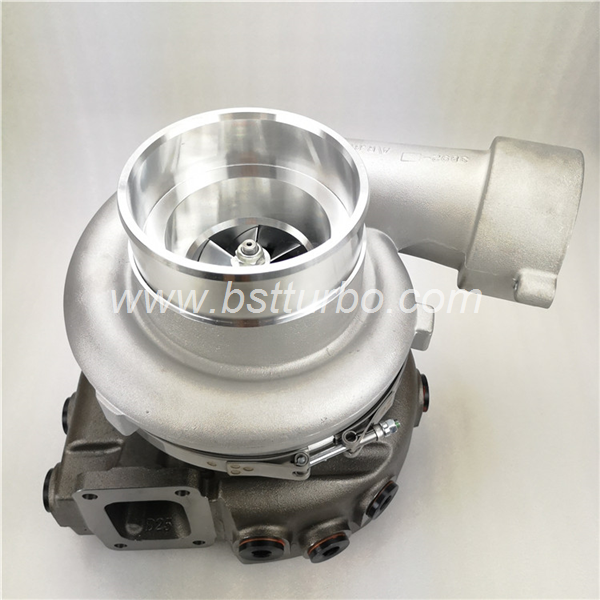

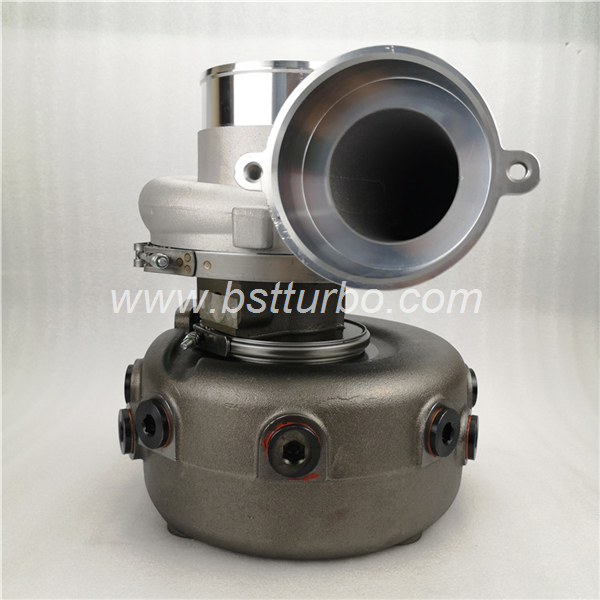

Products Show
