GT604102BL turbocharger 709265-5005S 305-2681 20R-1977 0R7430 175-5208 1755208 3052681 Truck TGA 510 with D2876LF Euro-3

Product description:

Turbo Model : GT604102BL

Fuel : Diesel

Part Number : 709265-5005S

Brand Name : Booshiwheel

KW : 390/530

RPM Max : 1900

OE number : 305-2681, 20R-1977, 0R7430, 175-5208, 1755208,

Year : 2000-11

Applications : Caterpillar Mining, Off-Highway Truck With 3512, 3512B Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Products description

Part Number	709265-5005S
Previous Part Number	709265-9005S, 709265-0005, 709265-5
OE number	305-2681, 20R-1977, 0R7430, 175-5208, 1755208, 3052681
Description	Machines Engine, Mining, Off-Highway Truck
CHRA	452705-0031 (180-5433, 0R7189)
Turbo Model	GT6041BL, GT604102BL
Engine	3512
Engine Model	CAT 785C
Fuel	Diesel
Machines Engine	3512, 3512B
Off-Highway Truck	785C, 784C, 785C, 777D, 785B, 777DHAA
S/N	S/N 8BR1-UP, 8BR614-UP, 6HK00001-UP, 1HW00001-UP, 2PZ00001-UP, AGY00001-UP, APX00001-UP
Bearing Housing	451488-0001 $1,421.94 NEW IN STOCK
Turbine Wheel	451447-0001 (Ind. 68. mm, Exd. 57.7 mm, 12 Blades) $1,370.60 NEW IN STOCK
Comp. Wheel	452702-0009 (Ind. 97.8 mm, Exd. 141.28 mm, 6+6 Blades) $481.18 NEW IN STOCK
Back plate	452703-0001
Repair Kit	705731-0001 $184.10 NEW IN STOCK
Turbine Housing	441319-0092 (1692570) $1495.52
Compressor Cover	(1783655) $1221.58
Gasket (turbine inlet)	409038-0001 (1215736, 7M7273) $13.20
NOTE	Partially restricted, Mining truck CAT 785C
Manufacturer	Honeywell-Garrett

Applications

Caterpillar Mining, Off-Highway Truck With 3512, 3512B Engine

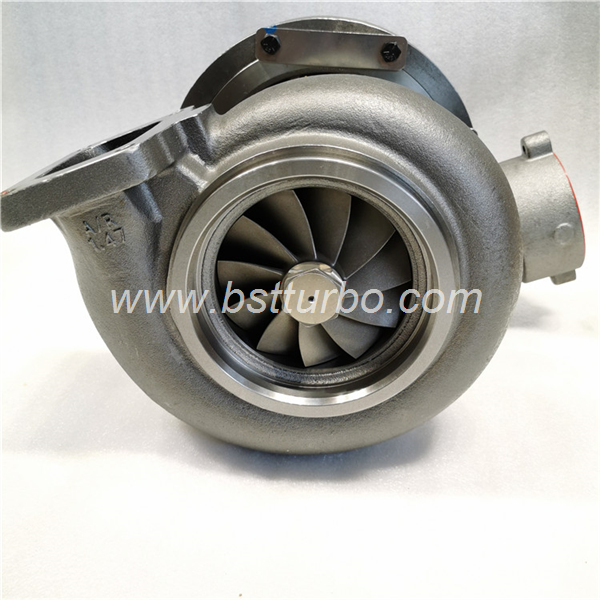

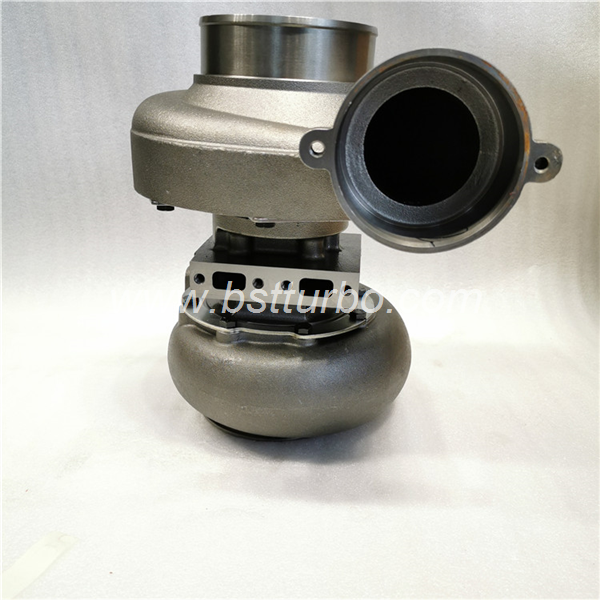

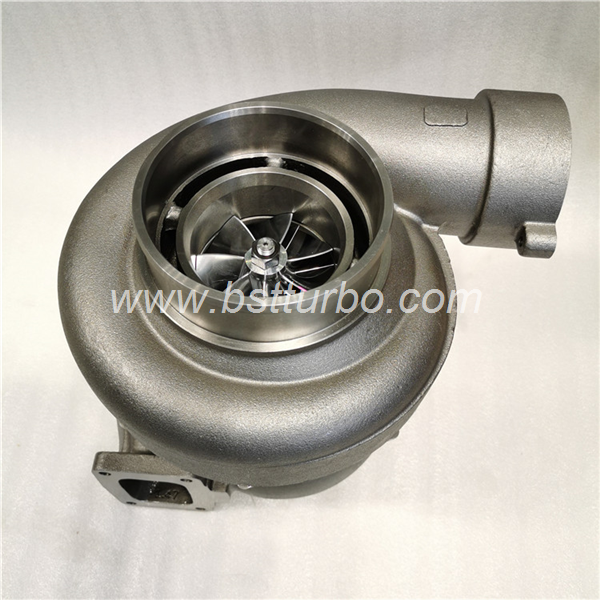

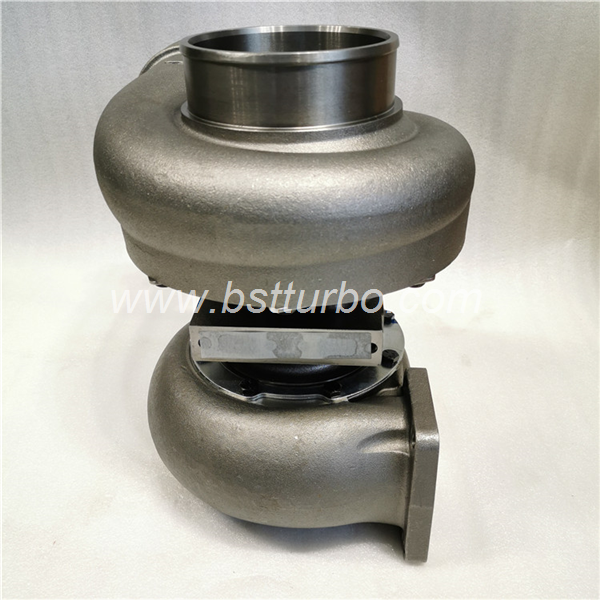

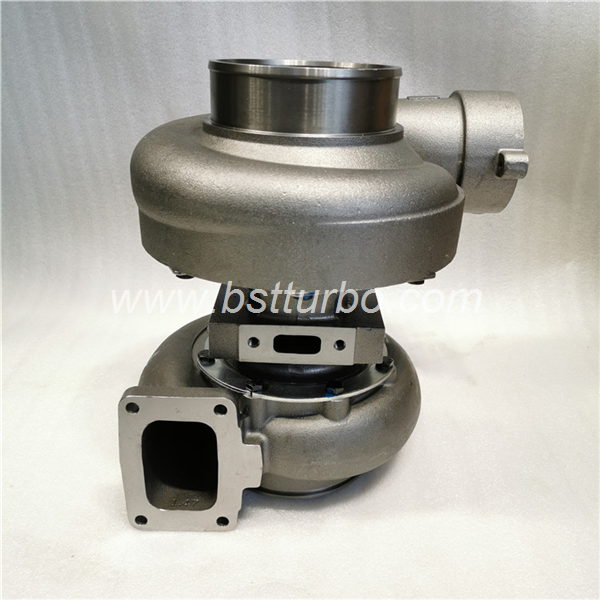

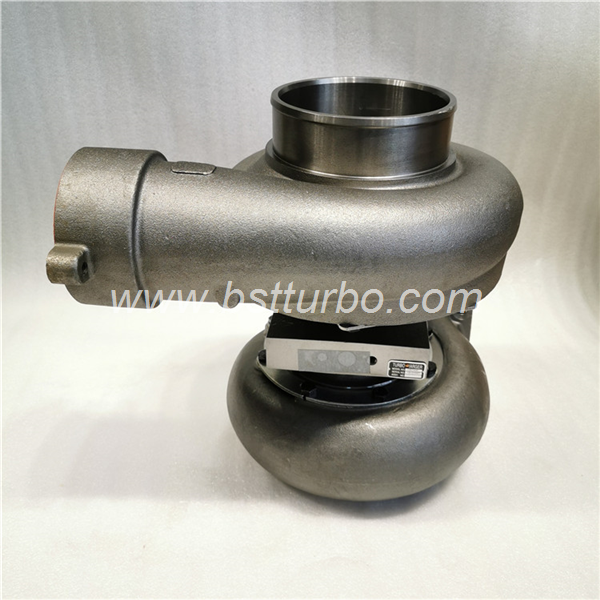

Products Show

3052681 (6).jpg 3052681 (5).jpg 3052681 (4).jpg 3052681 (3).jpg 3052681 (2).jpg 3052681 (1).jpg
