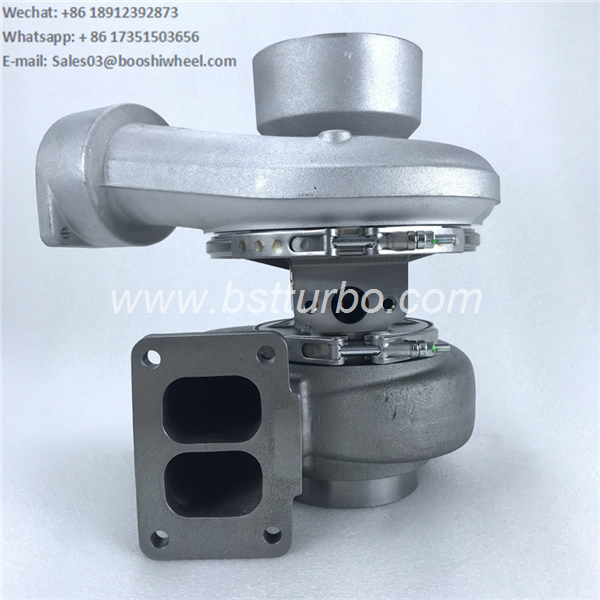

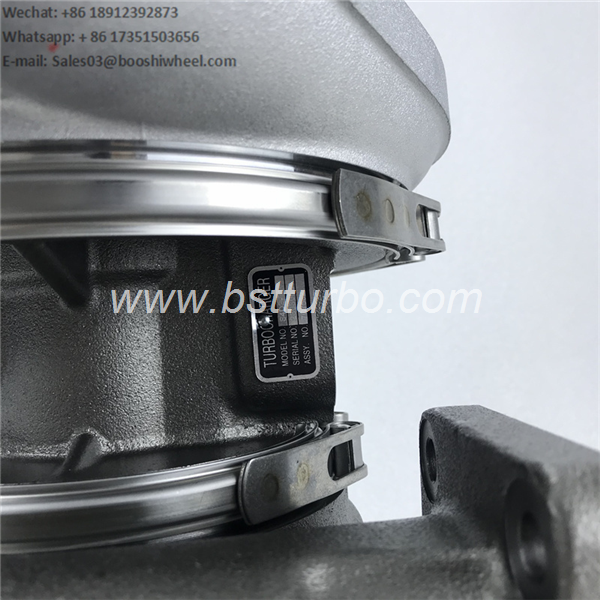

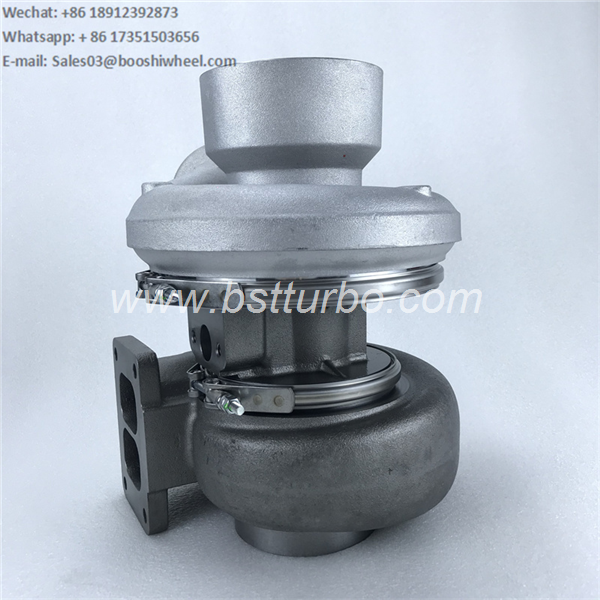

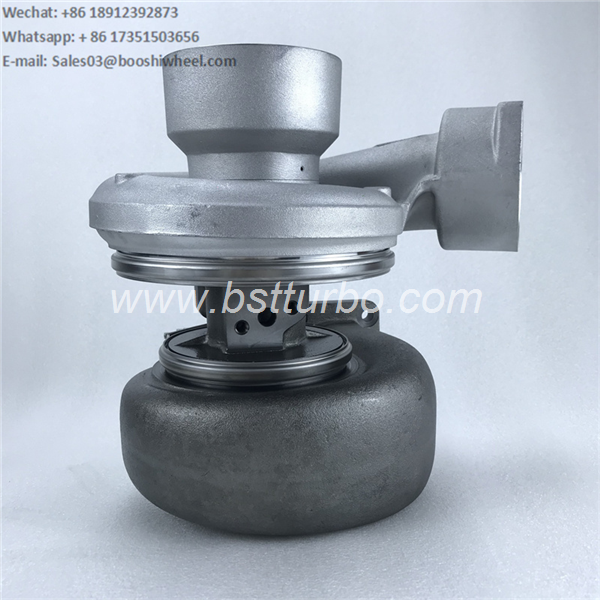

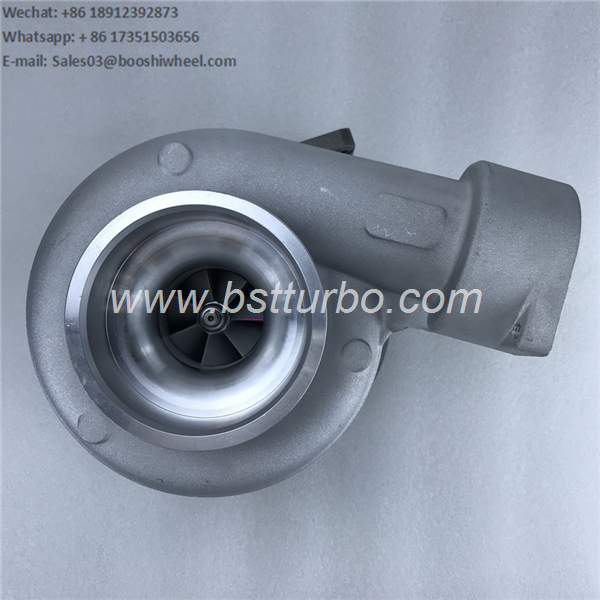

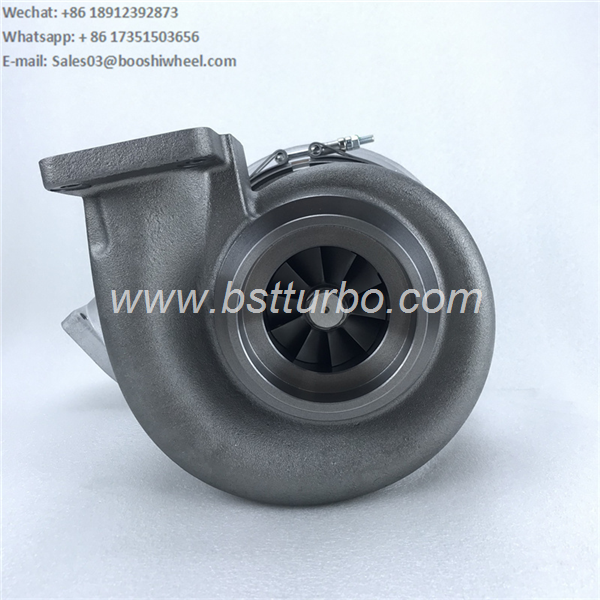

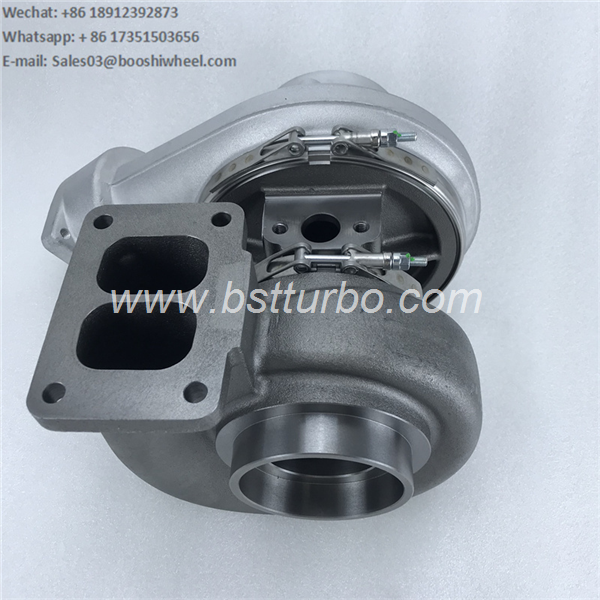

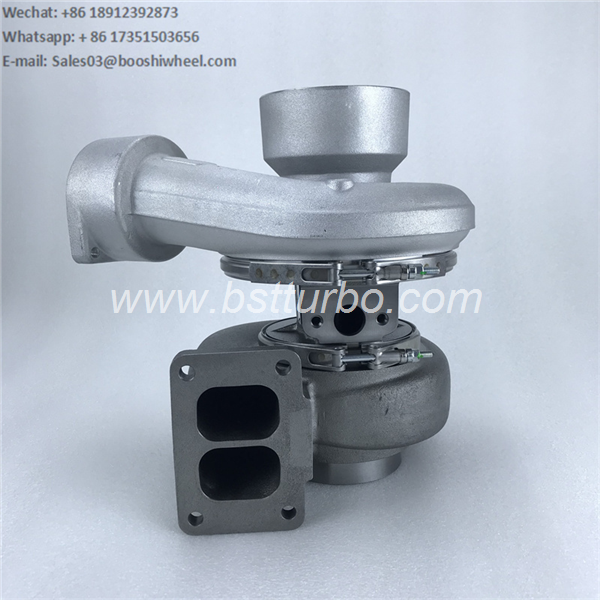

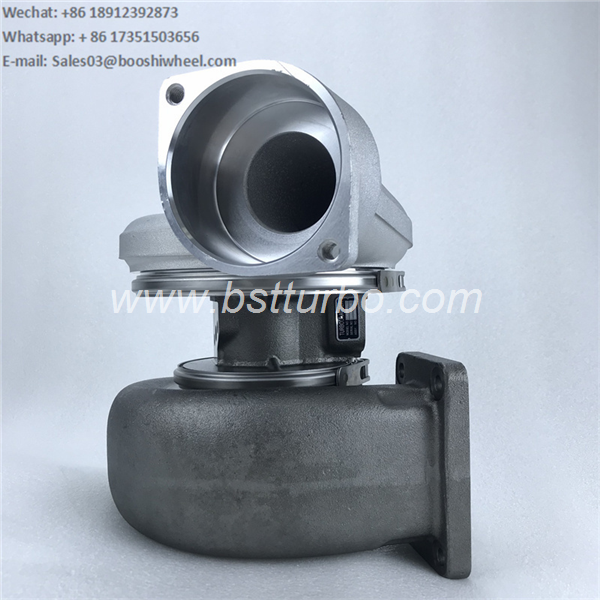

New turbocharger S4DS-010 313272 196550 196552 7C7582 7C-7582 turbo for Caterpillar Industrial 3306 Diesel Engine

Product description:

Turbo Model : S4DS-010

Fuel : Diesel

Part Number : 313272

Brand Name : Booshiwheel

OE number : 7C7582 7C-7582

Year : 1987-02

Applications : 1987-02 Caterpillar Industrial Engine with engine 3306B

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	313272
Previous Part Number	196550, 196552
OE number	7C7582, 7C-7582
Description	Industrial Earth Moving
CHRA	196538 (178223, 7C7598, 0R5722) $846.51 NEW IN STOCK
Turbo Model	S4DS-010
Prefix	4MG, 5KJ, 7FB
Engine	3306
Fuel	Diesel
Industrial Engine	3306, 3306B
Machine Engine	3306
Articulated Dump Truck	D25D, D300D, D30D, D350D
S/N	7JB2391-UP, 64Z5677-UP
Bearing Housing	196661 (194031)(199144, 196534, 7C7611, 4P3627, 7C0067) $454.34 NEW IN STOCK
Turbine Wheel	191609 (7W8844)(Ind. 72. mm, Exd. 83.43 mm, 10 Blades) $253.12 NEW IN STOCK
Comp. Wheel	194312 (194634)(7C0639, 7W8845)(Ind. 58.94 mm, Exd. 86.40 mm, Trm 10.66, 6+6 Blades) $185.42 NEW IN STOCK $285.27 NEW IN STOCK
Back plate	197651 (51135, 142066, 5S4556, 52321523000, 52321523001, 49162-22500, 1250403300, 143044-0000) $52.04 NEW IN STOCK
Heat shield Number	187517 (4W7355) $96.99 NEW IN STOCK
Repair Kit	318405 (318409)(311144) $123.00 NEW IN STOCK
Turbine Housing	194896 (7C2999) $598.01
Compressor Cover	194311 (7W8842) $496.94
Turbine Housing AR	1.58
Gasket (turbine inlet)	409038-0000 (9749, 1S4295, 202873, 205396, 3500683, 132040, 210017-0000)(1900000003) $13.20
Gasket (oil outlet)	129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) $4.38
Gasket (oil inlet)	210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38
Manufacturer	Borg Warner - 3K - Schwitzer

Applications：

1987-02 Caterpillar Industrial Engine with engine 3306B
