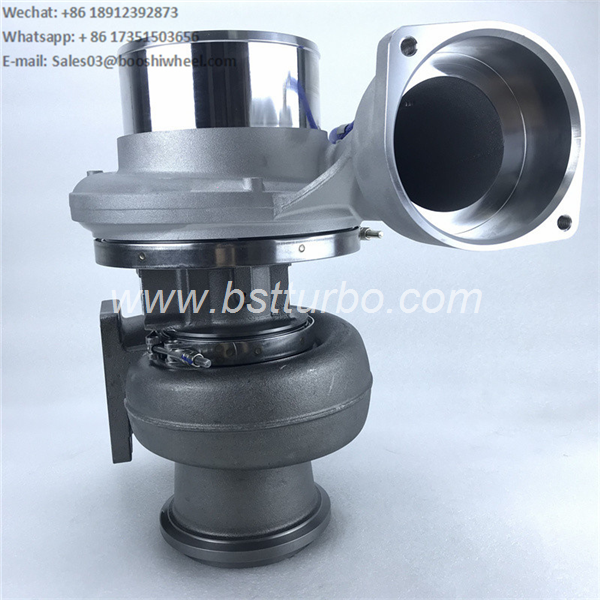

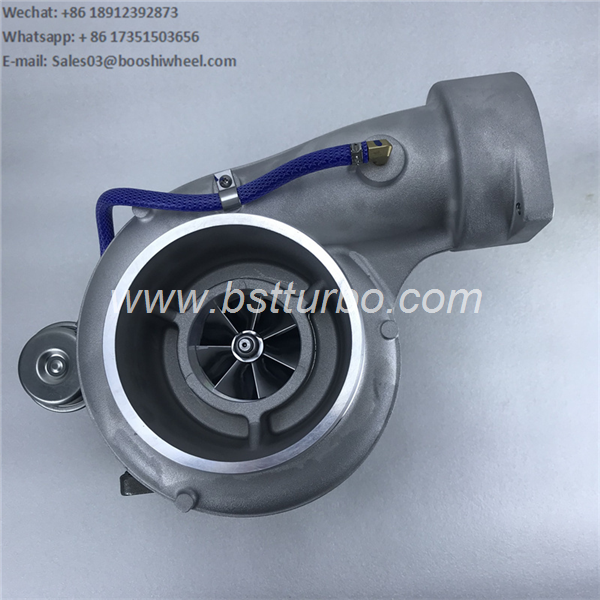

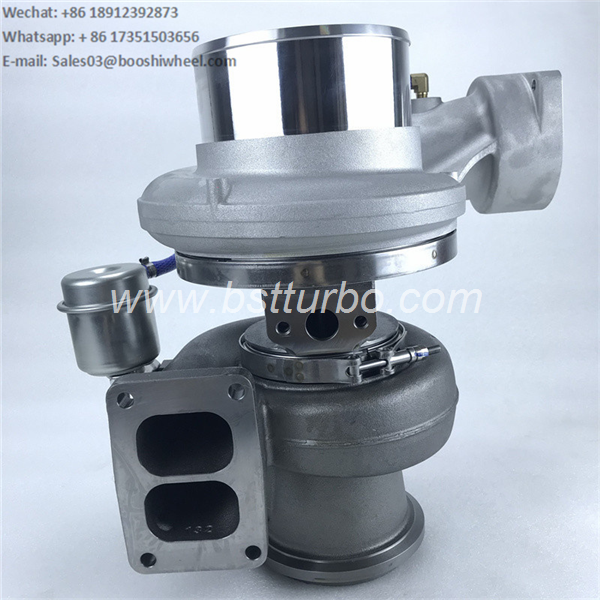

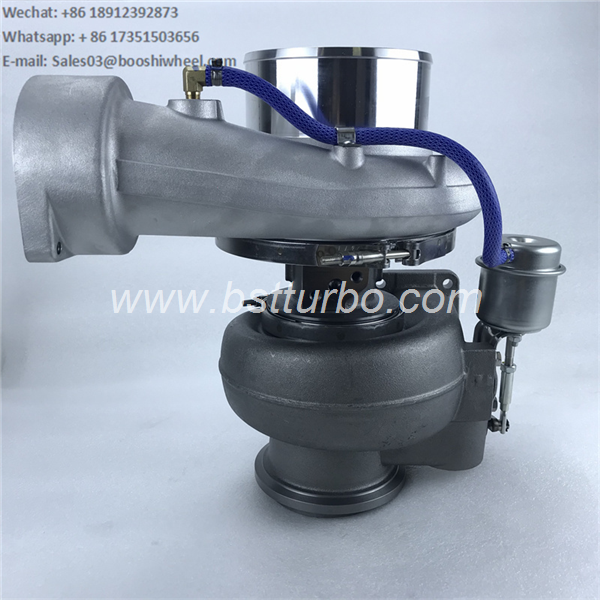

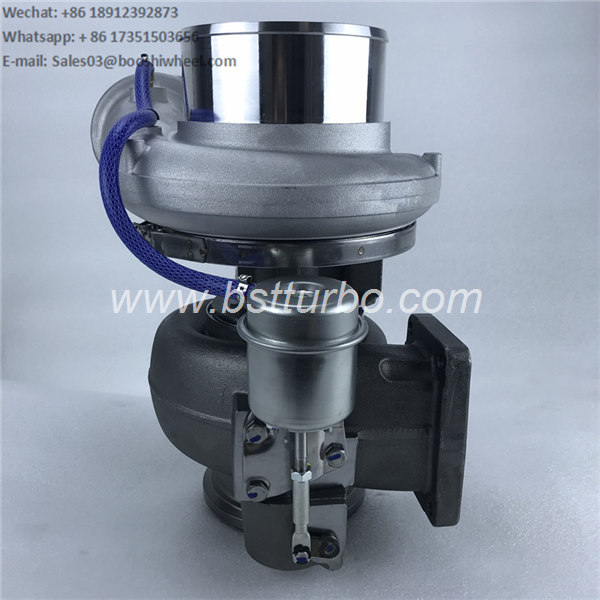

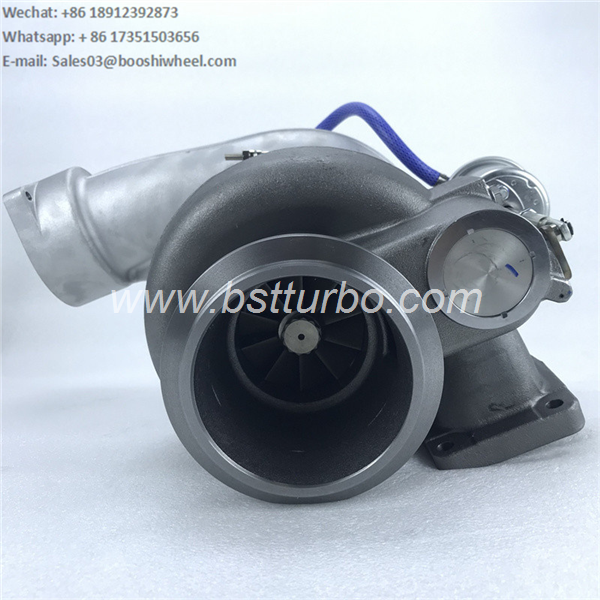

S410G Turbo 177148 0R7310 169227 471142-5005 0R7923 137-4832 1679271 turbocharger for Caterpillar Truck 3406E 3406C C16 C15 Engine

Product description:

Turbo Model : S410G 177148

Fuel : Diesel

Part Number : 177148

Brand Name : Booshiwheel

Displacement : 14.64L, 14640 ccm

KW : 317/404/550/355/475 HP

RPM Max : 1800

OE number : 0R7310, 0R7923, 1080004R, 160-6201, 1606201, 167-9271, 1679271

Year : 1994-07

Applications : 1994-07 Caterpillar Engine Truck 3406E, 3406C, C16 Engine

标签 : Turbocharger

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	177148
Previous Version	169227, 170354, 704604-0007, 466445-0018, 466445-0023, 466445-9023, 471142-0005, 471142-9005, 471142-0003, 466445-0015, 466445-0021, 466445-9021, 471142-5005
OE number	0R7310, 0R7923, 1080004R, 160-6201, 1606201, 167-9271, 1679271, 177148, 177148R, 196-5951, 1965951, 477148, 0R7152, 0R6989, 0R7203, 0R7223, 0R6986, 0R7201, 0R7299, 166-6752, 141-8937, 124-3032, 136-6390, 146-4328, 141-8939, 124-3035, 137-4832
Description	Tractor, Truck
CHRA	174248 (169062, 161-6780, 10R-0510, 0R7287, 0R-7143, 0R7143, 136-7620, 1367620, 474248) $450.00 NEW IN STOCK, MADE IN USA
Turbo Model	S410G, GTA470201BS, GT4702, BTG7513, GT500201BS
Prefix	2WS, R1D, 6NZ, 9NZ, C2A, AKN
Engine	3406E, 3406C, C16, C-12, C-15, MT735
Displacement	14.64L, 14640 ccm
S/N	OKC150148
RPM	1800
KW	317/404/550/355/475 HP
Fuel	Diesel
Bearing Housing	174246 (Oil Cooled) $81.94 NEW IN STOCK

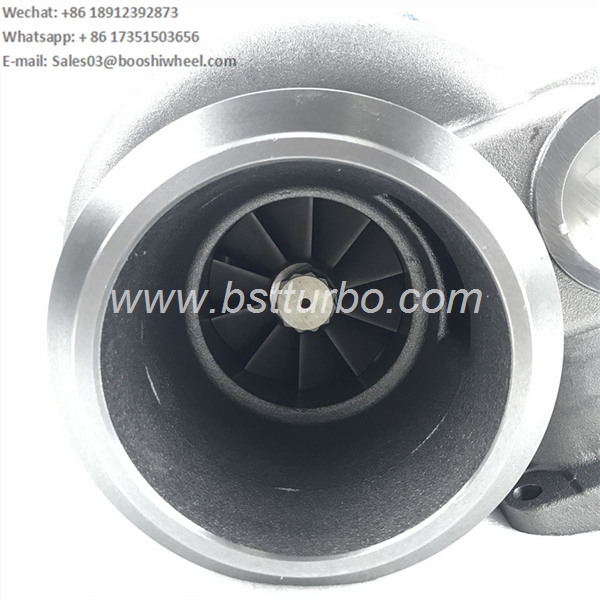

Turbine Wheel	169346 (Ind. 91.46 mm, Exd. 81.66 mm, Trm 14.4, 10 Blades) $162.00 NEW IN STOCK
Comp. Wheel (Hipped)	171691 (Ind. 74.57 mm, Exd. 105.3 mm, Trm 7.97, 7+7 Blades, Superback) $97.15 NEW IN STOCK
Back plate	167783 $43.34 NEW IN STOCK
Heat shield Number	167790 $18.78 NEW IN STOCK
Repair Kit	318396 (318397)(1253400750) $89.90 NEW IN STOCK
Turbine Housing	NEW IN STOCK
Compressor Cover
Actuator	446131-0046 $117.92
Gasket Kit	318417 $17.44
Gasket oil inlet	129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) $4.38
Gasket (oil outlet)	210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Replaced By	704604-0007 (0R7310, 1679271, 167-9271, 704604-5011 (1965951. 196-5951, 160-6201))
Manufacturer	Schwitzer, BWTS USA
Condition	NEW

Application:

1994-07 Caterpillar Engine Truck 3406E, 3406C, C16 Engine
